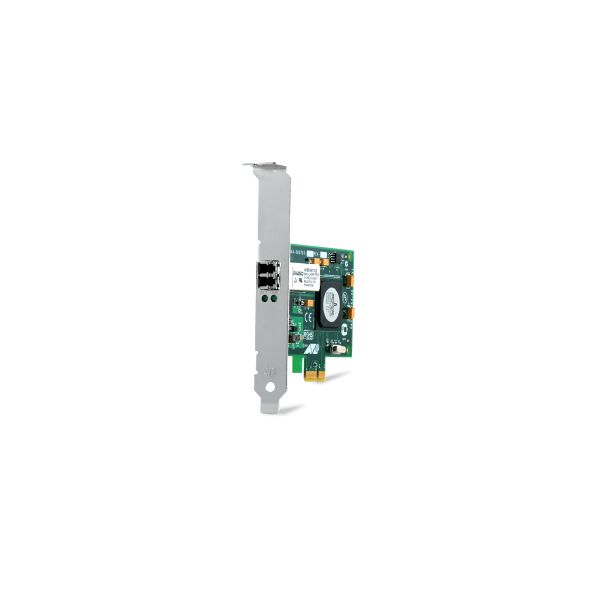

Allied Telesis 2914SP Intern Fiber 1000 Mbit/s

Allied Telesis 2914SP, Intern, Bedraad, PCI Express, Fiber, 1000 Mbit/s

Ruim op voorraad

Fabrikant Allied Telesis
MPN AT-2914SP-901
EAN 0767035210384
€ 241,00 excl. BTW

Allied Telesis 2914SP Intern Fiber 1000 Mbit/s

The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP’s. This adapter supports Wake-on-LAN without the use of an external power supply.
  • Jumbo frames up to 9.6KB
  • Smart Load Balancing (SLB) and failover
  • Link aggregation (IEEE 802.3ad)
  • Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static
  • UEFI network boot
  • Low-profile and standard height brackets included

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
1
Vezel-optische connector
SFP

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Ethernet LAN, data-overdrachtsnelheden
100,1000 Mbit/s
Wake-on-LAN
Ja
Jumbo Frames ondersteuning
Ja
Auto-negotiation
Ja
Jumbo frames
9600
Quality of Service (QoS)
Ja
Onbalanscontrolesysteem
Ja

Design

Intern*
Ja
LED-indicatoren
Ja
Certificering
UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI

Energie

Spanning
3.3 V

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows Vista
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
88 mm
Hoogte
69 mm
Gewicht
68 g

Verpakking

Aantal
1
Low-profile bracket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Datastroombeheer
Ja
Wachtrijprioriteiten ondersteund
Ja
