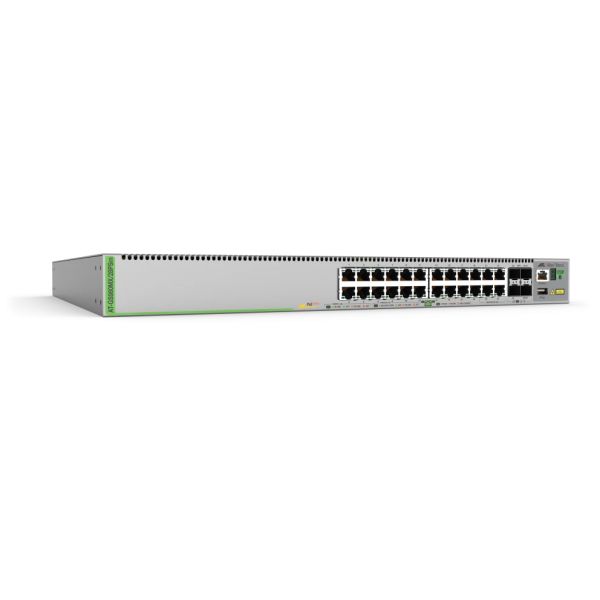

Allied Telesis AT-GS980MX/28PSM-50 netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs

Allied Telesis AT-GS980MX/28PSM-50, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Niet op voorraad

Fabrikant Allied Telesis
MPN AT-GS980MX/28PSM50
EAN 0767035212937
€ 2.207,00 excl. BTW

Allied Telesis AT-GS980MX/28PSM-50 netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs

Stackable Multi-Gigabit Layer 3 Lite Switches

The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.

- Support high-speed Wi-Fi 6 solutions, and network upgrades over legacy cabling, with 2.5G and 5G connectivity (PoE models)
- Connect and power endpoints such as IP phones, wireless APs, and more with up to 30 Watts of PoE+
- Support high-power devices such as outdoor PTZ cameras with heaters/blowers and enhanced lighting controllers, with up to 90 Watts of PoE++ (10 and 18 port models)
- Build a resilient network with the ability to stack multiple units using VCStack™
- Extend network reach in distributed environments using long-distance stacking
- Reduce costs and automate network management with Autonomous Management Framework™ Plus (AMF Plus)
  • AlliedWare Plus™ Enterprise-class operating system
  • Multi-Gigabit ports with PoE+/PoE++ for flexible endpoint connectivity
  • Continuous PoE maximizes endpoint connectivity
  • Active Fiber Monitoring™ (AFM) for secure fiber networks
  • EPSRing™ for fast-failover resilient ring networks

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic-classificatie
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
20
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal geïnstalleerde SFP+ modules*
4
Console port
USB

Netwerk

Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500,5000 Mbit/s
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
160 Gbit/s
Verzending snelheid
119 Mpps
MAC-adrestabel*
16000 entries
Aantal wachtrijen
8
Statische route
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP Option 82, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
3DES, AES, MD5, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, SSH, SSH-2, SSL/TLS
MAC adres filtering
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie, Webgebaseerde authenticatie
Algoritmen wachtrijplanning
SP, WRR+SP, Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMPv1, v2c, v3
Routing protocols
RIP, RIP-2, RIPng

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Grijs
LED-indicatoren
Ja
Certificering
EN55024 FCC Class A, EN55032 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, RCM EN55024, EN61000-3-levels 2 UL60950-1, CSA-C22.2 No. 60950-1, EN60950-1, UL62368-1 cUL, cULus

Prestatie

Physical stacking (units)
2
Type geheugen
DDR3-SDRAM
Intern geheugen
1000 MB
Flash memory
256 MB
Geluidsniveau
42 dB

Energie

Stroomverbruik (typisch)
70 W
Vermogensverbruik (max)
510 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Warmtedissipatie
1741 BTU/h

Gewicht en omvang

Breedte
441 mm
Diepte
421 mm
Hoogte
44 mm
Gewicht
5,6 kg

Verpakking

Breedte verpakking
563 mm
Diepte verpakking
534 mm
Hoogte verpakking
128 mm
Gewicht verpakking
7,6 kg

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
RoHS, TUV
