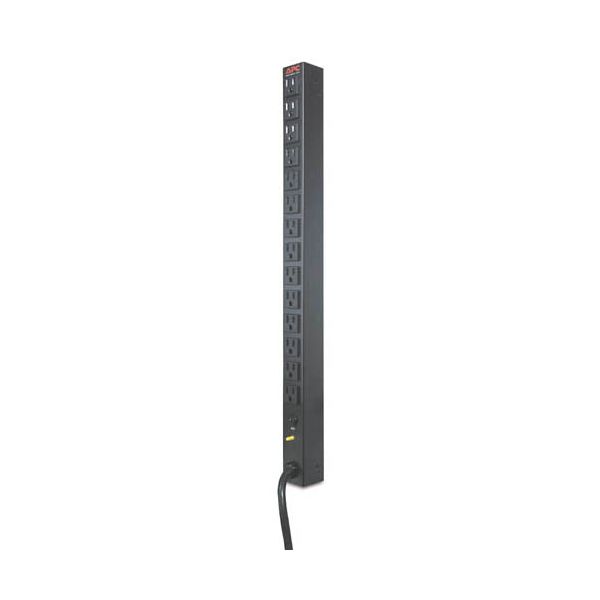

APC Rack PDU- Basic- Zero U energiedistributie Zwart
APC Rack PDU- Basic- Zero U, Zwart, NEMA L5-20P, (14) NEMA 5-15R, 3,66 m, cUL,CSA,UL 1363,UL, 120 V
Niet op voorraad
Fabrikant
APC
MPN
AP9551
EAN
0731304021247
€ 318,00
excl. BTW
€ 318,00
excl. BTW
excl. BTW
APC Rack PDU- Basic- Zero U energiedistributie Zwart
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Kleur van het product
Zwart
Poorten & interfaces
Input-connectietype
NEMA L5-20P
Output-aansluitingen
(14) NEMA 5-15R
Kenmerken
Snoerlengte
3,66 m
Certificering
cUL,CSA,UL 1363,UL
Energie
Nominale input voltage*
120 V
AC-ingangsfrequentie
50 - 60 Hz
Netspanning, in bedrijf
120 V
Laad-capaciteit
2400 VA
Energie
Maximale ingang stroom per fase
20 A
Maximum totaalstroomverbruik per fase
20 A
Gewicht en omvang
Afmetingen (B x D x H)
44 x 44 x 620 mm
Gewicht
2,19 kg
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-25 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
