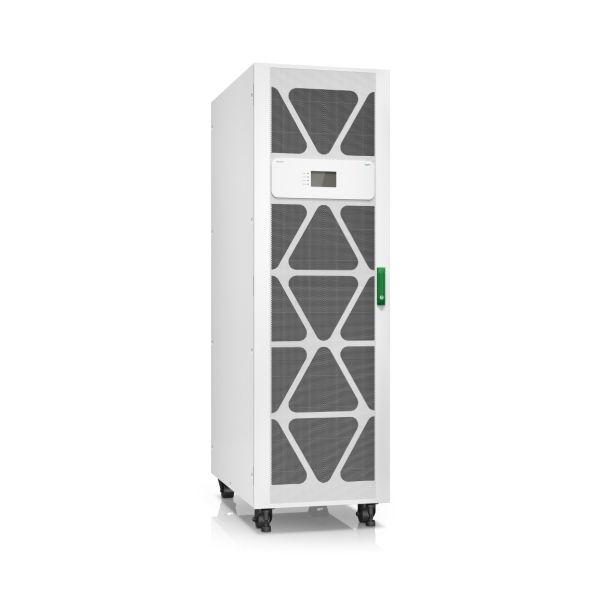

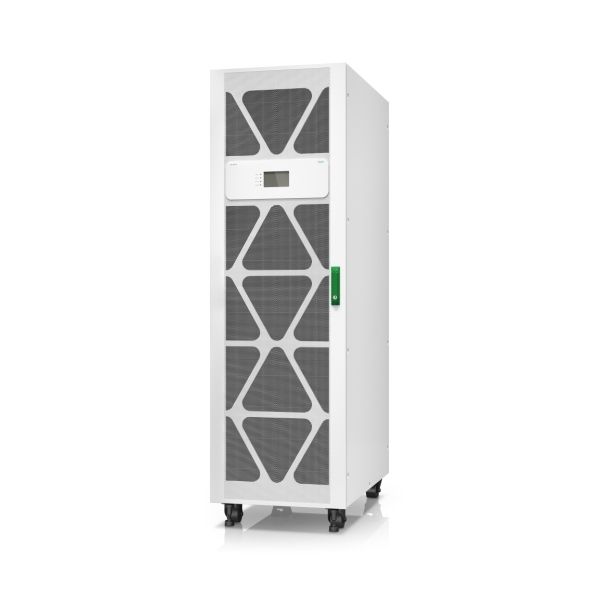

APC E3MUPS80KHBS UPS Dubbele conversie (online) 80 kVA 80000 W

APC E3MUPS80KHBS, Dubbele conversie (online), 80 kVA, 80000 W, Sinus, 342 V, 477 V

Niet op voorraad

Fabrikant APC
MPN E3MUPS80KHBS
EAN 0731304363293
€ 12.739,00 excl. BTW

APC E3MUPS80KHBS UPS Dubbele conversie (online) 80 kVA 80000 W

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5x8 start-up service.

Replaceable dust filters
protect the UPS in harsh environments.

Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
80 kVA
Uitgangsvermogen*
80000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
342 V
Ingang operation voltage (max)*
477 V
Frequentie*
40 - 70 Hz
Uitgang operation voltage (min)
380 V
Uitgang operation voltage (max)
415 V
Output frequentie
50/60 Hz
Stroom (max.)
146 A
Aantal input fases
3
Aantal output fases
3
Power factor
0,99
Spanningsbeveiliging
Ja
Geluidsalarm(en)
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
240 V

Design

Vormfactor*
Tower
Kleur van het product*
Wit
Type beeldscherm
LCD
Internationale veiligheidscode (IP)
IP20

Design

Certificering
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 450 m
Hoogte bij opslag
0 - 4500 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
600 mm
Diepte
1000 mm
Hoogte
1970 mm
Gewicht
339 kg
Breedte verpakking
750 mm
Diepte verpakking
1125 mm
Hoogte verpakking
2102 mm
Gewicht verpakking
387 kg

Verpakking

Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
