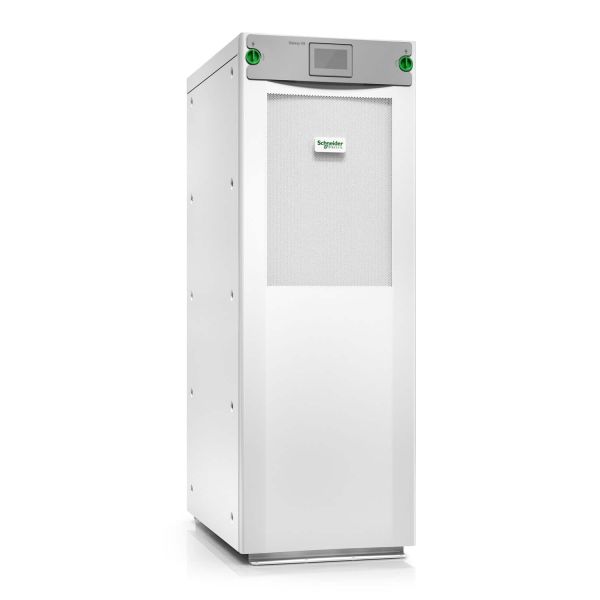

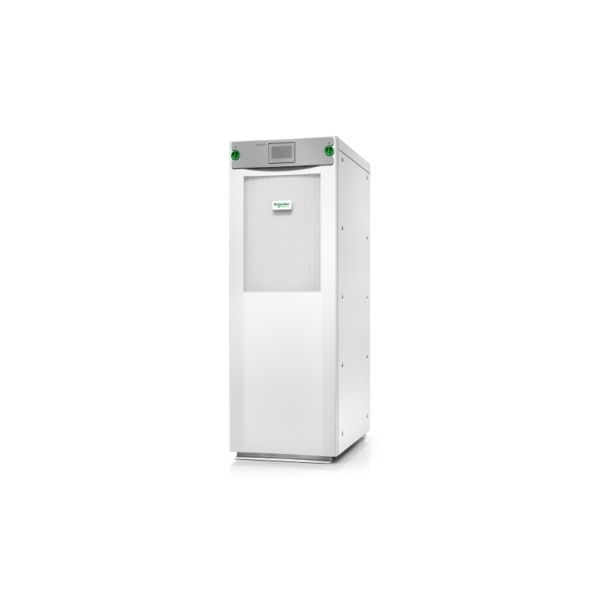

APC GVSUPS50KB4GS UPS Dubbele conversie (online) 50 kVA 50000 W

APC GVSUPS50KB4GS, Dubbele conversie (online), 50 kVA, 50000 W, Sinus, 480 V, 40/70 Hz

Niet op voorraad

Fabrikant APC
MPN GVSUPS50KB4GS
EAN 0731304641841
€ 23.339,00 excl. BTW

APC GVSUPS50KB4GS UPS Dubbele conversie (online) 50 kVA 50000 W

APC Galaxy VS UPS 50kW 480V 2 internal 9Ah t

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
50 kVA
Uitgangsvermogen*
50000 W
Golfvorm*
Sinus
Ingang operation voltage (max)*
480 V
Frequentie*
40/70 Hz
Uitgang operation voltage (max)
480 V
Output frequentie
50/60 Hz
Stroom (max.)
74 A
Warmtedissipatie
5210 BTU/h
Aantal input fases
3
Aantal output fases
3
Input vermogensfactor
0,99
Crest factor
2.5:1
ECO mode
Ja
Input stroom THD
3 procent
Geluidsniveau
61 dB
Stroomspanning bescherming
Overbelasting, Kortsluiting
Geluidsalarm(en)
Ja

Poorten & interfaces

Stopcontacttypes
Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
SmartSlot
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Accu/Batterij voltage
480 V

Design

Vormfactor*
Tower
Kleur van het product*
Wit
Type beeldscherm
LCD
Internationale veiligheidscode (IP)
IP20
Certificering
CSA C22.2 No 107.3, FCC Part 15 class A, IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
10 - 80 procent
Hoogte, in bedrijf
0 - 1000 m
Hoogte bij opslag
0 - 3048 m

Gewicht en omvang

Breedte
521 mm
Diepte
847 mm
Hoogte
1485 mm
Gewicht
460 kg
Breedte verpakking
640 mm
Diepte verpakking
990 mm
Hoogte verpakking
1680 mm
Gewicht verpakking
490 kg

Verpakking

Gebruikershandleiding
Ja
Snelle installatiehandleiding
Ja
