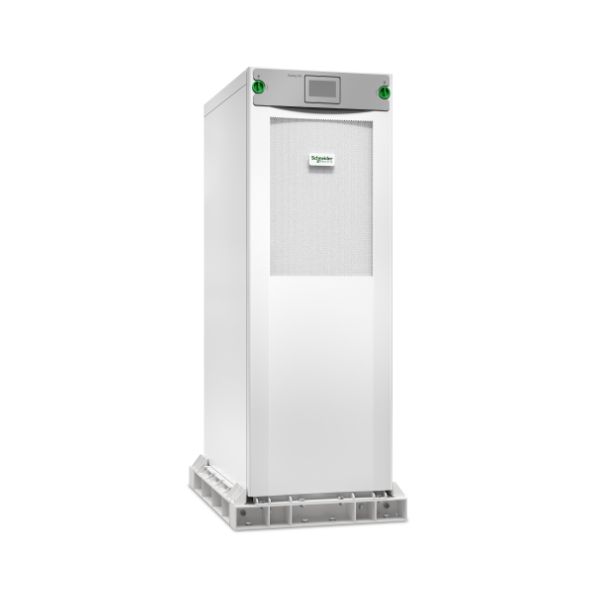

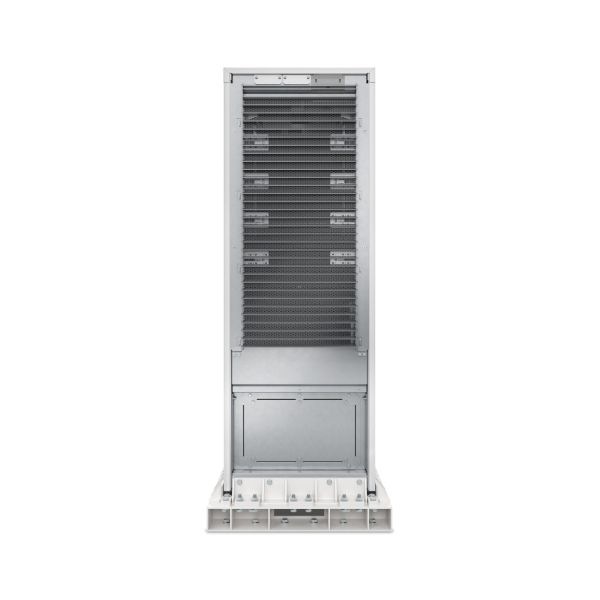

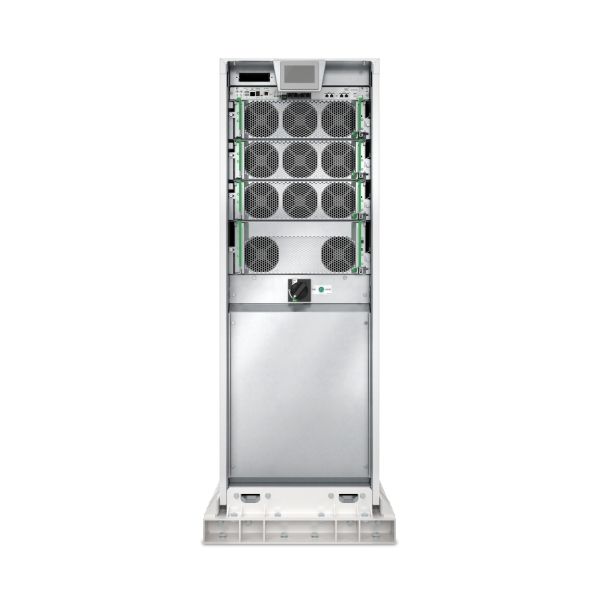

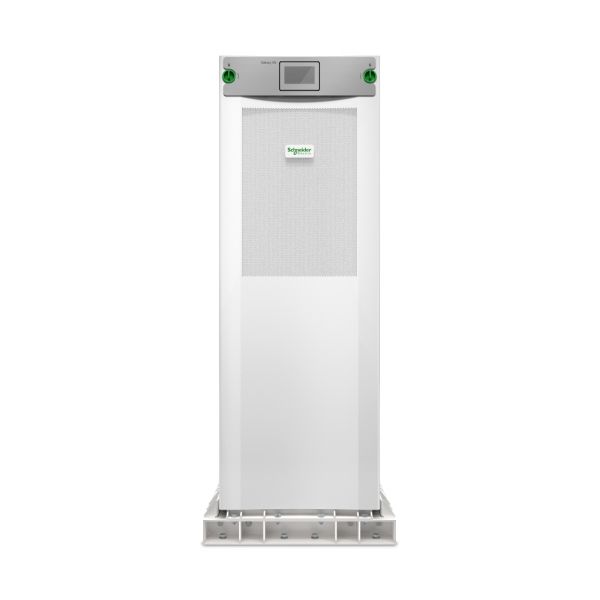

APC GVSUPS50KMHS UPS Dubbele conversie (online) 50 kVA 50000 W

APC GVSUPS50KMHS, Dubbele conversie (online), 50 kVA, 50000 W, Sinus, 340 V, 460 V

Niet op voorraad

Fabrikant APC
MPN GVSUPS50KMHS
EAN 0731304418368
€ 11.605,00 excl. BTW

APC GVSUPS50KMHS UPS Dubbele conversie (online) 50 kVA 50000 W

Highly efficient, easy-to-deploy 50kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.

Includes: Dust filter, EcoStruxure IT ready (UPS), Installation guide, Integrated network management, Power modules ship installed, Start-up service

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
50 kVA
Uitgangsvermogen*
50000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
340 V
Ingang operation voltage (max)*
460 V
Frequentie*
40/70 Hz
Output frequentie
50/60 Hz
Warmtedissipatie
5804 BTU/h
Aantal input fases
3
Aantal output fases
3
Power factor
1
Crest factor
2.5:1
Output voltage THD
5 procent
Input stroom THD
3 procent
Geluidsniveau
68 dB
Beheerprotocollen
SNMP
Type stroombron
AC

Design

Vormfactor*
Tower
Kleur van het product*
Wit
Soort bediening
Touch
Type beeldscherm
LCD

Design

LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP21
Certificering
EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60721-4-2 level 2M2, UL 1778 5th e

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
10 - 80 procent
Hoogte, in bedrijf
0 - 1005,84 m

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
52 mm
Diepte
847 mm
Hoogte
1485 mm
Gewicht
206 kg
Breedte verpakking
990 mm
Diepte verpakking
640 mm
Hoogte verpakking
1680 mm
Gewicht verpakking
250 kg
