Asrock A520M-HVS AMD A520 Socket AM4 micro ATX

Asrock A520M-HVS, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., DDR4-SDRAM, 64 GB, DIMM

Ruim op voorraad

Fabrikant ASRock
MPN 90-MXBE60-A0UAYZ
EAN 4710483932311
€ 96,00 excl. BTW

Asrock A520M-HVS AMD A520 Socket AM4 micro ATX

A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  • 6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM4
Compatibele processors*
3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz
Maximum intern geheugen*
64 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA III
Maximum aantal HDD's per behuizing
5

Grafisch

Grafische adapter-familie
AMD
Grafische adapter
Radeon Vega

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
COM aansluitingen
1

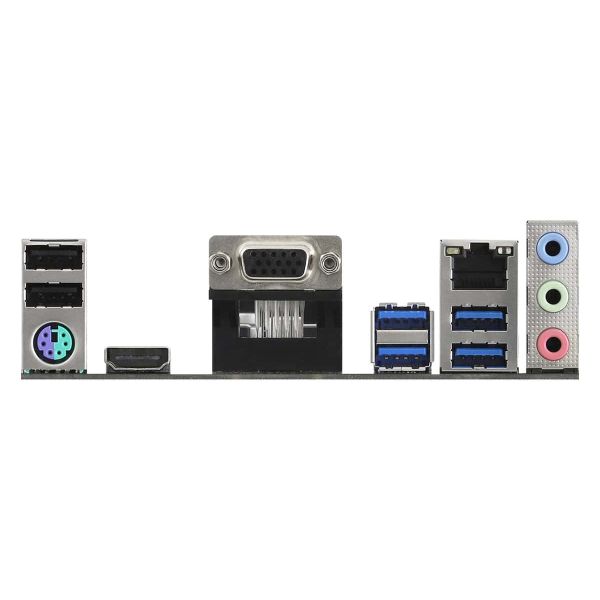

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal Ethernet LAN (RJ-45)-poorten*
1

Aansluitingen achterzijde

PS/2 poort(en)
1
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wake-on-LAN
Ja
Wifi*
Nee

Kenmerken

Chipset moederbord*
AMD A520
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
AMD

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1

BIOS

BIOS type*
UEFI AMI

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
230 mm
Diepte
201 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
