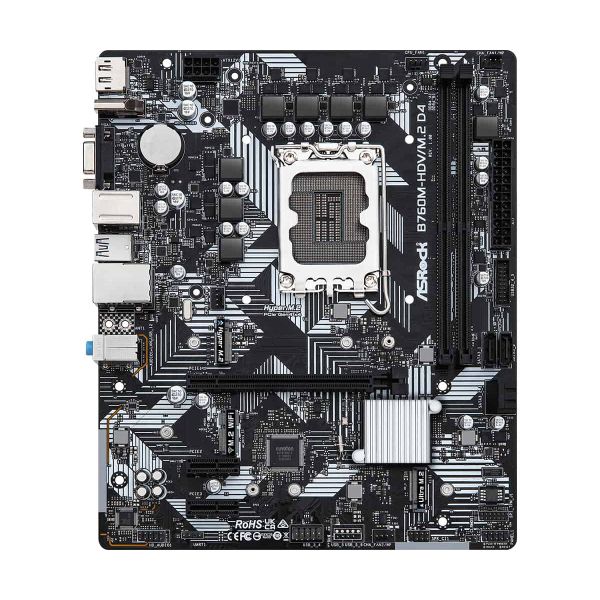

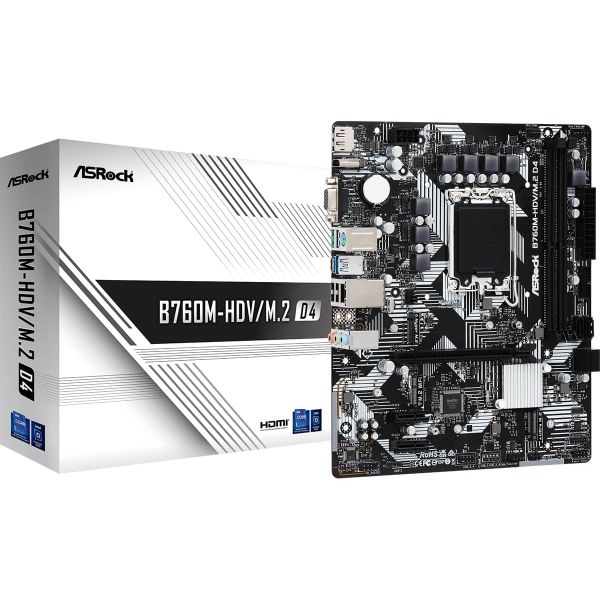

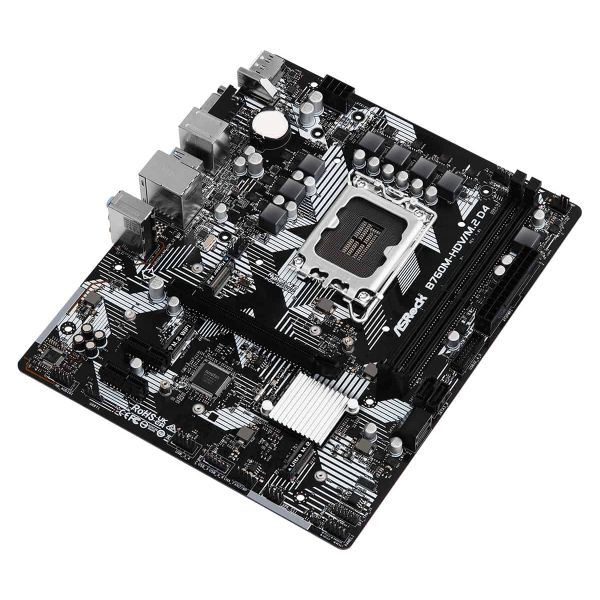

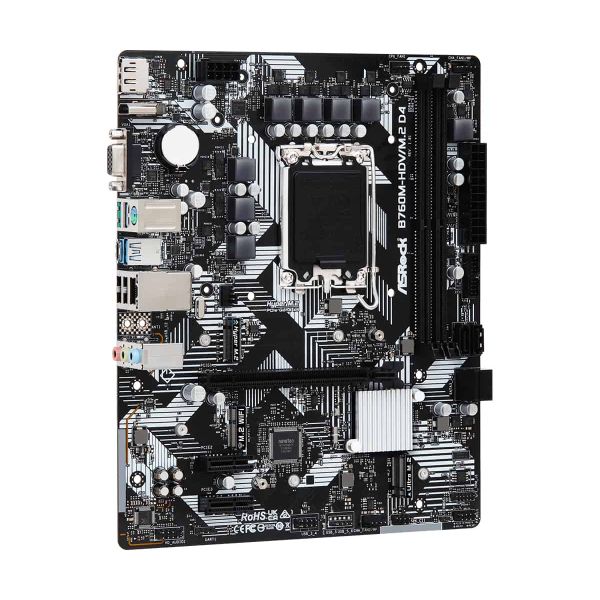

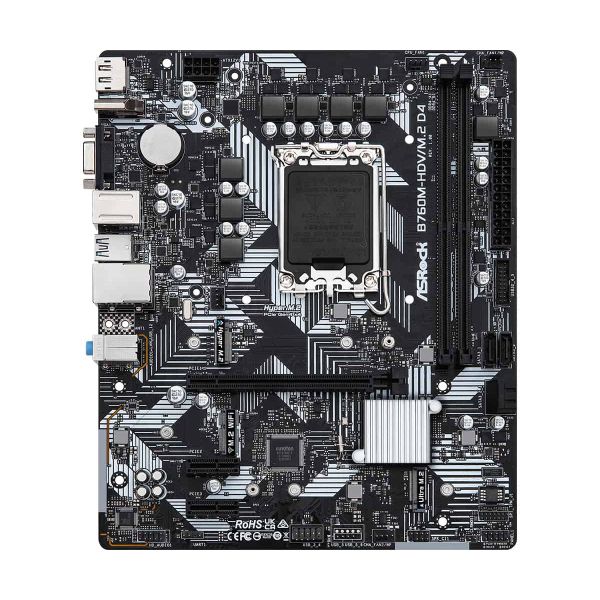

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

Asrock B760M-HDV/M.2 D4, Intel, LGA 1700, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, DDR4-SDRAM, 64 GB, DIMM

Nog 1 beschikbaar (bel voor reservering)

Fabrikant ASRock
MPN 90-MXBL40-A0UAYZ
EAN 4710483942020
€ 177,00 excl. BTW

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

  • ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 5+1+1 Power Phase
  • Supports DDR4 5333MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC887/897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
  • 1 Ultra M.2 (PCIe Gen3x4 & SATA)
  • 1 USB 3.2 Gen1 Type-C (Rear)
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 5 USB 2.0 (2 Rear, 3 Front)
  • Realtek 1G LAN
  • Supports ASRock Auto Driver Installer

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
3200,4400,5333 MHz
Maximum intern geheugen*
64 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund
HDCP
Ja

Interne aansluitingen

USB 2.0 aansluitingen*
3
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
4
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Chassis intrusion aansluiting
Ja
EPS power connector (8-pin)
Ja
TPM connector
Ja

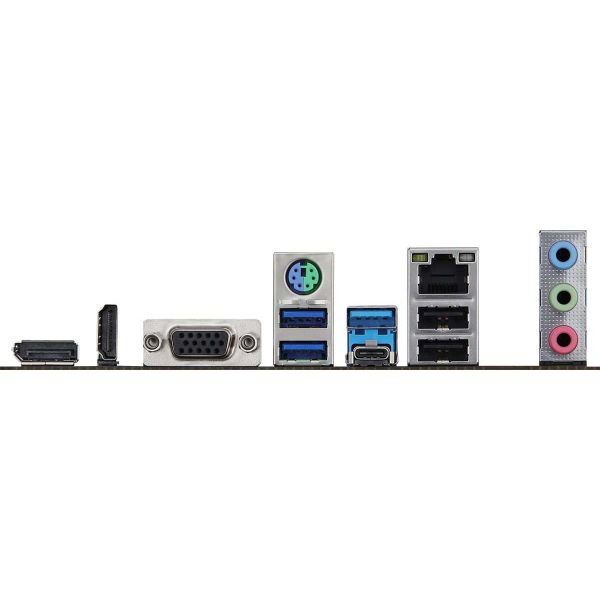

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
3
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C*
1
Aantal Ethernet LAN (RJ-45)-poorten*
1

Aansluitingen achterzijde

PS/2 poort(en)
1
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Lijningang
Ja
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel B760
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 Education x64, Windows 11 x64
Certificering
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Gewicht en omvang

Breedte
244 mm
Diepte
201 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
