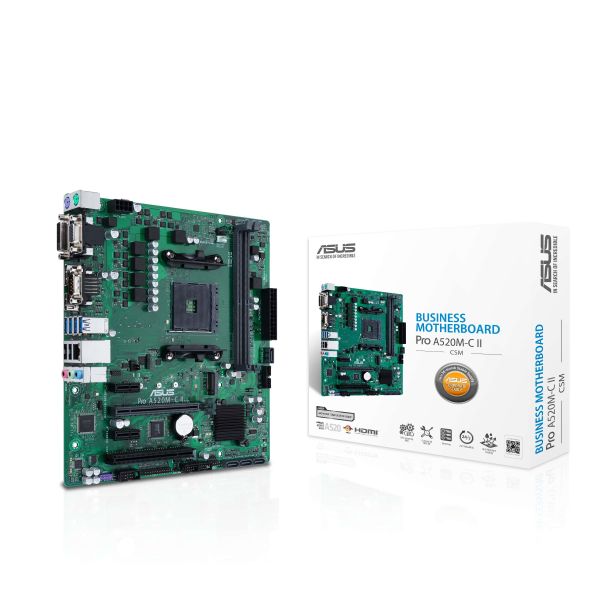

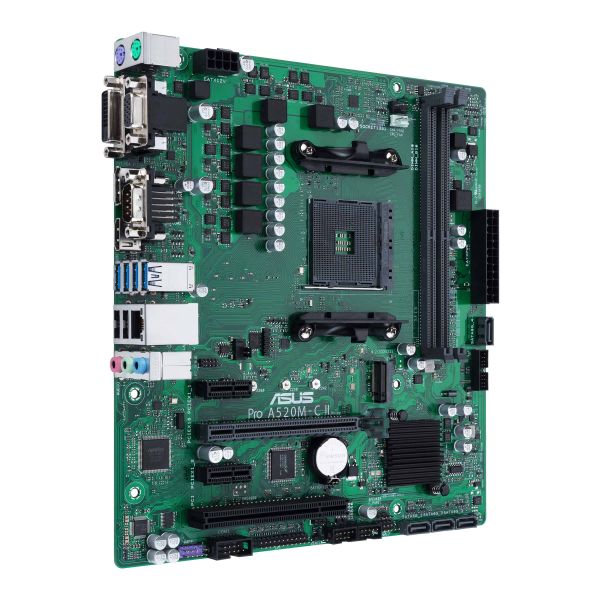

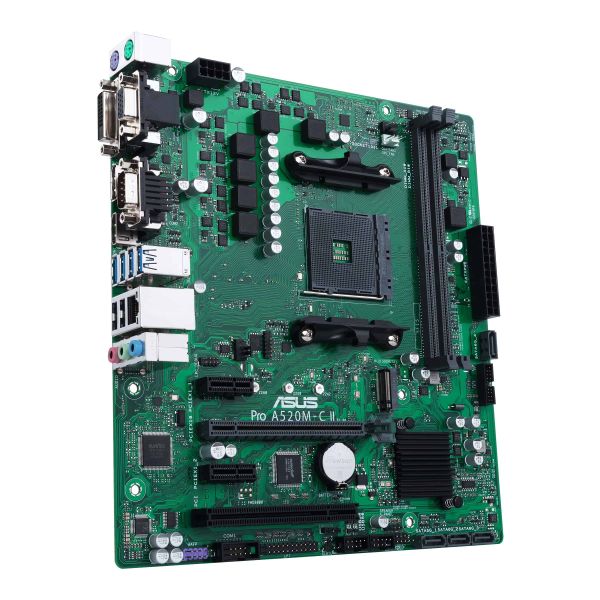

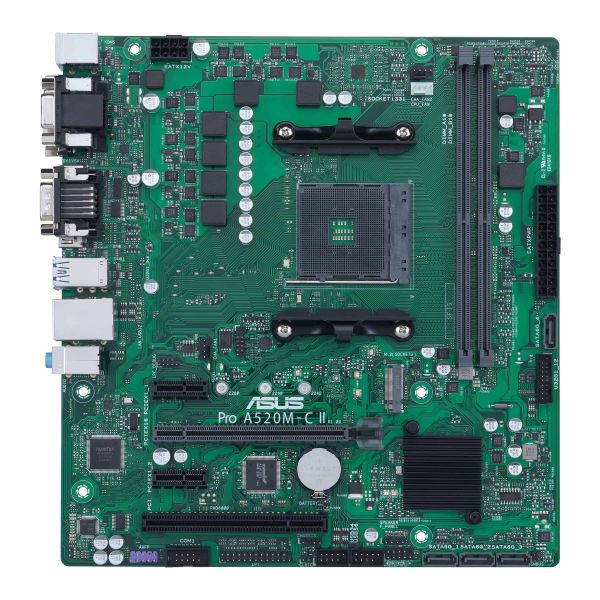

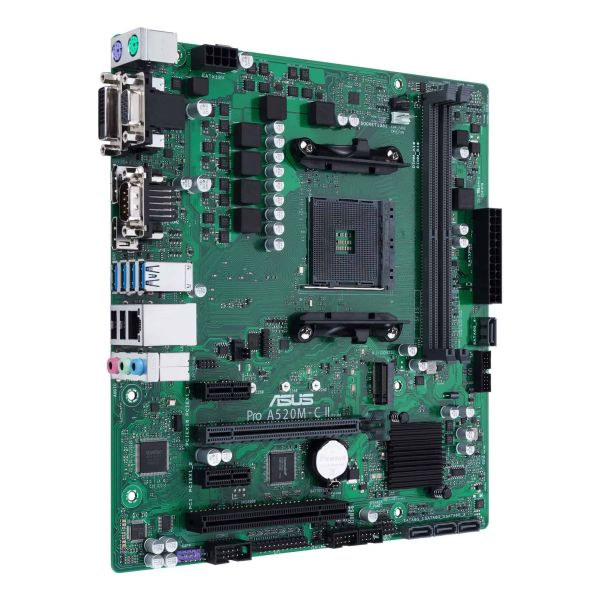

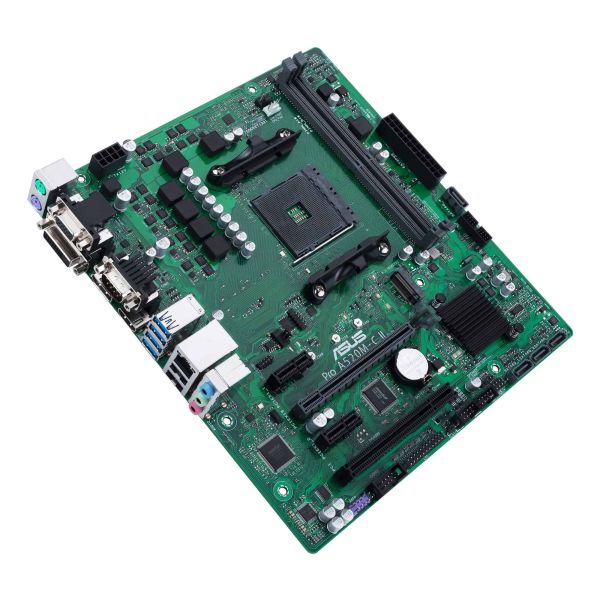

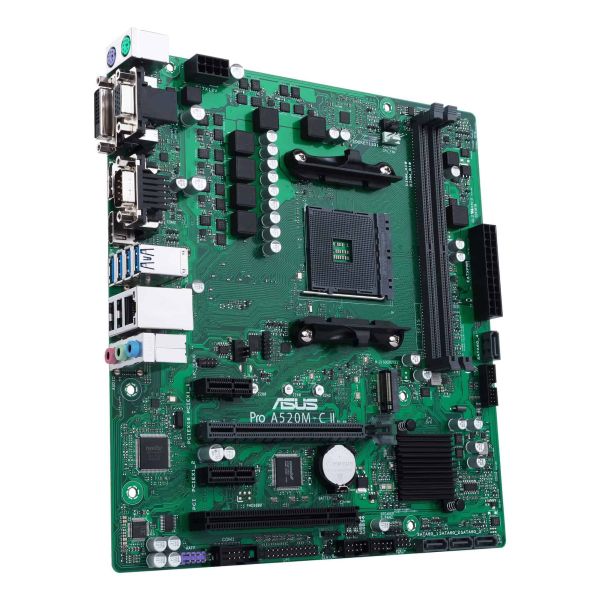

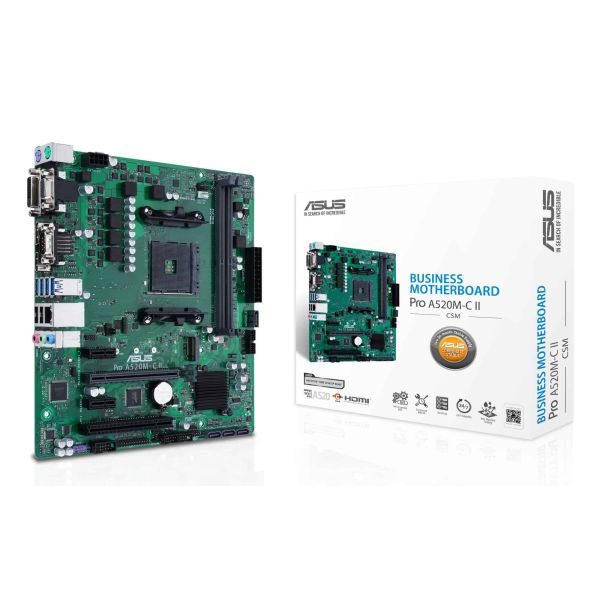

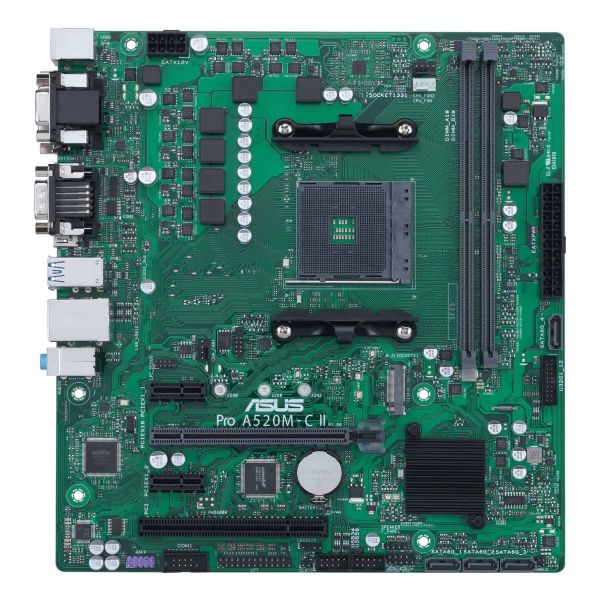

ASUS PRO A520M-C II/CSM AMD A520 Socket AM4 micro ATX

ASUS PRO A520M-C II/CSM, AMD, Socket AM4, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, Socket AM4, DDR4-SDRAM, 64 GB

Nog slechts 7 beschikbaar

Fabrikant ASUS
MPN 90MB18F0-M0EAYC
EAN 4711081250098
€ 85,00 excl. BTW

ASUS PRO A520M-C II/CSM AMD A520 Socket AM4 micro ATX

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Trouble Shooting Solution
ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.

Remote IT Management
The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • ASUS LPC debug header for more efficient troubleshooting
  • Supports SMBUS header that connects to a DASH LAN for remote IT management
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments
  • Event log for capturing and managing detailed system information
  • Commercial BIOS kit to make customization faster and more efficient
  • ASUS Control Center Express(ACCE) to make IT endpoint management easier

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM4
Compatibele processors*
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Max. aantal SMP-processoren
1
Supported processor sockets
Socket AM4

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC
Ja
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4400,4600 MHz
Maximum intern geheugen*
64 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Aantal storage drives ondersteund
5
RAID support
Ja
Soorten RAID
0, 1, 10

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluitingen voor EATX voedingen
1
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
EPS power connector (8-pin)
Ja
Parallele connector
Ja
Serial port headers
1

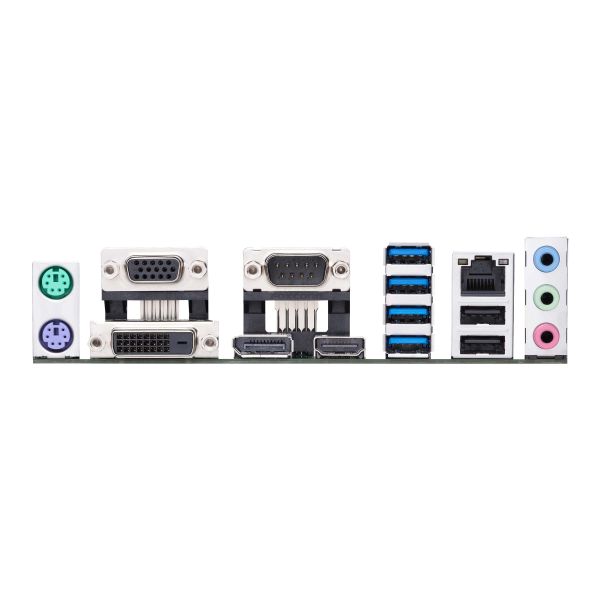

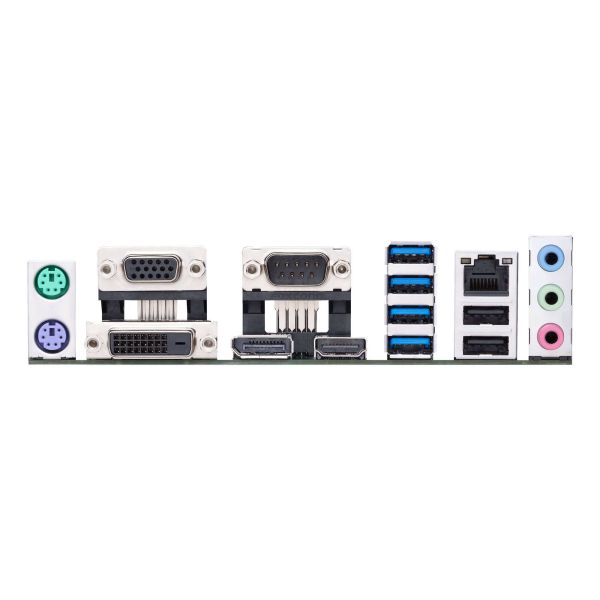

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
2
VGA (D-Sub)poort(en)*
1

Aansluitingen achterzijde

Aantal HDMI-poorten*
1
DVI-D poorten*
1
Aantal DisplayPorts
1
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja
Aantal COM-poorten
1
USB-connectortype
USB Type-A

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Wifi*
Nee

Kenmerken

Chipset moederbord*
AMD A520
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
AMD
Ondersteunt Windows
Windows 10 x64

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI-slots
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
Clear CMOS jumper
Ja

Verpakking

Breedte verpakking
270 mm
Diepte verpakking
263 mm
Hoogte verpakking
51,5 mm
Gewicht verpakking
910 g

Gewicht en omvang

Breedte
244 mm
Diepte
229 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja
