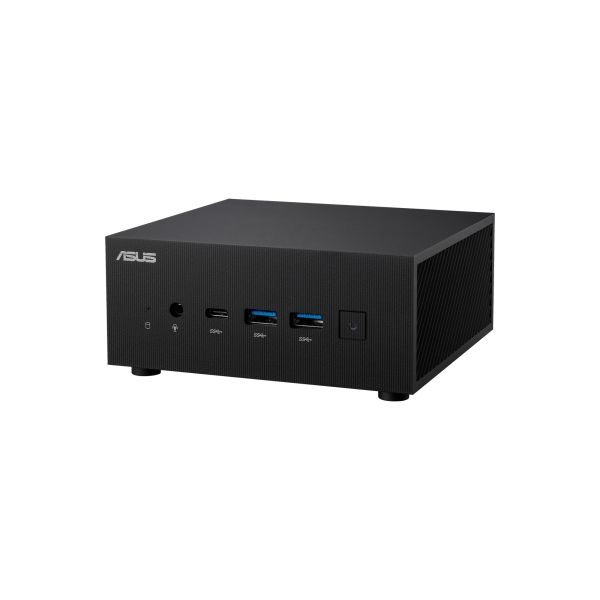

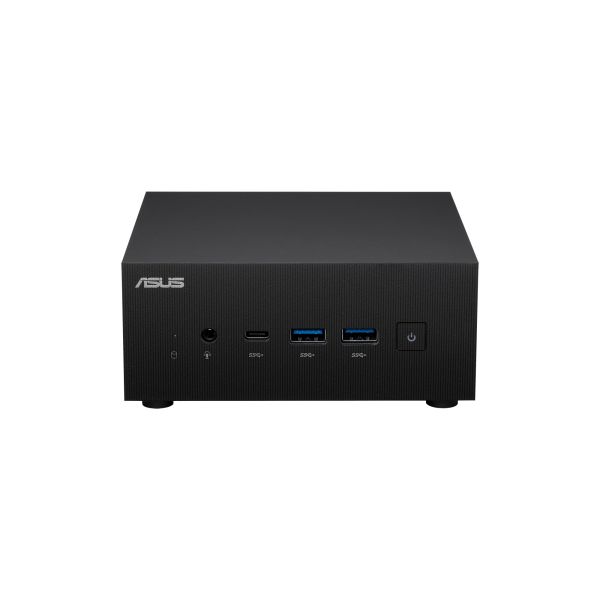

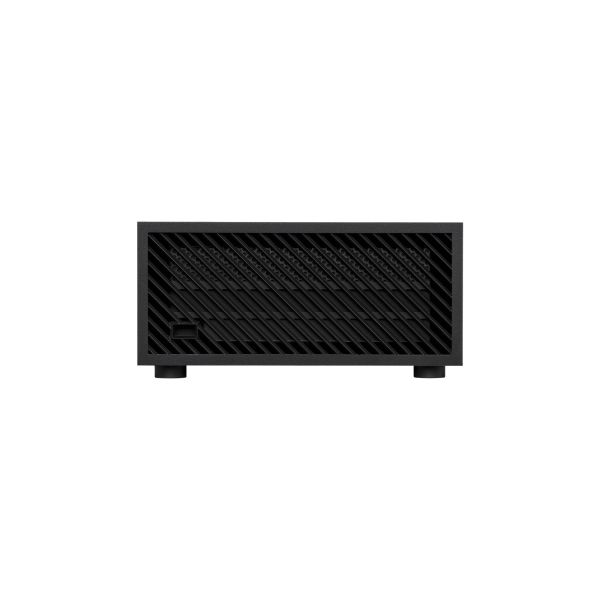

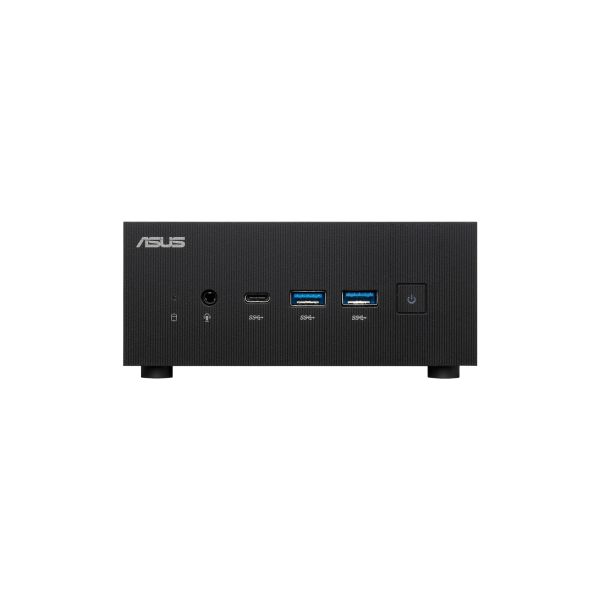

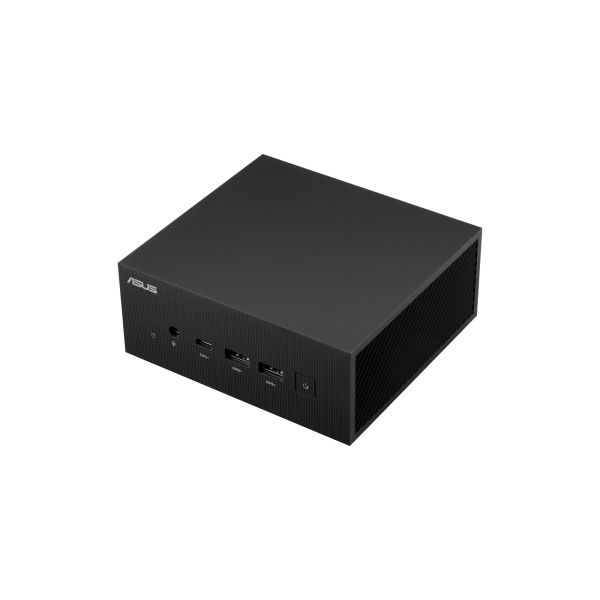

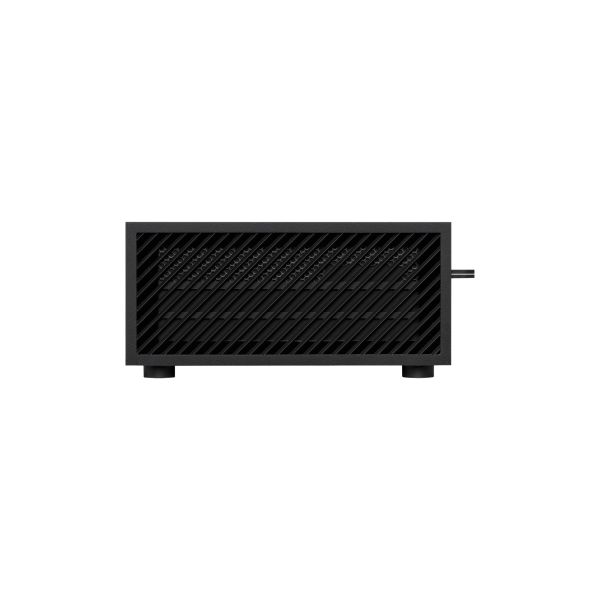

ASUS PN52-BBR758HD Zwart 5800H 3,2 GHz

ASUS PN52-BBR758HD, Mini PC barebone, DDR4-SDRAM, PCI Express, Ethernet LAN, Wi-Fi 6E (802.11ax), 120 W

Nog slechts 8 beschikbaar

Fabrikant ASUS
MPN 90MR00R2-M000E0
EAN 4711081798972
€ 696,00 excl. BTW

ASUS PN52-BBR758HD Zwart 5800H 3,2 GHz

System & CPU Performance
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.

Graphics Performance
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 14.4% in 3DMark11 to 23.6% in the 3DMark Night Raid performance benchmarks.

4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

Ultra-realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

Easy Upgrades
An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that’s required is a screwdriver.

Configurable Port
ASUS ExpertCenter PN52 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners or receipt printers.

Superfast 2.5 Gbps Networking
2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Multi-storage Design
ASUS ExpertCenter PN52 is able to accommodate two M.2 SSDs and a 2.5-inch HDD, allowing users to specify custom storage solutions for a balance of speed and capacity that best suits their needs.

Military-grade Durability
ASUS ExpertCenter PN52 is subjected to rigorous MIL-STD-810H durability tests, enduring extreme temperatures and humidity, high altitude, plus drop and vibration tests to ensure it’s fit to perform in the harshest conditions.

Enhanced Software - MyASUS

AI Noise Cancelation
Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.

System Diagnosis
Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.

Smart Fan Control
Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.

Other Functions
WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.
  • Powered by the latest AMD Ryzen™ 5000H Series Processor with Radeon™ graphics
  • Quad-4K displays support and 8K UHD support**
  • Support 7 USB ports, including 2 x Type C ports, and on-board dual HDMI ports
  • Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
  • Military-grade durability: Adheres to the MIL-810H military standards for outstanding quality and reliability
  • Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
  • Onboard 2.5GbE LAN delivering faster Ethernet connectivity
  • Multi-storage design, support up to up to 2x M.2 SSD and 1x HDD
  • Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
  • Configurable Port supports DP1.4/VGA/2.5G LAN/COM/HDMI options
  • 24/7 reliability — Extensively tested to ensure long-term dependability

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Ja
Processorfabrikant
AMD
Processorfamilie
AMD Ryzen™ 7
Processormodel
5800H
Frequentie van processor
3,2 GHz
Aantal processorkernen
8
Processor aantal threads
16
Maximale turbofrequentie van processor
4,4 GHz
Processor cache
16 MB
Geïnstalleerde processorcache
4 MB
L3 cache
16 MB
Thermal Design Power (TDP)
45 W

Geheugen

Aantal geheugenslots*
2
Maximum intern geheugen
32 GB
Supported memory clock speeds
3200 MHz
Ondersteunde geheugen types
DDR4-SDRAM

Opslagmedia

Ondersteunde types opslag-drives*
HDD & SSD
Opslagschijf afmetingen ondersteund*
M.2
SSD-vormfactor
M.2
Opslag schijf-interface
PCI Express
Aantal storage drives ondersteund
3

Grafisch

Ingebouwde grafische adapter*
Ja
Grafische adapter-familie
AMD
On-board graphics adapter model
AMD Radeon Graphics

Audio

Ingebouwde luidsprekers*
Nee

Netwerk

Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
Wi-Fi 6E (802.11ax)
Ethernet LAN*
Ja
Wifi*
Ja

Netwerk

LAN controller
Realtek RTL8125B-CG
Bluetooth
Ja
Bluetooth-versie
5.2

Poorten & interfaces

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
Aantal HDMI-poorten*
2
HDMI versie
2.1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Combo koptelefoon/microfoon port
Ja
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluiting voor netstroomadapter
Ja

Design

Kleur van het product*
Zwart
Type product*
Mini PC barebone
Certificering
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Prestatie

Trusted Platform Module (TPM)
Ja
Inclusief besturingssysteem
Nee

Energie

Soort voeding*
Externe AC-adapter
Netvoeding
120 W
AC-adapter, uitgangsspanning
19 V
AC-adapter, uitgangsstroom
6,32 A

Gewicht en omvang

Breedte
120 mm
Diepte
130 mm
Hoogte
58 mm
Gewicht
1 kg
