ASUS PN64-BB5013MD, mini PC, Mini PC barebone, GDDR5, SATA III, Ethernet LAN, Wi-Fi 6E (802.11ax)

Ruim op voorraad

Fabrikant ASUS
MPN 90MR00U2-M000D0
EAN 4711081833987

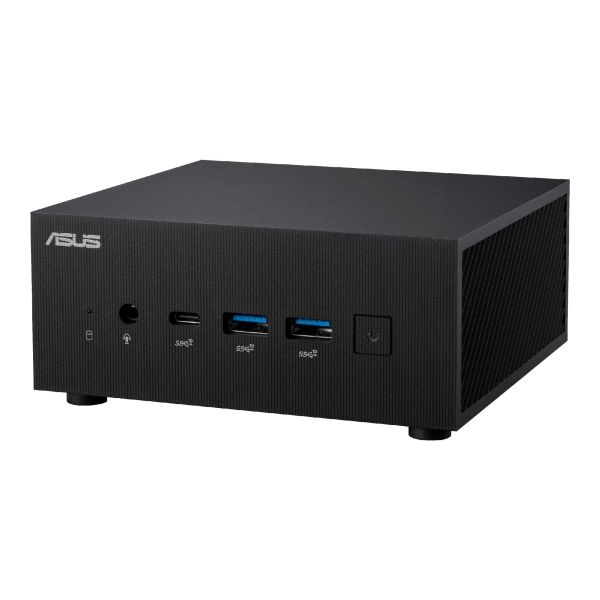

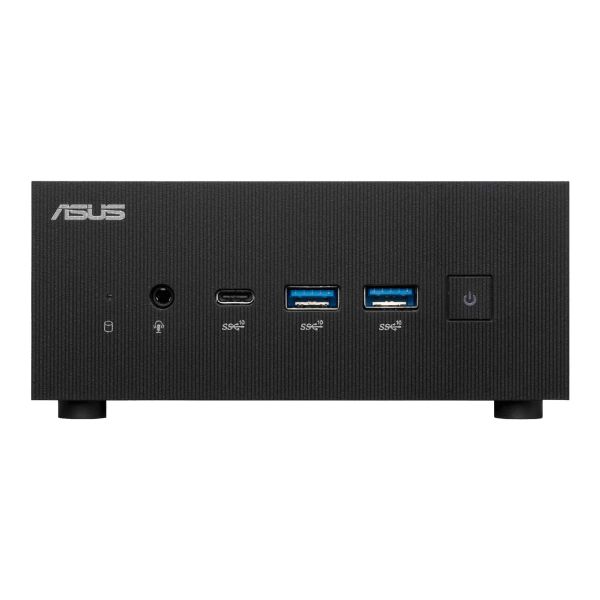

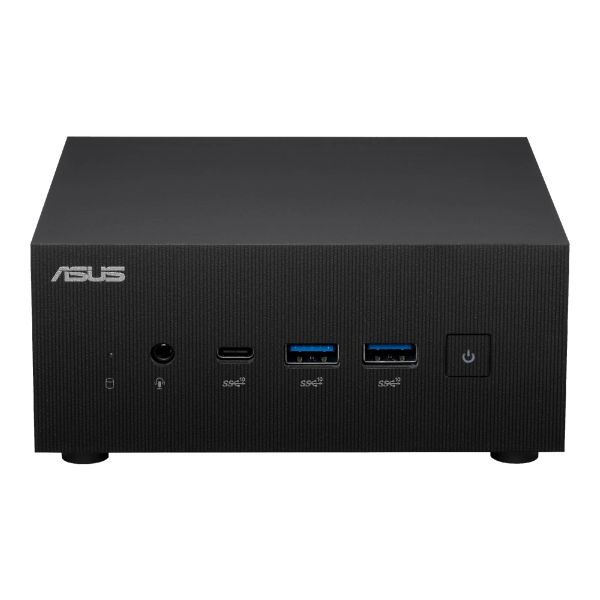

ASUS PN64-BB5013MD mini PC Zwart i5-12500H

New Processor Architecture Design
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.

Superior Computing Performance
ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 model, PN64 offers a 28% boost on overall system performance, making it perfect for multitasking**.

Faster and better DDR5 RAM
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN64 provides excellent performance for daily computing tasks.

Ultrafast PCIe® 4.0 SSD
ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that’s twice the data transfer speeds of PCIe 3.0.

Superfast 2.5 Gbps Ethernet
ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

Modern, Space-saving Design
Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office

Ultra-realistic 8K Visuals
ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input
ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

4K Resolution & Quad Display Support

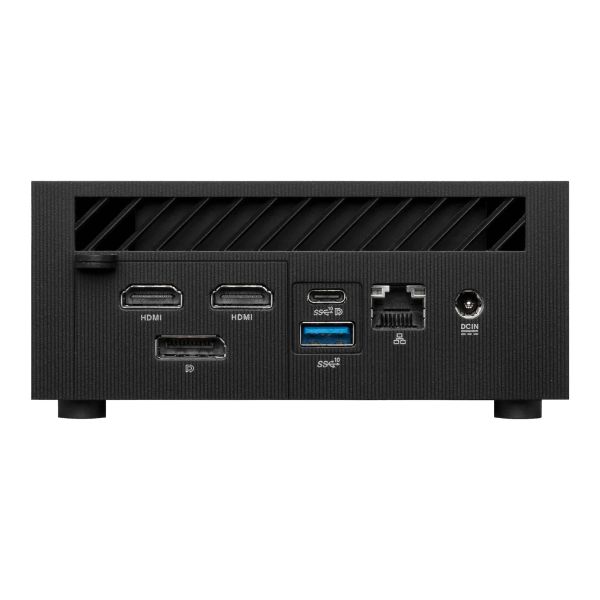

ASUS ExpertCenter PN64 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

Configurable Port
ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.

Padlock Ring for Security
The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.

VESA Mount-lockable Design
ASUS ExpertCenter PN64 can even be locked onto a VESA mount for additional security.

Enhanced Software - MyASUS

AI Noise Cancelation
Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.

System Diagnosis
Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.

Smart Fan Control
Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.

Other Functions
WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Ja
Processorfabrikant
Intel
Processorfamilie
Intel® Core™ i5
Processorgeneratie
Intel® 12de generatie Core™ i5
Processormodel
i5-12500H
Aantal processorkernen
12
Maximale turbofrequentie van processor
4,5 GHz
Processor cache
18 MB
CPU configuratie (max)
1

Geheugen

Geheugen slots type*
SO-DIMM
Aantal geheugenslots*
2
Supported memory clock speeds
4800 MHz
Ondersteunde geheugen types
GDDR5

Opslagmedia

Ondersteunde types opslag-drives*
HDD & SSD
Opslagschijf afmetingen ondersteund*
2.5,M.2
SSD-vormfactor
M.2
Opslag schijf-interface
SATA III
Aantal storage drives ondersteund
2

Grafisch

Ingebouwde grafische adapter*
Ja
Grafische adapter-familie
Intel
On-board graphics adapter model
Intel Iris Xe Graphics
Discreet grafische adapter model
Niet beschikbaar

Audio

Ingebouwde luidsprekers*
Nee

Netwerk

Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
Wi-Fi 6E (802.11ax)
Ethernet LAN*
Ja
Wifi*
Ja
LAN controller
Intel WGI225V
Bluetooth
Ja
Bluetooth-versie
5.2

Poorten & interfaces

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
3

Poorten & interfaces

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
2
Aantal HDMI-poorten*
2
HDMI versie
2.0
Aantal DisplayPorts
1
DisplayPort versie
1.4
Combo koptelefoon/microfoon port
Ja
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluiting voor netstroomadapter
Ja

Design

Type behuizing*
mini PC
Kleur van het product*
Zwart
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
VESA-montage
Ja
Type product*
Mini PC barebone
Certificering
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Prestatie

Trusted Platform Module (TPM)
Ja
Audiochip
Realtek ALC897
Inclusief besturingssysteem
Nee

Processor speciale functies

Ingebouwde opties beschikbaar
Nee
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Flex Memory Access
Ja
Intel® Trusted Execution Technology
Ja
Execute Disable Bit
Ja
Intel® Virtualization Technology (VT-x)
Ja

Gewicht en omvang

Breedte
120 mm
Diepte
130 mm
Hoogte
58 mm
Gewicht
1 kg

Inhoud van de verpakking

Inclusief monitor
Nee
