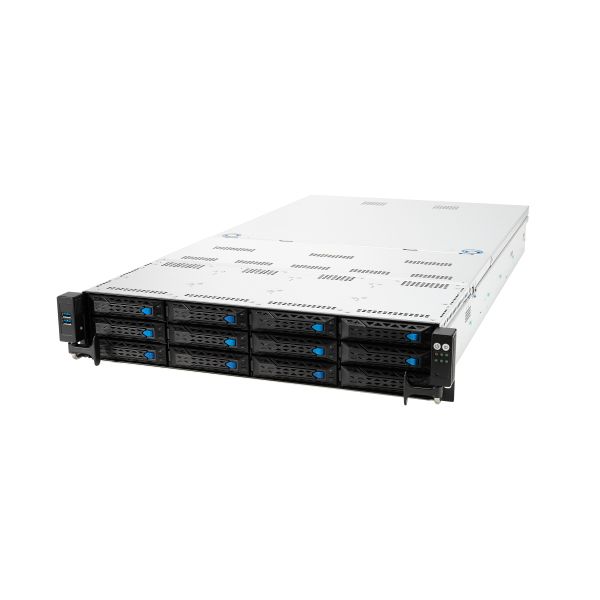

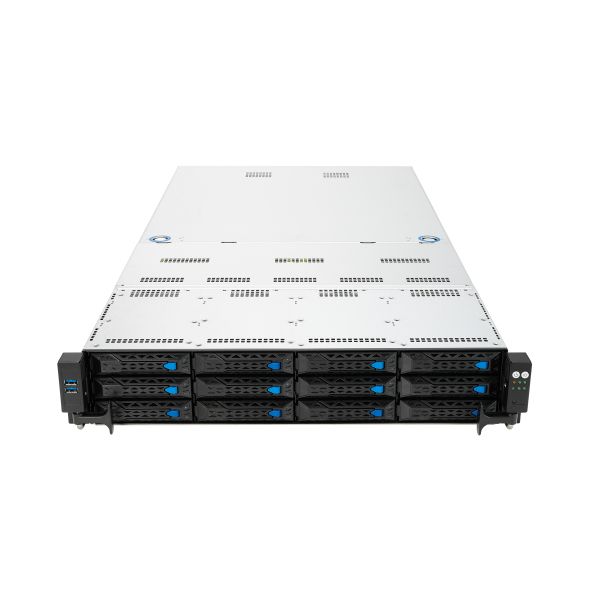

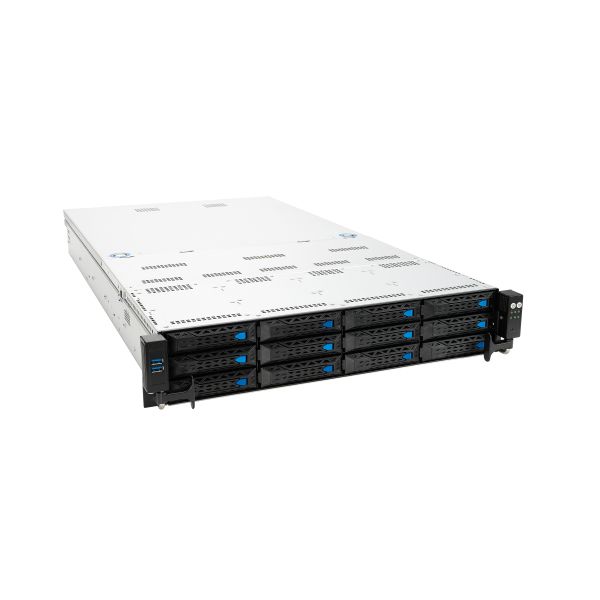

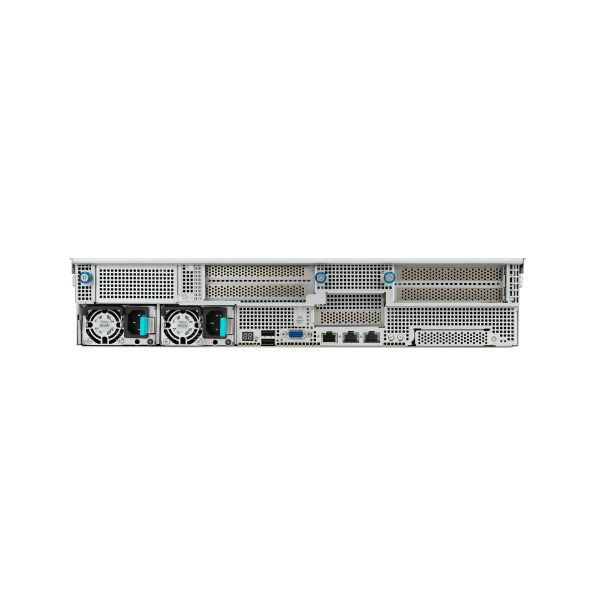

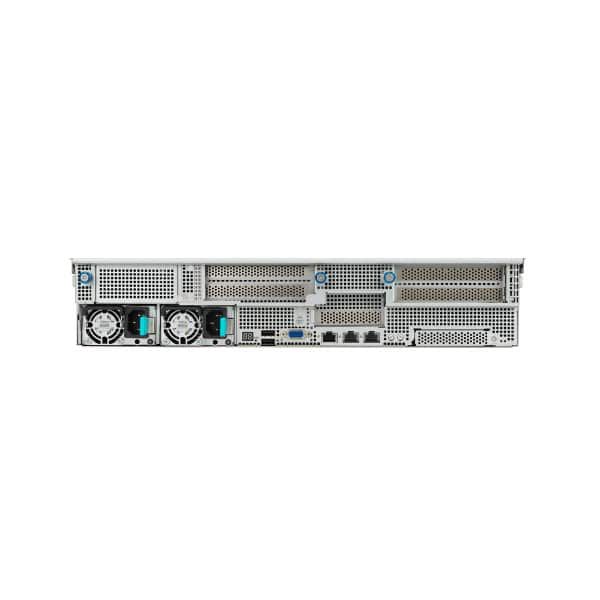

ASUS RS520A-E11-RS12U Socket SP3 Rack (2U) Zwart, Staal

ASUS RS520A-E11-RS12U, Socket SP3, AMD, AMD EPYC 7002, AMD EPYC 7003, DDR4-SDRAM, 16GB, 32GB, 64GB, 128MB, 256MB, 4,1 TB

Nog slechts 8 beschikbaar

Fabrikant ASUS
MPN 90SF01Q1-M00280
EAN 4711081685890
€ 2.072,00 excl. BTW

ASUS RS520A-E11-RS12U Socket SP3 Rack (2U) Zwart, Staal

AMD EPYC 7003 Series Processors
The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.

PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS520A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Two Dual-slot GPUs Support

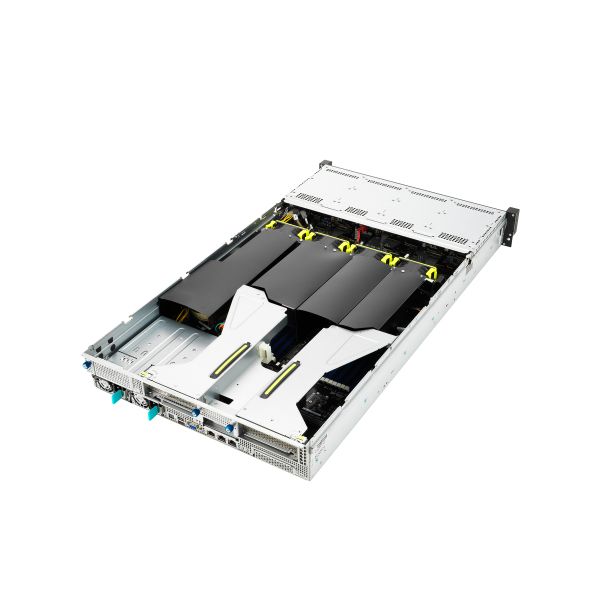

ASUS RS520A-E11 servers feature a powerful GPU architecture that supports two dual-slot GPU such as NVIDIA A100 in one 2U system to enable easy scale-up in order to meet the demands of AI and high-performance computing (HPC), and to securely run workloads in virtualized environments.

RS520A-E11 servers also provide optimized acceleration for workloads across cloud, data center and for hybrid cloud environment by being qualified from FPGA Xilinx with support of Alveo accelerator cards.

Scalable Storage Solution
ASUS RS520A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security. Up to 24 all-flash NVMe drives on front panel and flexible storage options for different configurations.

Redundant Fans Support

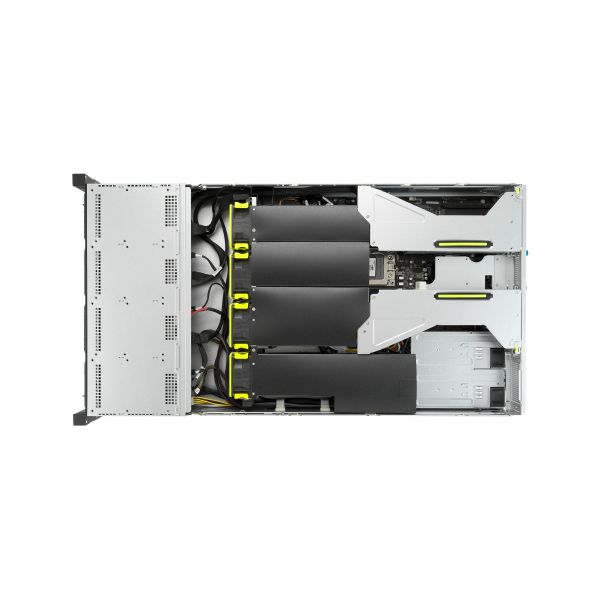

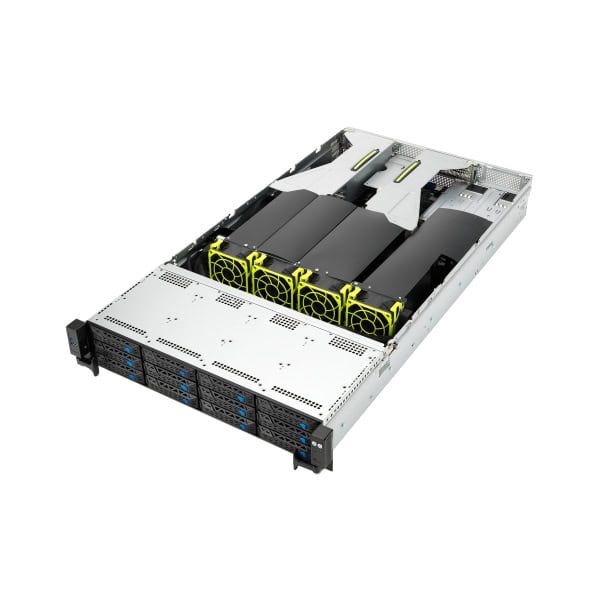

RS520A-E11 servers offer optional hot-swappable, redundant fans and dedicated air tunnels for the CPUs, GPUs and DIMMs for an extra thermal back-up solution. Eight fans for the system — four primary and four back-up fans to ensure nonstop cooling performance for nonstop server operation.

Enhanced Security
ASUS RS520A-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all RS520A-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

OCP 3.0
ASUS RS520A-E11 servers feature the latest OCP NIC 3.0 mezzanine card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a too-less, hot-swappable design to simplify installation and serviceability.

ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.


  • Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
  • GPU-optimized design allows two dual-slot or four single-slot GPUs for AI workloads

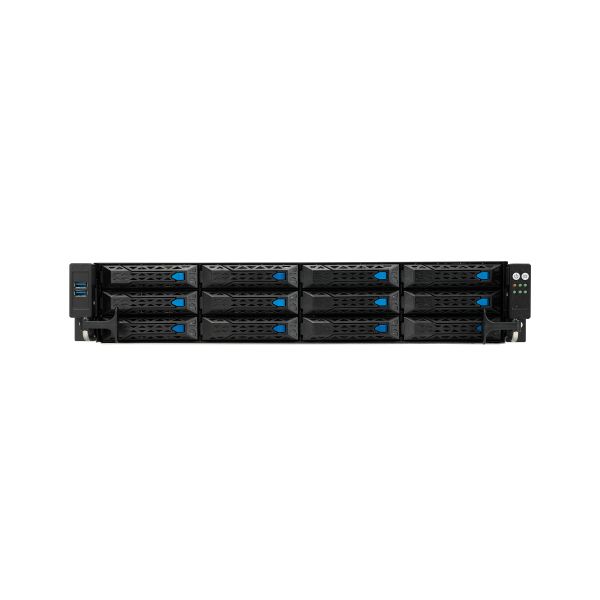

  • A total of 12 storage bays in combination of NVMe/SATA/SAS drives on front panel, and 6 direct more on middle and rear panels enable extensive storage and high-throughput performance
  • Up to five PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • Air cooling with heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
  • High power efficiency with redundant 80 Plus Titanium and Platinum power supplies

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Nee
Processor socket*
Socket SP3
Processorfabrikant
AMD
Compatibele processors
AMD EPYC 7002, AMD EPYC 7003
AMD Opteron series
7000

Geheugen

Aantal DIMM sloten*
16
Ondersteunde geheugen types*
DDR4-SDRAM
Ondersteunend DIMM module capaciteiten
16GB, 32GB, 64GB, 128MB, 256MB
Maximum UDIMM geheugen
4,1 TB
Ondersteunende RDIMM klok snelheden
2933,3200 MHz
Geheugen kanaal
Achtkanaals
ECC
Ja

Opslagmedia

Aantal storage drives ondersteund*
12
Hot-swap HDD bays*
Ja
Aantal 3.5" bays
12
Opslagschijf afmetingen ondersteund
3.5,M.2
Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces
M.2, PCI Express, SATA, Serial Attached SCSI (SAS)
SSD-vormfactor
M.2

Grafisch

On-board graphics adapter model
Aspeed AST2600
On-board graphics adapter geheugen
64 MB
Maximum geheugen grafische adapter
64 MB

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
LAN controller
Intel® I350-AM2

Poorten & interfaces

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4
Aantal Ethernet LAN (RJ-45)-poorten*
2
IPMI LAN (RJ-45) port
Ja

Poorten & interfaces

VGA (D-Sub)poort(en)
1

Uitbreidingsmodules

PCI Express x16 (Gen 1.x) slots
3

Kenmerken

Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
Compatibele besturingssystemen
WindowsServer, RedHat Enterprise Linux, SuSE Linux Enterprise Server CentOS, Ubuntu, Vmware

Technische details

Duurzaamheidscertificaten
CE, Federal Communications Commission (FCC)

Design

Type behuizing*
Rack (2U)
Kleur van het product
Zwart, Staal
LED-indicatoren
Ja
Rekrails
Ja
Certificering
BSMI, CE, RCM, FCC

Energie

Netvoeding*
800 W
Redundante voeding
Ja
Aantal ondersteunde redundante voedingen
2
Aantal geïnstalleerde redundante voedingen
2

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 35 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 90 procent
Luchtvochtigheid bij opslag
20 - 90 procent

Gewicht en omvang

Breedte
840 mm
Diepte
449 mm
Hoogte
88,1 mm
Gewicht
18,8 kg

Verpakking

Meegeleverde software
ASUS Control Center
Gewicht verpakking
28,4 kg
