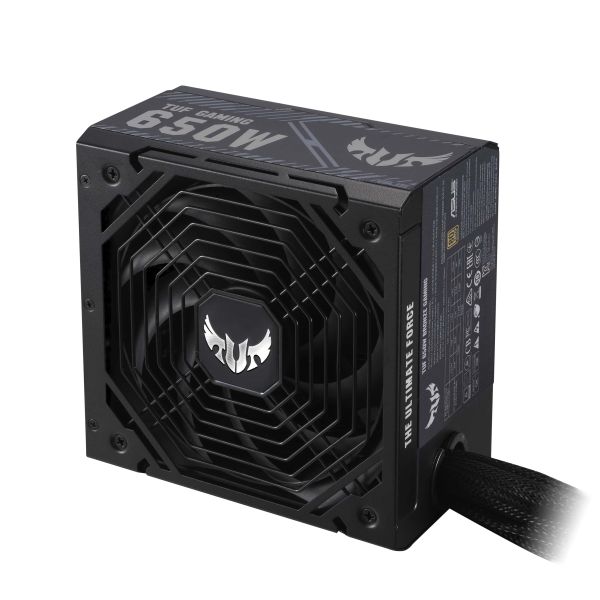

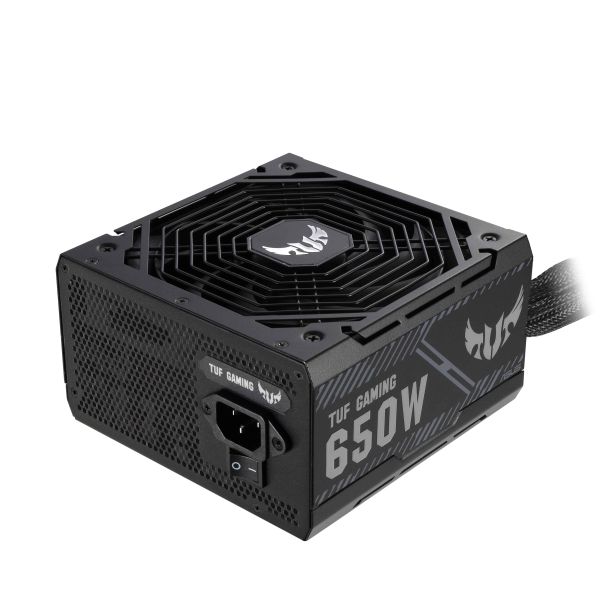

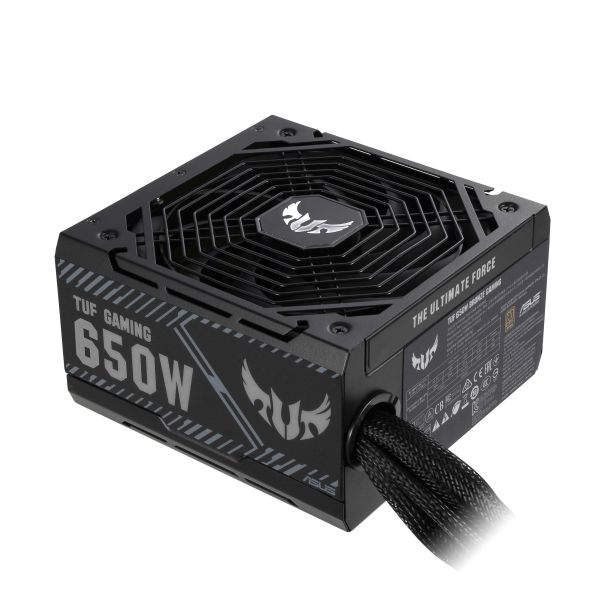

ASUS TUF-GAMING-650B power supply unit 650 W 20+4 pin ATX ATX Zwart

ASUS TUF-GAMING-650B, 650 W, 100 - 240 V, 25 A, 130 W, 612 W, 130 W

Ruim op voorraad

Fabrikant ASUS
MPN 90YE00D1-B0NA00
EAN 4718017724159

ASUS TUF-GAMING-650B power supply unit 650 W 20+4 pin ATX ATX Zwart

Built For The Long Haul
TUF Gaming series PSUs bring military-grade components and a robust cooling solution together to create a power platform you can depend on. High-quality capacitors and chokes undergo a myriad of tests, including extreme temperatures and vibration tests, to ensure they meet rigorous military specifications. An Axial-tech fan with a dual ball fan bearing design offers more longevity than other fan types, increasing the overall lifespan of the product. It's the perfect PSU to slot into a TUF Gaming rig or any DIY build designed to power through AAA games for years to come.

Military−grade Certification
Top marks

All critical capacitors and chokes in TUF Gaming PSUs are certified to military-grade specifications, ensuring reliable operation over a wide range of temperatures.

Dual Ball Fan Bearings
2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating
All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

80 Plus Bronze Certification
Brains and Bronze

The high-quality components used in TUF Gaming power supplies ensure efficient and reliable operation worthy of an 80 PLUS Bronze Certification. The efficiency also leads to low temperatures within the PSU, facilitating an even quieter acoustic profile for the 135mm Axial-tech fan.

Axial−tech Fan Design
Better, faster, stronger

Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
0dB Technology
Quiet intelligence

An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again.
6−year Warranty
Entrenched performance

We're so confident about the reliability of the TUF Gaming series PSUs that we back them with a 6-year worldwide warranty.
Sleeved Cables
Slim-fit

Cables swathed in black sleeving leave your rig looking tactically clean.
  • Capacitors and chokes pass demanding tests to achieve Military-grade Certification
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs
  • A protective PCB coating protects against moisture, dust, and extreme temperatures
  • An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
  • 0dB technology lets you enjoy light gaming in relative silence
  • Sleeved cables leave your rig looking tactically clean
  • 80cm 8-pin CPU connector (EPS 12V)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
650 W
AC-ingangsspanning*
100 - 240 V
Stroom
25 A
Gecombineerd vermogen (+3.3V)
130 W
Gecombineerd vermogen (+12V)
612 W
Gecombineerd vermogen (+5V)
130 W
Gecombineerd vermogen (-12V)
9,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
25 A
Max huidige output(+12V)
51 A
Max huidige output (+5V)
25 A
Max huidige output (-12V)
0,8 A
Max huidige output (+5Vsb)
3 A

Poorten & interfaces

Motherboard power connector*
20+4 pin ATX
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
5
Lengte SATA-stroomkabel
400 mm
Peripheral (Molex) power connectors (4-pin)*
4
PCI Express power connectors (6+2 pin)
4
Lengte PCI Express-stroomkabel
60 cm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
80 cm

Prestatie

80 PLUS certificatie*
80 PLUS Bronze
Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Aantal ventilatoren
1 ventilator(en)
Aan/uitschakelaar
Ja

Inhoud van de verpakking

Meegeleverde kabels
CPU, PCIe, Peripheral (Molex), SATA

Gewicht en omvang

Breedte
150 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
2,06 kg

Verpakking

Gewicht verpakking
2,75 kg
Type verpakking
Doos

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
