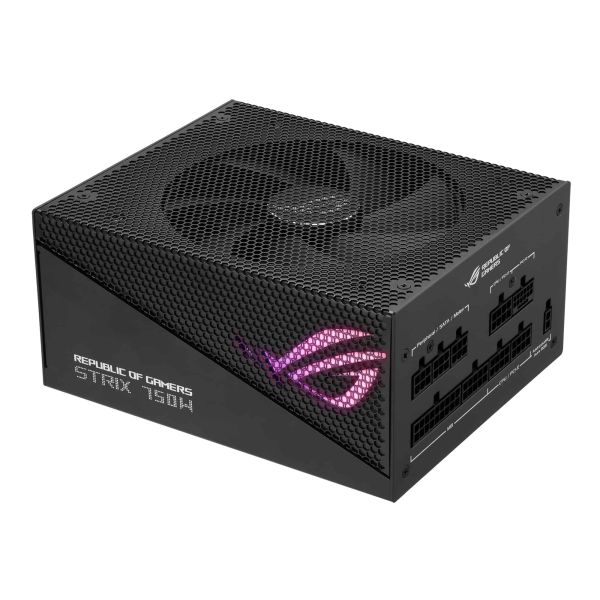

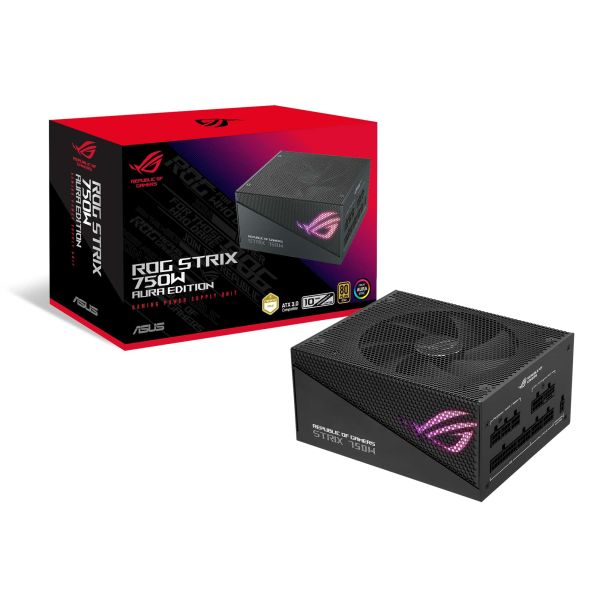

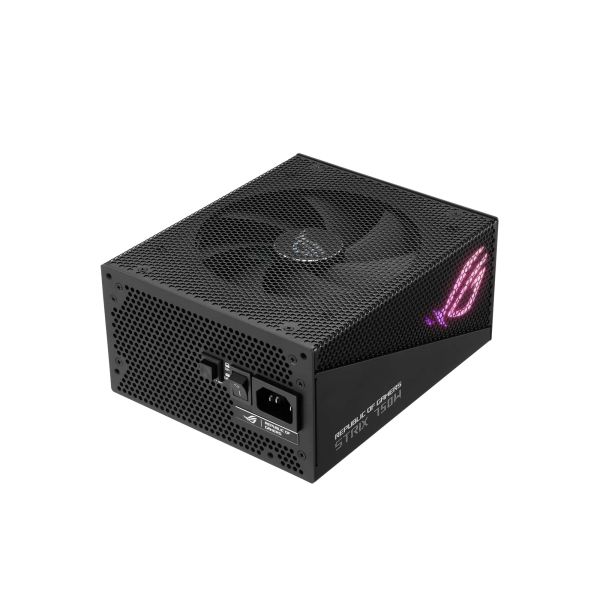

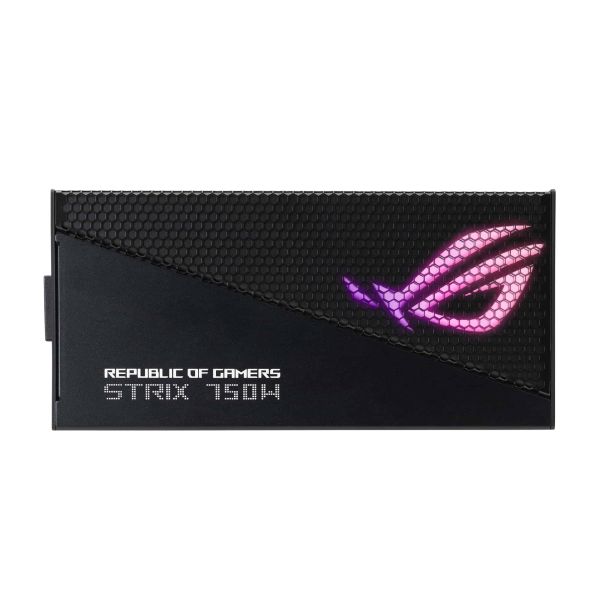

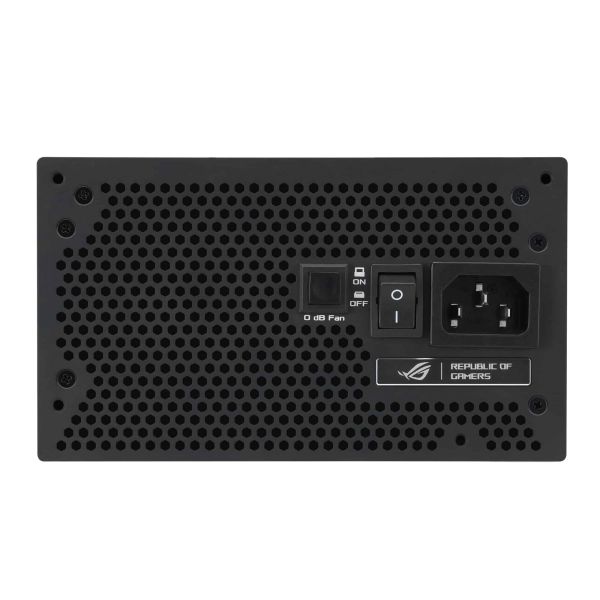

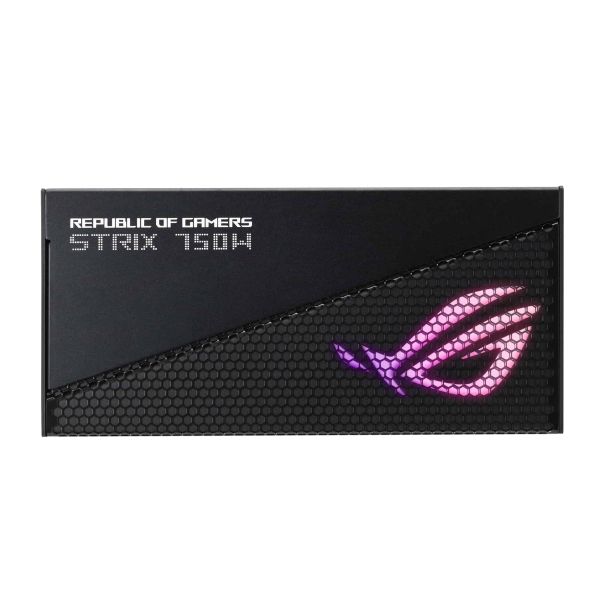

ASUS ROG Strix 750W Gold Aura Edition power supply unit 20+4 pin ATX ATX Zwart

ASUS ROG Strix 750W Gold Aura Edition, 750 W, 100 - 240 V, 120 W, 750 W, 3,6 W, 15 W

Nog 13 beschikbaar

Fabrikant ASUS
MPN 90YE00P3-B0NA00
EAN 4711081722366

ASUS ROG Strix 750W Gold Aura Edition power supply unit 20+4 pin ATX ATX Zwart

Exude Power
The ROG Strix 750W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.

COOLING

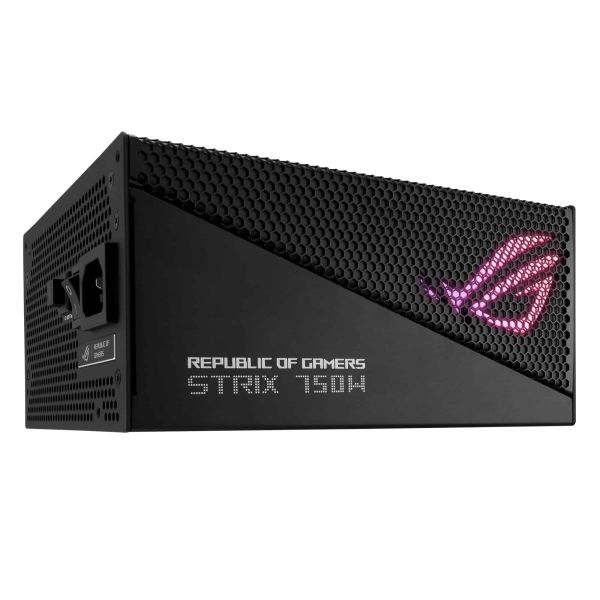

Aluminum Case
Built to run cool
The ROG Strix 750W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

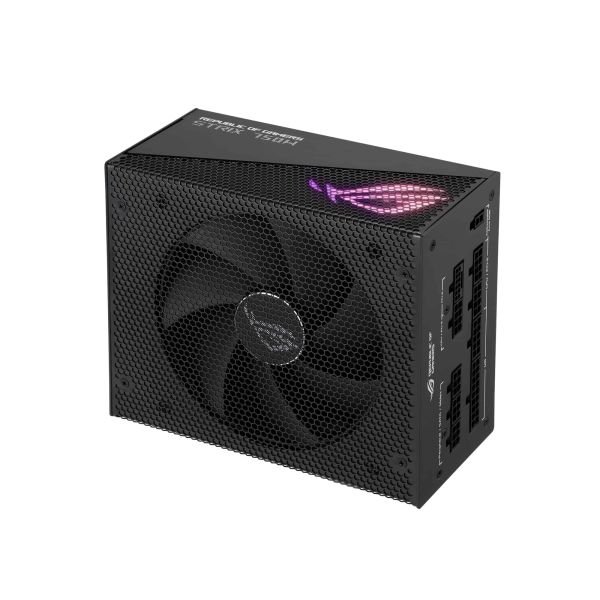

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 60% or below.

ENGINEERING

80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Lambda A++ Certification
Effortlessly quiet
On average, ROG Strix 750W Gold Aura Edition emits less than 15 dB of noise – earning a coveted Cybenetics Lambda A++ certification.

ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.

EXPERIENCE

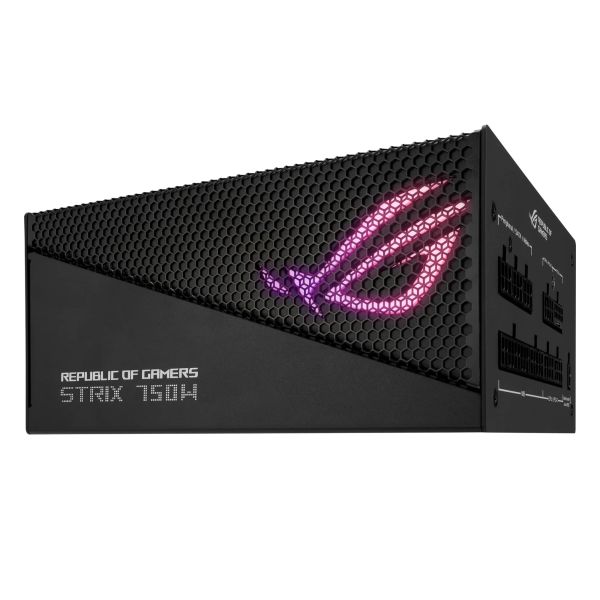

Aura Sync
Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 750W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
*If the connector cable is not used, the default color effect is rainbow.
*To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

10-year Warranty
A decade of power
We're so confident about the reliability of the ROG Strix 750W Gold Aura Edition that we back it with a 10-year worldwide warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
750 W
AC-ingangsspanning*
100 - 240 V
Gecombineerd vermogen (+3.3V)
120 W
Gecombineerd vermogen (+12V)
750 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
22 A
Max huidige output(+12V)
62,5 A
Max huidige output (+5V)
22 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Stroomspanning bescherming
Te hoog vermogen, Overspanning, Overbelasting, Oververhitting, Kortsluiting, Onder spanning

Poorten & interfaces

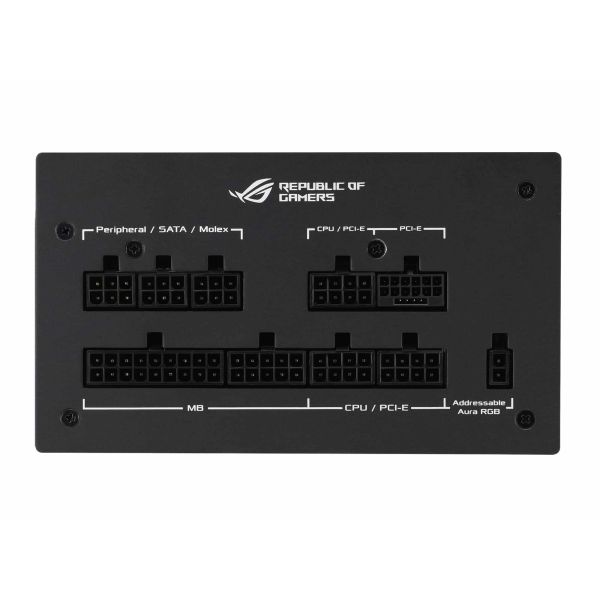

Motherboard power connector*
20+4 pin ATX
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
5
Lengte SATA-stroomkabel
120,400 mm
Peripheral (Molex) power connectors (4-pin)*
4
Lengte stroomkabel randapparaat (Molex)
150,400 mm
PCI Express power connectors (8-pin)
3
PCI Express-voedingsconnectoren (16-pins)
1
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
65 cm
ATX power connector (20+4 pin)
Ja
Bekabelingstype
Modulair

Prestatie

80 PLUS certificatie*
80 PLUS Gold

Prestatie

Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX
ATX version
3.0
Stille modus
Ja
Bearing technologie
Kogellager

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Aantal ventilatoren
1 ventilator(en)
Belichting
Ja
Aan/uitschakelaar
Ja

Inhoud van de verpakking

Meegeleverde kabels
AC, CPU, PCIe, Peripheral (Molex), SATA

Gewicht en omvang

Breedte
180 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
2,69 kg

Verpakking

Gewicht verpakking
3,19 kg
Type verpakking
Doos

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
RoHS
