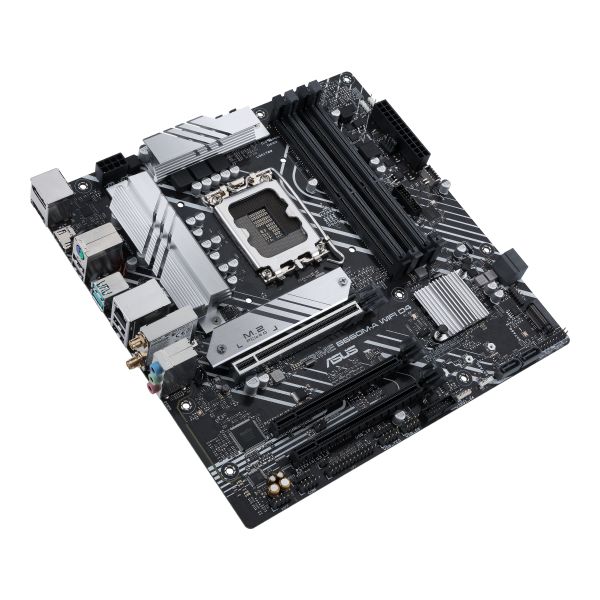

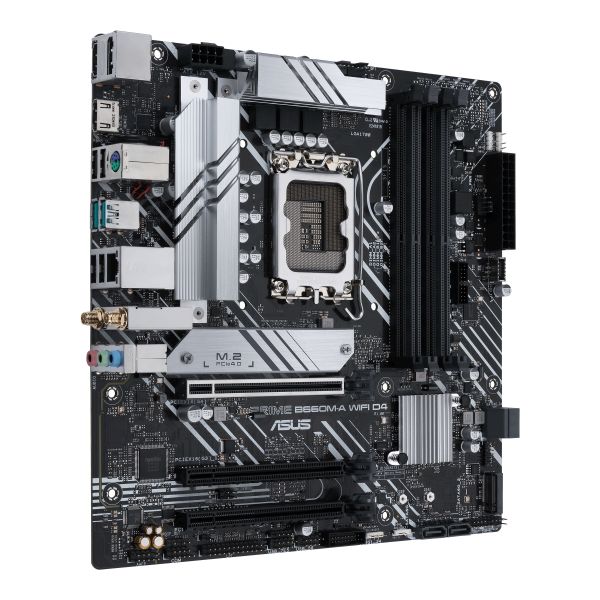

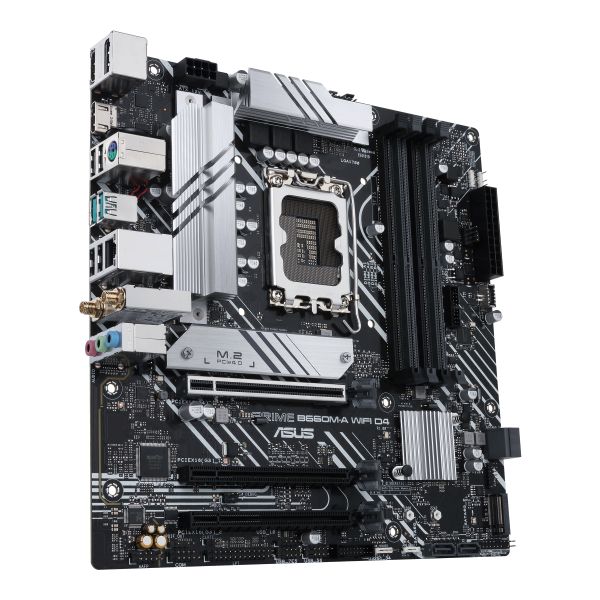

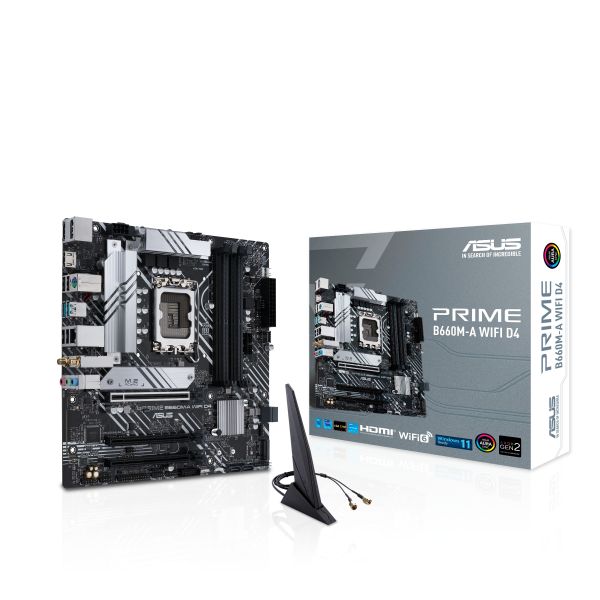

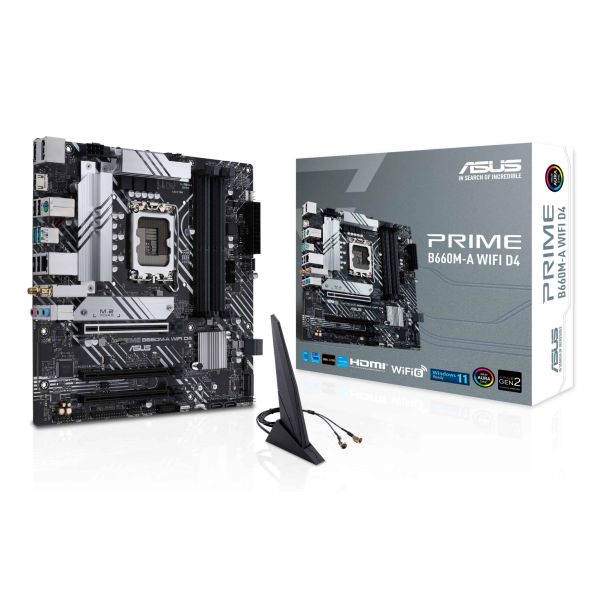

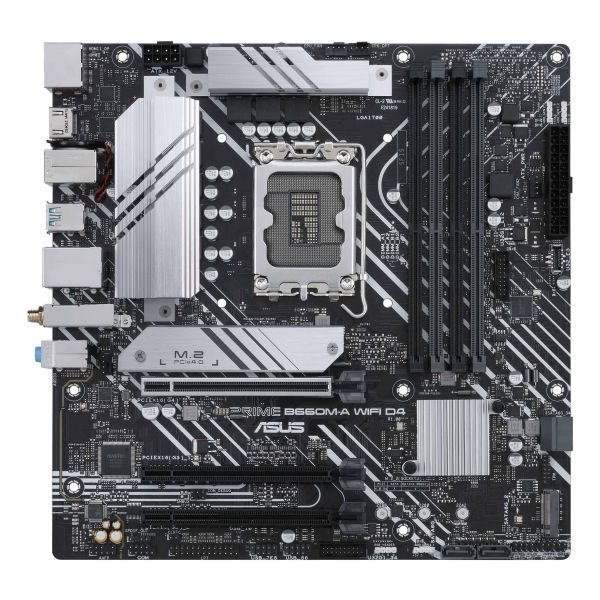

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

ASUS PRIME B660M-A WIFI D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 128 GB, DIMM

Ruim op voorraad

Fabrikant ASUS
MPN PRIME B660M-A WIFI D4
EAN 4711081518105
€ 185,00 excl. BTW

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

Asus PRIME B660M-A WiFi D4 Motherboard

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000,5333 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA
Soorten RAID
0, 1, 5, 10

Grafisch

Aantal displays ondersteund
3

Interne aansluitingen

USB 2.0 aansluitingen*
3
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3
Aantal SATA III connectors*
4
S/PDIF uitgang
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
EPS power connector (8-pin)
Ja
COM aansluitingen
1
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

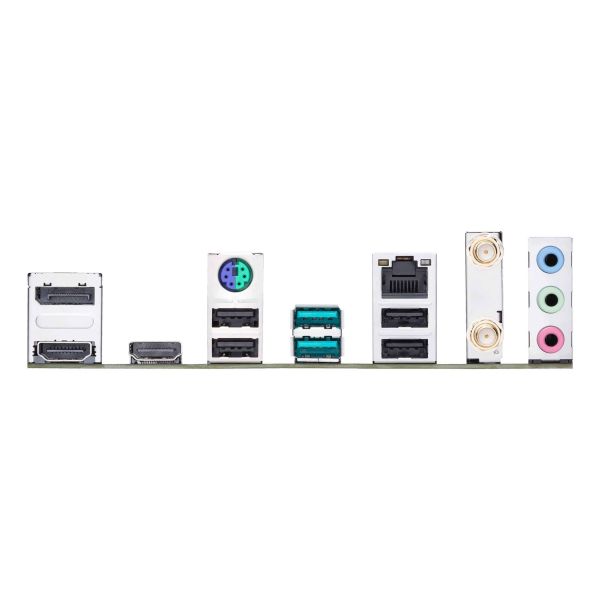

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1
Aantal HDMI-poorten*
2
HDMI versie
2.1

Aansluitingen achterzijde

Aantal DisplayPorts
1
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.2

Kenmerken

Chipset moederbord*
Intel B660
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm
Hoogte
60 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja

Overige specificaties

Gewicht
819 g

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
