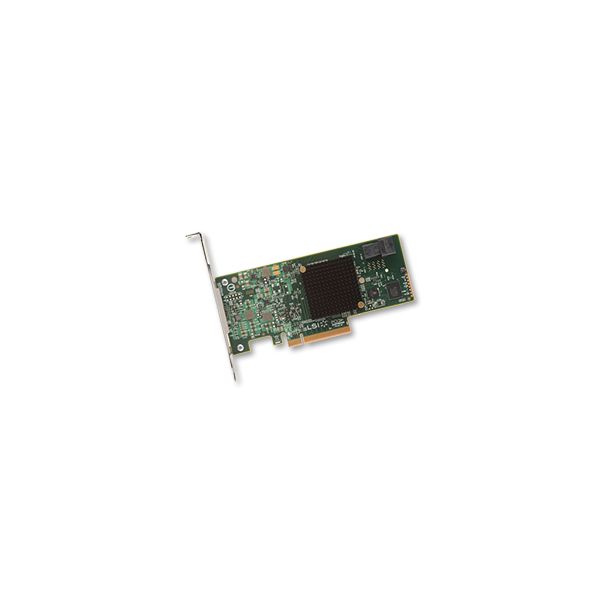

Broadcom MegaRAID SAS 9341-4i RAID controller PCI Express x8 3.0 12 Gbit/s

Broadcom MegaRAID SAS 9341-4i, SAS, SATA, PCI Express x8, 0, 1, 5, 10, 50, 12 Gbit/s, 2800000 uur, EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA...

Niet op voorraad

Fabrikant Broadcom
MPN 05-26105-00
EAN 0830343003099
€ 259,00 excl. BTW

Broadcom MegaRAID SAS 9341-4i RAID controller PCI Express x8 3.0 12 Gbit/s

Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That’s where the MegaRAID® SAS 9341-4i 12Gb/s controller card can add real value. Designed for small and medium businesses (SMBs) with tower and rack-mounted and servers, it provides the headroom required for future growth at an affordable price point.
  • Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives in RAID mode with four internal 12Gb/s SATA and SAS ports
  • Support high-bandwidth applications with PCIe® 3.0 connectivity
  • Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Ondersteunde opslagstationinterfaces*
SAS, SATA
Hostinterface*
PCI Express x8
PCI Express slots versie
3.0
Interne SAS-poorten
4

Prestatie

Soorten RAID*
0, 1, 5, 10, 50
RAID Level Migratie
Ja
Overdrachtssnelheid
12 Gbit/s
SSD-ondersteuning
Ja
S.M.A.R.T. support
Ja
Number of devices supported
64
Online Capaciteit vergroting
Ja
Mean time between failures (MTBF)
2800000 uur
Certificering
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick

Energie

Spanning
3.3, 12 V

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-45 - 105 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
