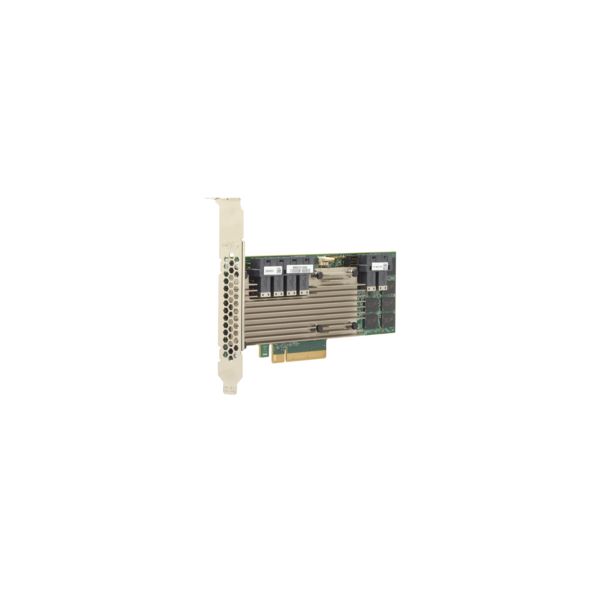

Broadcom 9361-24i interfacekaart/-adapter Intern SAS, SATA

Broadcom 9361-24i, PCIe, SAS, SATA, PCIe 3.0, 3000000 uur, 12 Gbit/s, 0, 1, 5, 6, 10, 50, 60

Nog slechts 9 beschikbaar

Fabrikant Broadcom
MPN 05-50022-00
EAN 0830343003662
€ 1.129,00 excl. BTW

Broadcom 9361-24i interfacekaart/-adapter Intern SAS, SATA

Data center, web, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-24i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

- Connect up to 240 SATA or SAS drives with eight internal and eight external 12Gb/s SAS ports
- Provides internal storage and RAID data protection to address a wide range of storage performance and capacity requirements
- Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind CacheVault® flash cache protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
SAS, SATA
Uitbreidingskaartstandaard
PCIe 3.0

Design

Intern*
Ja
Mean time between failures (MTBF)
3000000 uur

Kenmerken

Data transfer snelheid (max)
12 Gbit/s
Soorten RAID
0, 1, 5, 6, 10, 50, 60

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja

Gewicht en omvang

Breedte
167,7 mm
Diepte
68,9 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
