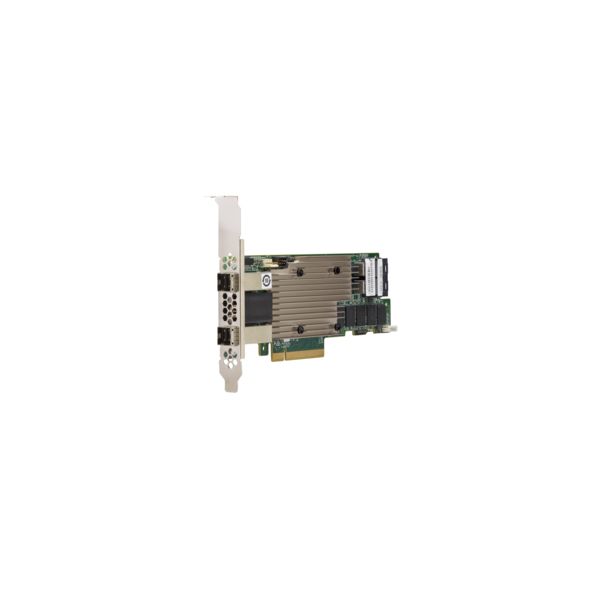

Broadcom MegaRAID 9480-8i8e RAID controller PCI Express x8 3.1 12 Gbit/s

Broadcom MegaRAID 9480-8i8e, SAS, SATA, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, 12 Gbit/s, 2096 MB, DDR4

Nog slechts 7 beschikbaar

Fabrikant Broadcom
MPN 05-50031-00
EAN 0830343003624
€ 1.179,00 excl. BTW

Broadcom MegaRAID 9480-8i8e RAID controller PCI Express x8 3.1 12 Gbit/s

Direct attached, high-connectivity applications require increased bandwidth, increased IOPS performance and advanced data protection. The MegaRAID 9480-8i8e Tri-Mode internal/external Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering internal connectivity and external scalability, proven flexibility, performance and RAID data protection for a range of server storage applications.

Broadcom’s Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.
  • Connect up to 255 SAS/SATA devices or 24 NVMe devices per controller
  • Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements
  • Support critical, high-bandwidth applications with PCIe® 3.1 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with CacheVault® flash cache protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Ondersteunde opslagstationinterfaces*
SAS, SATA
Hostinterface*
PCI Express x8
PCI Express slots versie
3.1

Prestatie

Soorten RAID*
0, 1, 5, 6, 10, 50, 60
RAID Level Migratie
Ja
Overdrachtssnelheid
12 Gbit/s
SSD-ondersteuning
Ja
Intern geheugen
2096 MB
Intern geheugentype
DDR4
Chipset
SAS3516
S.M.A.R.T. support
Ja
Number of devices supported
255
Online Capaciteit vergroting
Ja
Mean time between failures (MTBF)
3000000 uur
Certificering
AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE

Energie

Spanning
3.3, 12 V

Energie

Stroomverbruik (typisch)
17,71 W

Minimale systeemeisen

Ondersteunt Windows
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 55 °C
Temperatuur bij opslag
-45 - 105 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
155,7 mm
Diepte
68,9 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Overige specificaties

Aansluiting(en)
2 x Mini-SAS HD SFF8644, 2 x Mini-SAS HD x4 SFF-8643
Aantal poorten
16
