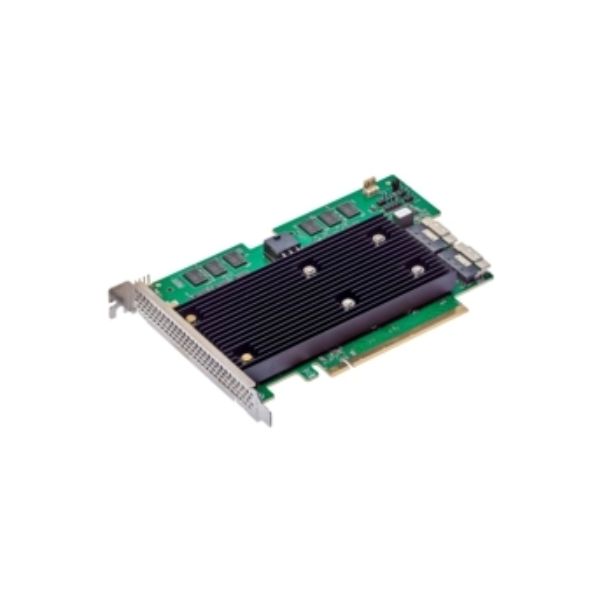

Broadcom MegaRAID 9670W-16i RAID controller PCI Express x16 4.0 6 Gbit/s

Broadcom MegaRAID 9670W-16i, SAS, SATA, PCI Express x16, 0, 1, 5, 6, 10, 50, 60, 6 Gbit/s, MD2, 16 kanalen

Ruim op voorraad

Fabrikant Broadcom
MPN 05-50113-00
EAN 0830343007776
€ 1.508,00 excl. BTW

Broadcom MegaRAID 9670W-16i RAID controller PCI Express x16 4.0 6 Gbit/s

The MegaRAID 9600 series is the third generation of Broadcom’s industry leading Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency, and 60x increase in performance during rebuilds over the previous generation.

The MegaRAID 9670W-16i based on the SAS4116W RAID-on-Chip (RoC) delivers more than 4x increase in RAID5 Random Write Ops and twice the bandwidth over the previous generation. The 9670W-16i’s advanced thermal solution enables these major performance enhancements without increasing airflow requirements when compared to previous generation adapters. Users can incorporate the 9670W-16i into existing platforms to enable breakthrough SSD performance without burdening the system with additional cooling and airflow requirements.
  • x16 PCIe Gen 4.0 Host Interface
  • Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
  • SFF-8654 (SlimSAS) x8 connectors
  • Form-factor friendly cable exit
  • Hardware Secure Boot and SPDM Attestation support
  • Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
  • SFF-TA-1005 Universal Bay Management (UBM) Ready
  • Add more protection and peace of mind with CacheVault flash cache protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Ondersteunde opslagstationinterfaces*
SAS, SATA
Hostinterface*
PCI Express x16
PCI Express slots versie
4.0
Interne SAS-poorten
2

Prestatie

Soorten RAID*
0, 1, 5, 6, 10, 50, 60
Overdrachtssnelheid
6 Gbit/s
Vormfactor
MD2
SSD-ondersteuning
Ja
S.M.A.R.T. support
Ja
Number of devices supported
240
Aantal kanalen
16 kanalen
Mean time between failures (MTBF)
3000000 uur
Certificering
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)

Energie

Stroomverbruik (typisch)
25 W

Technische details

Duurzaamheidscertificaten
RoHS, WEEE

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Ondersteunde server operating systems
SUSE Linux Enterprise Server

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent

Gewicht en omvang

Breedte
155,6 mm
Diepte
111,1 mm

Overige specificaties

Andere ondersteundende systemen
VMware vSphere ESXi
