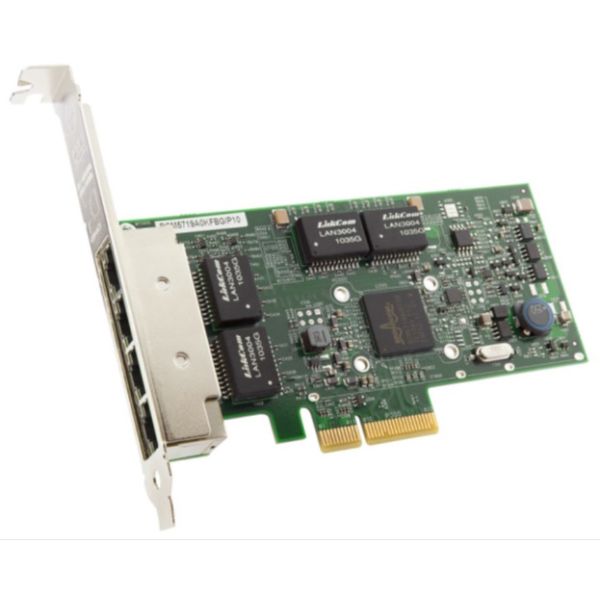

Broadcom BCM5719-4P Intern Ethernet 1000 Mbit/s
Broadcom BCM5719-4P, Intern, Bedraad, PCI Express, Ethernet, 1000 Mbit/s
Ruim op voorraad
Fabrikant
Broadcom
MPN
BCM95719A1904AC
EAN
0650861000000
€ 106,00
excl. BTW
€ 106,00
excl. BTW
excl. BTW
Broadcom BCM5719-4P Intern Ethernet 1000 Mbit/s
Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.
The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare® NetQueue and Microsoft® VMQ technologies.
The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.
The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare® NetQueue and Microsoft® VMQ technologies.
The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.
- Energy Efficient Ethernet compliant with IEEE Std 802.3az-2010
- IEEE 802.3ap Clause 73 auto-negotiation
- Quad 10/100/1000BASE-T full-duplex/half-duplex MACs
- Virtualization support with VMware NetQueue and Microsoft VMQ
- Wake-on-LAN support
- Energy Efficient Ethernet (EEE)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
4
PCI versie
2.0
Netwerk
Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Wake-on-LAN
Ja
Full duplex
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
1500
Design
Component voor*
Server
Intern*
Ja
Minimale systeemeisen
Andere ondersteundende systemen
Novell Open Enterprise Server 11, VMware vSphere 5.0+
Ondersteunde server operating systems
Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Duurzaamheid
Duurzaamheidscertificaten
CE, RoHS
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
