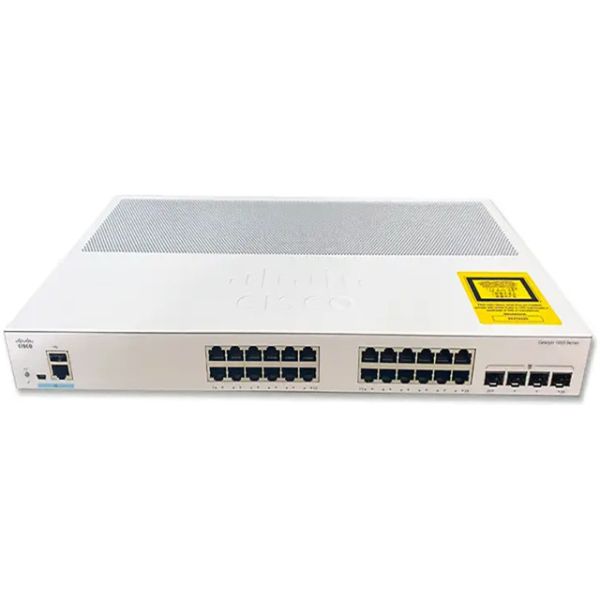

Cisco Catalyst C1000-24T-4G-L netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Grijs

Cisco Catalyst C1000-24T-4G-L, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex

Ruim op voorraad

Fabrikant Cisco
MPN C1000-24T-4G-L
EAN 0889728248525
€ 614,00 excl. BTW

Cisco Catalyst C1000-24T-4G-L netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Grijs

Simplicity, flexibility, and security

Cisco Catalyst 1000 Series switches provide enterprise-grade network access sized for small businesses. With a wide range of Power over Ethernet (PoE) and port combinations, these easy-to-manage switches provide the performance a modern small office needs.

Quiet and compact
The compact, fanless design means Catalyst 1000 switches can hide in plain sight in open-plan spaces.

Simplified management
Catalyst 1000 switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.

Enhanced security
With Catalyst 1000 switches' larger-scale access-control tables and additional security features, you can segment traffic for greater security.

Power over Ethernet
With a range of PoE options featuring Perpetual PoE, Catalyst 1000 switches make installing IoT devices as easy as plugging in cables.

Compare Catalyst 1000 models
The Catalyst 1000 Series switch platform provides a range of options to fulfill almost any small-business network’s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring.
  • 4 SFP or SFP+ uplinks
  • Fanless available
  • Up to 370W PoE
  • Over-the-air Bluetooth access

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic-classificatie
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
MIB-ondersteuning

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
4
Console port
RJ-45/Mini-USB
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support*
Nee
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
56 Gbit/s
Verzending snelheid
41,67 Mpps
MAC-adrestabel*
16000 entries
Statische route
Ja
Aantal statische routes
16
Jumbo Frames ondersteuning
Ja
Jumbo frames
10240

Beveiliging

DHCP-functies
DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
IGMP-vermeldingen
1024
SSH/SSL support
Ja

Beveiliging

Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Webgebaseerde authenticatie
Authenticatie type
RADIUS

Multicast-functies

Multicast-ondersteuning
Ja
IPv4-multicast-vermeldingen
1024
IPv6-multicast-vermeldingen
1024

Design

Kleur van het product
Grijs
LED-indicatoren
Ja

Prestatie

Type processor
Ja
Processormodel
ARM7
Frequentie van processor
800 MHz
Type geheugen
DRAM
Intern geheugen
512 MB
Flash memory
256 MB
Mean time between failures (MTBF)
2026793 uur

Energie

AC-ingangsspanning
110 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 4500 m

Gewicht en omvang

Breedte
444,5 mm
Diepte
240 mm
Hoogte
44 mm
Gewicht
2,63 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
