Cisco Catalyst C9300-48U-E netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grijs

Cisco Catalyst C9300-48U-E, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Nog 1 beschikbaar (bel voor reservering)

Fabrikant Cisco

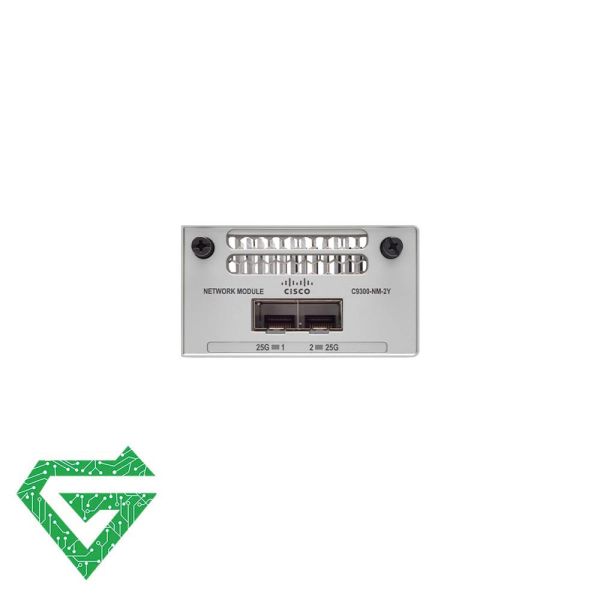

MPN C9300-NM-2Y=
EAN 0889728035729
€ 1.009,00
€ 742,00 excl. BTW

Cisco Catalyst C9300-48U-E netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grijs

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access
(SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The foundation of Software-Defined Access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA™) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
MIB-ondersteuning

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Full duplex
Ja
Routing entries
32000
VLAN=ondersteuning
Ja
Virtuele LAN-functies
VLAN Identifier ( VLAN ID)
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
256 Gbit/s
Verzending snelheid
190,48 Mpps
MAC-adrestabel*
32000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9198
Packet buffergeheugen
16 MB

Beveiliging

DHCP-functies
DHCP snooping

Beveiliging

Access Control List (ACL)
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Grijs

Prestatie

Intern geheugen
8000 MB
Flash memory
16000 MB

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Hoogte, in bedrijf
0 - 3000 m

Gewicht en omvang

Breedte
445 mm
Diepte
445 mm
Hoogte
44 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
