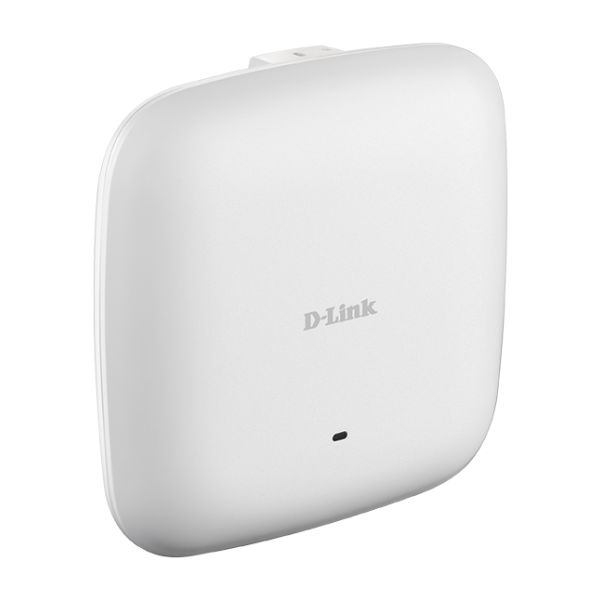

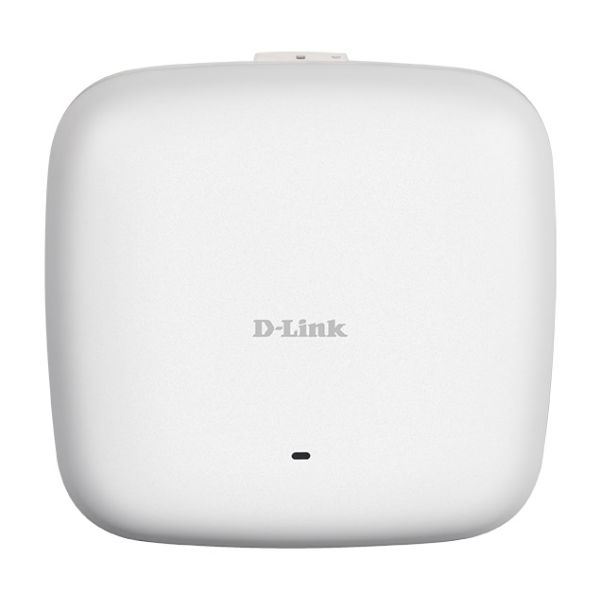

D-Link DAP-2680 draadloos toegangspunt (WAP) 1750 Mbit/s Wit Power over Ethernet (PoE)

D-Link DAP-2680, 1750 Mbit/s, 2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at,..., 26,5 dBmW, 64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2,..., 12 V

Ruim op voorraad

MPN DAP-2680
EAN 0790069438950
€ 282,00 excl. BTW

D-Link DAP-2680 draadloos toegangspunt (WAP) 1750 Mbit/s Wit Power over Ethernet (PoE)

The DAP‑2680 Wireless AC1750 Wave 2 Dual‑Band PoE Access Point features cutting‑edge Wave 2 technology that brings greater speeds, efficiency, and security to your wireless customers. Perfect for small to medium business or enterprise environments.

Be the best with Wave 2
Boost your business network to maximum wireless signal rates of up to 450 Mbps over the 2.4 GHz band, and 1300 Mbps over the 5 GHz band.

Beamforming with MU‑MIMO
Beamforming focuses the Wi-Fi signal to improve both range and connection strength so your clients can enjoy a superior Wi-Fi experience. Built-in Multiple-Input and Multiple-Output (MU-MIMO) technology gets high-bandwidth Wi-Fi signals to multiple devices simultaneously, for faster data distribution and efficiency.

The Perfect Fit for Your Network
Multiple operational modes allow you to select the DAP-2680 to operate as an access point, a Wireless Distribution System (WDS), a WDS with access point, or a wireless client.

Business Quality of Service
The Wi-Fi Multimedia (WMM) and Quality of Service (QoS) features make it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2680 to automatically prioritise network traffic. Customised priority rules can be adjusted through the web GUI. AP Load Balancing limits the maximum number of users per access point to ensure maximum performance.

Easy‑mount setup

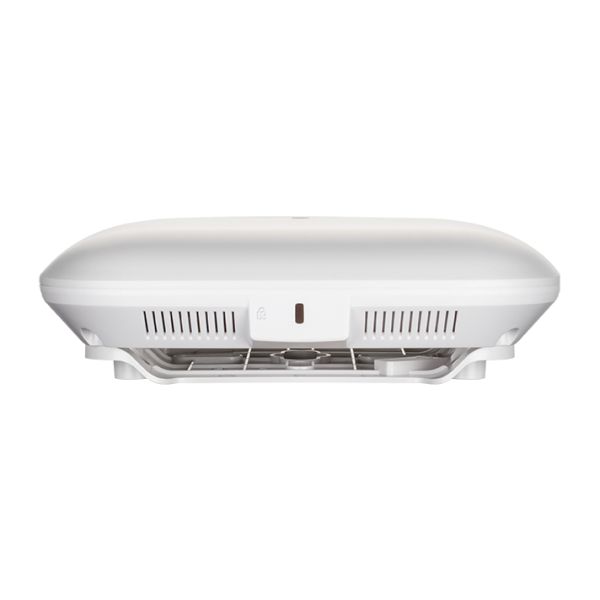

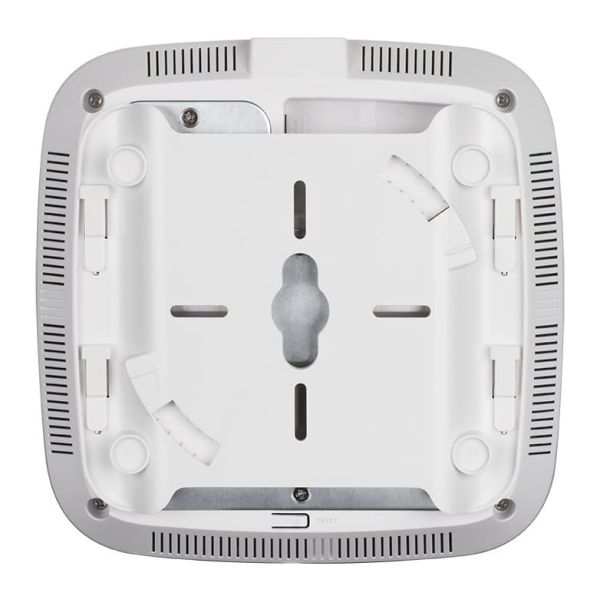

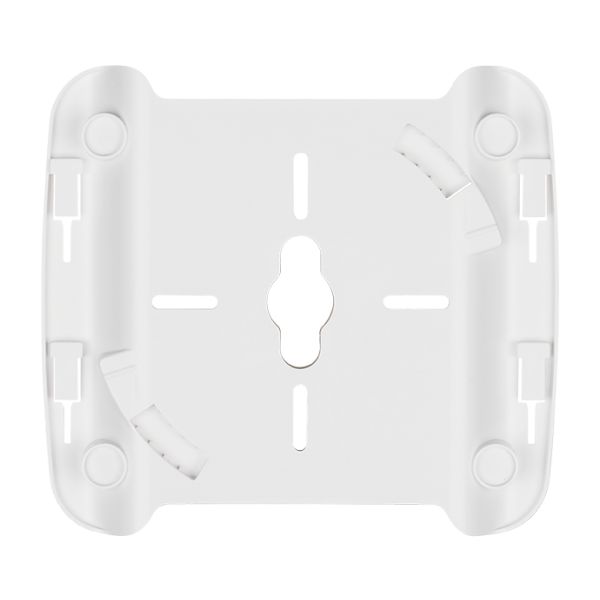

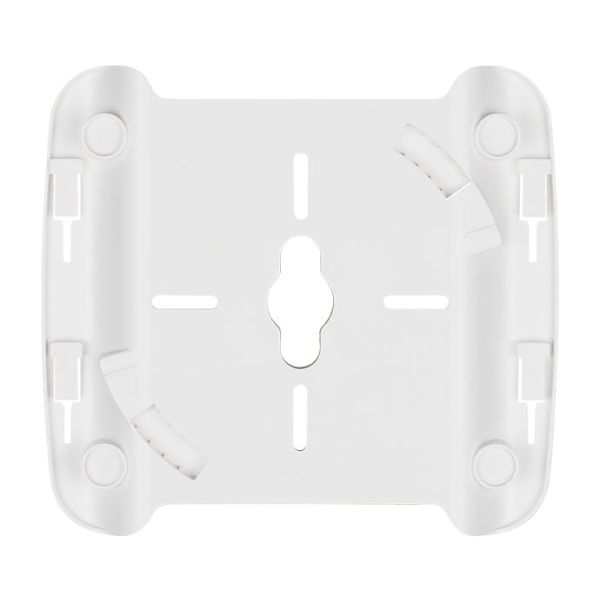

It can be ceiling mounted, wall mounted or placed on a desk. Integrated 802.3at Power over Ethernet (PoE) enables the device to be deployed easily and in more areas, where power outlets are not readily available.

Corporate‑Class Security
Secure your business network with Personal and Enterprise versions WPA2 (802.11i), with support for RADIUS server backend or a built‑in internal RADIUS server. MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling further protect your wireless network.
It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, it supports Network Access Protection (NAP), a feature of Windows Server® 2008 and upwards, allowing network administrators to define multiple levels of network access based on an individual client’s needs.

D‑Link WiFiManager
Control from a central location up to a thousand access points anywhere in the world, with easy-to-use management controls.

Reveal compelling insights into your business network, push out configurations and organise your network so it always runs at optimal performance.

Guaranteed round‑the‑cloud tech response, even on weekends & bank holidays
Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.
  • 802.11ac Wave 2 wireless, up to 1.75 Gbps1
  • MU-MIMO with beamforming
  • Band steering

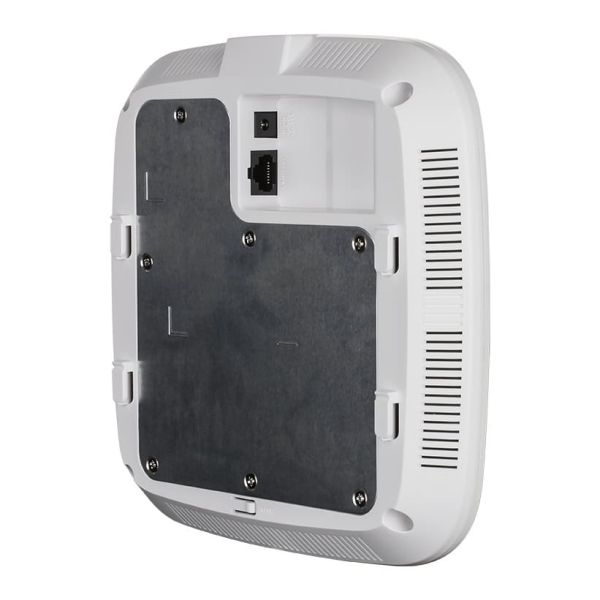

  • Gigabit PoE-capable LAN port
  • AP Array utility support
  • Free D-Link Central WiFiManager

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
1750 Mbit/s
Frequentieband
2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Zendvermogen
26,5 dBmW

Beveiliging

Ondersteunde beveiligingsalgoritmen*
64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
MAC adres filtering
Ja

Beheerfuncties

Web-gebaseerd management
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja
Spanning
12 V
Output current
2 A

Design

Plaatsing*
Tafel, Muur
Kleur van het product*
Wit
LED-indicatoren
Stroom, Status
Certificering
FCC, UL, CE, FCC, UL
Intern
Nee

Antenne

Antennas quantity
3
Antenne versterkingsniveau (max)
4,2 dBi

Technische details

(Binnenste) verzendverpakking lengte
59,9 cm
(Binnenste) verzendverpakking breedte
29,3 cm
(Binnenste) verzendverpakking hoogte
24 cm
Nettogewicht transportverpakking
3,44 kg

Technische details

Producten per (binnenste) verzendverpakking
5 stuk(s)
Pallet brutogewicht (lucht)
311,4 kg
Aantal dozen per pallet (lucht)
48 stuk(s)
Aantal per pallet (lucht)
240 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
2,06 m
Pallet brutogewicht (zee)
311,4 kg
Aantal dozen per pallet (zee)
48 stuk(s)
Producten per pallet (zee)
240 stuk(s)
Pallethoogte (zee)
2,06 m
(Binnenste) verzendverpakking gewicht
6,05 kg

Gewicht en omvang

Breedte
190 mm
Diepte
190 mm
Hoogte
44,8 mm
Gewicht
580 g

Verpakking

Breedte verpakking
205 mm
Diepte verpakking
270 mm
Hoogte verpakking
112 mm
Gewicht verpakking
1,08 kg

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 65 °C
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
