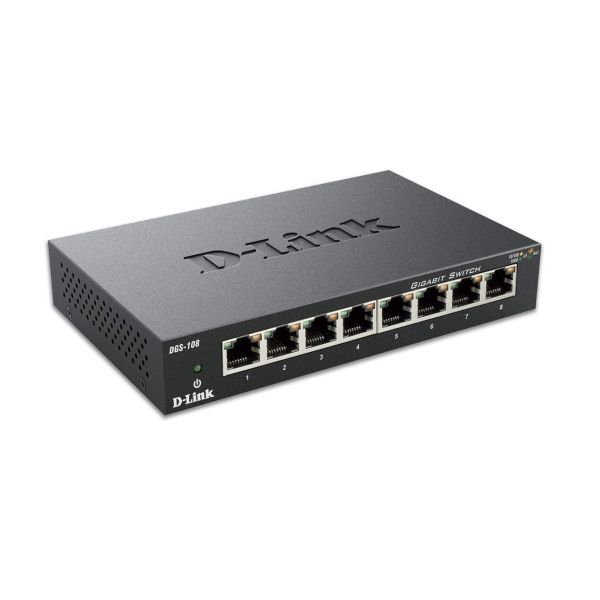

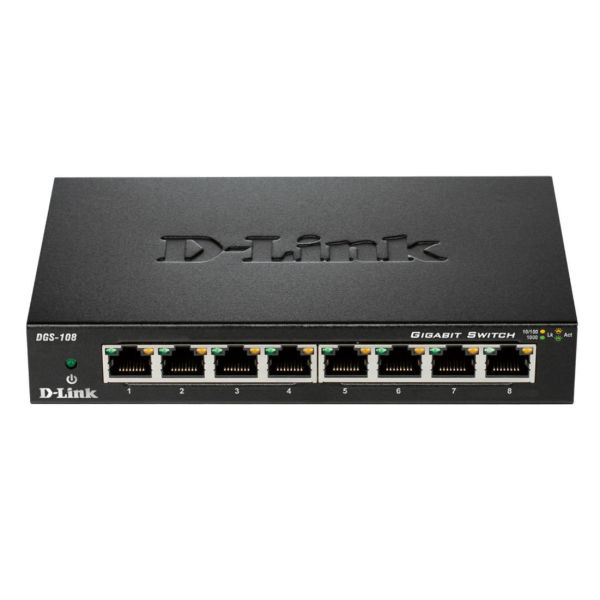

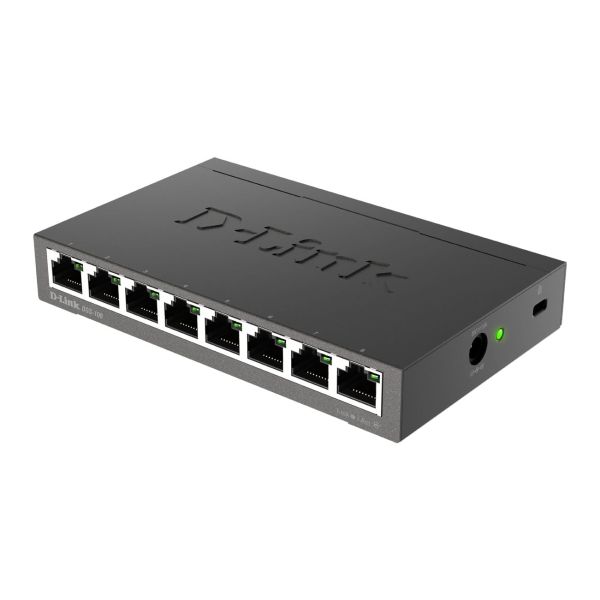

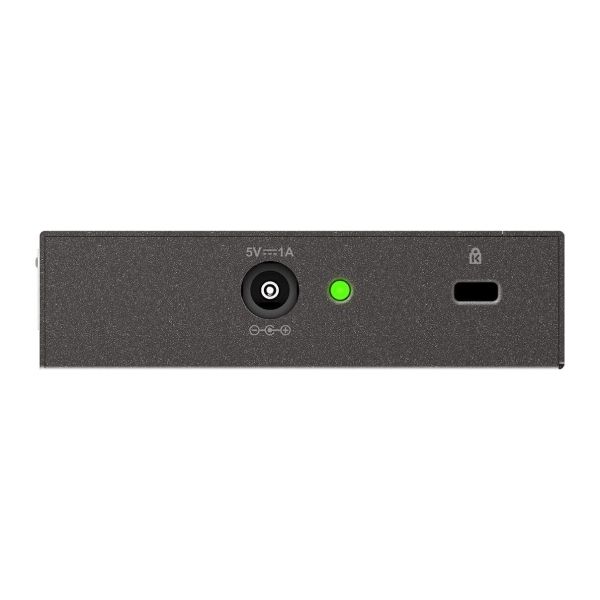

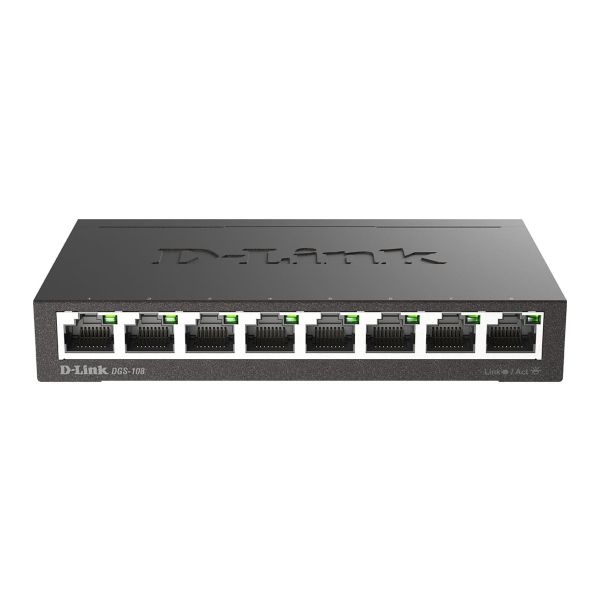

D-Link DGS-108 netwerk-switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Zwart

D-Link DGS-108, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex

Niet op voorraad

MPN DGS-108
EAN 0790069368240
€ 36,00 excl. BTW

D-Link DGS-108 netwerk-switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Zwart

Effortless Gigabit Networking

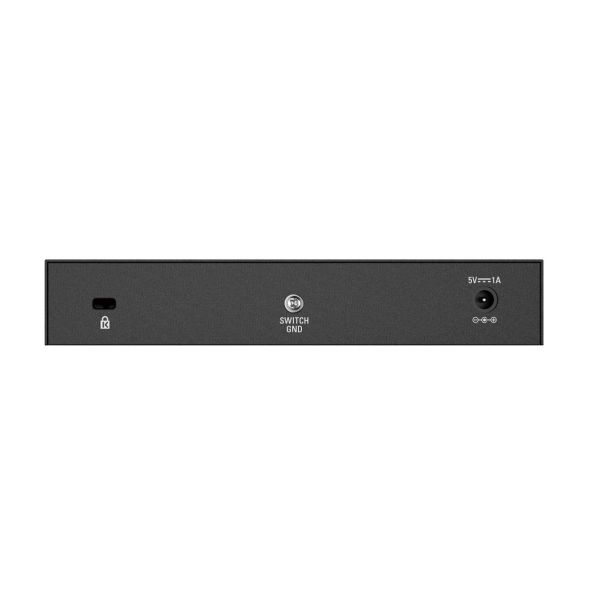

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-108 8 Port Gigabit Switch is ideal for transferring files quickly. Featuring easy access front Ethernet ports with two color LED indicators per port to quickly distinguish link status. The switch supports IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch incorporates a Kensington Security Slot on the rear panel allowing users to securely fasten the unit to a table or desk.

Think Green
The DGS-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Working together these features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.

Environmentally Friendly
The DGS-108 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.
  • Quality of Service (QoS)
  • Full duplex
  • Datastroombeheer
  • Auto MDI/MDI-X
  • Store-and-forward
  • Jumbo Frames ondersteuning
  • MAC adres filtering
  • Kleur van het product - Zwart

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Koperen ethernetbekabelingstechnologie
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja

Data-uitwisseling

Ondersteunde data-overdrachtsnelheden
10/100/1000 Mbps
Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Max. overdrachtssnelheid
1 Gbit/s
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
0,128 MB

Beveiliging

MAC adres filtering
Ja

Design

Rack-montage*
Nee

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Link, Stroom, Ja
Certificering
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS

Prestatie

Mean time between failures (MTBF)
2053751 uur

Energie

Stroom
1 A
Ingangsspanning
5 V
Stroomverbruik (typisch)
4,5 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
9,548 BTU/h

Gewicht en omvang

Gewicht
440 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Overdrachtssnelheid
2000 Mbit/s
Afmetingen (B x D x H)
162 x 102 x 28 mm
Connectiviteitstechnologie
Bedraad
