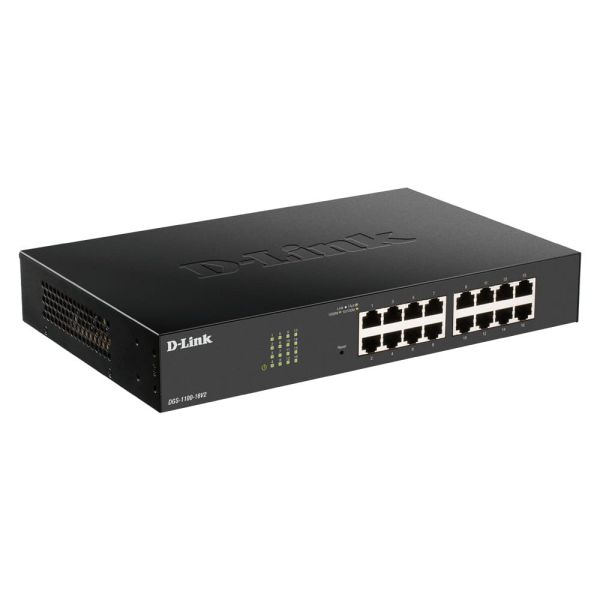

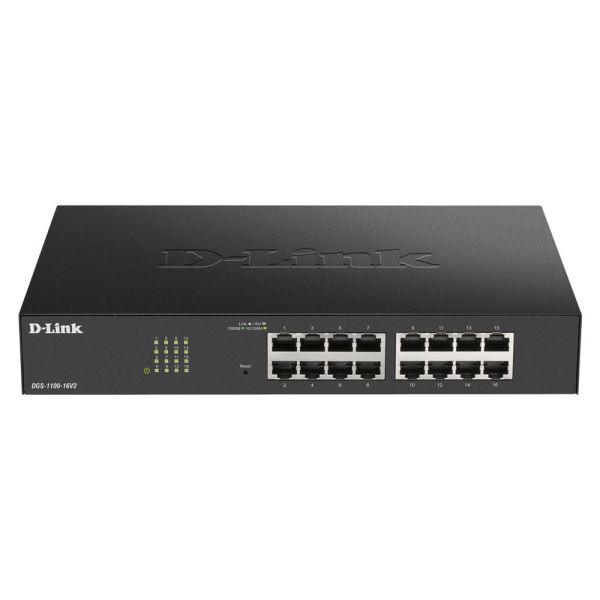

D-Link DGS-1100-16V2 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Zwart

D-Link DGS-1100-16V2, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Ruim op voorraad

MPN DGS-1100-16V2/E
EAN 0790069467820
€ 115,00 excl. BTW

D-Link DGS-1100-16V2 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Zwart

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity

Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check

Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
  • Fanless design for silent operation
  • Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
  • Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
  • Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
  • IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
  • Innovative energy saving features are good for your budget, as well as the environment
  • Get up and going quickly with streamlined first-time setup and ongoing management

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Voice VLAN
Aantal VLANs
128

Data-uitwisseling

Switchingcapaciteit*
32 Gbit/s
Verzending snelheid
23,81 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Aantal wachtrijen
4
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet buffergeheugen
4,1 MB

Beveiliging

DHCP-functies
DHCP client

Beveiliging

IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP, SSL/TLS
Algoritmen wachtrijplanning
SPQ, Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Ja
Certificering
EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC

Prestatie

Type processor
Ja
Frequentie van processor
125 MHz
Type geheugen
DRAM
Flash memory
16 MB
Fanloos
Ja
Mean time between failures (MTBF)
710519 uur

Energie

AC-ingangsspanning
100 - 240 V
Vermogensverbruik (max)
10,1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 2000 m
Warmtedissipatie
34,46 BTU/h

Gewicht en omvang

Breedte
280 mm
Diepte
180 mm
Hoogte
44 mm
Gewicht
1,27 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
