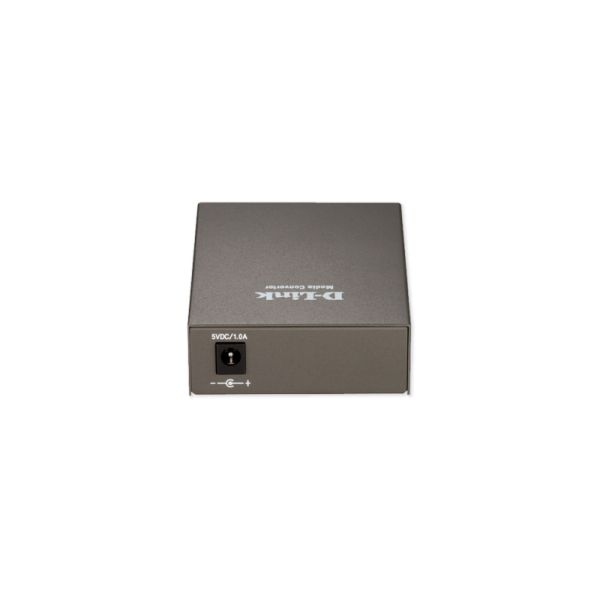

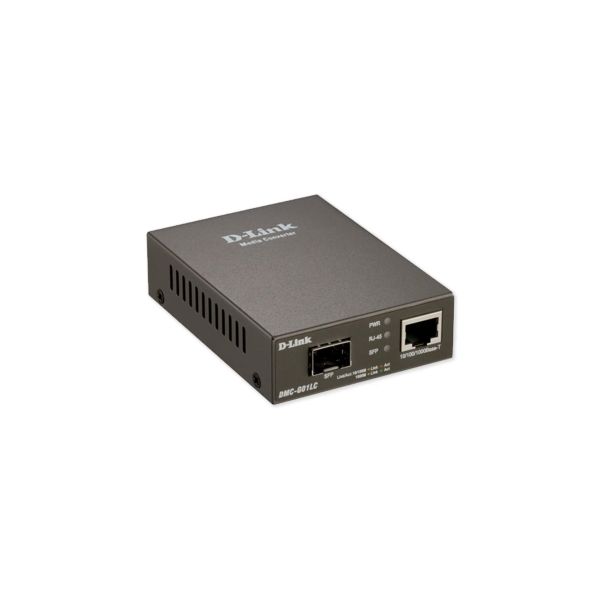

D-Link DMC-G01LC/E netwerk media converter 1000 Mbit/s Grijs

D-Link DMC-G01LC/E, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 10,100,1000 Mbit/s, SFP, Bedraad

Ruim op voorraad

MPN DMC-G01LC/E
EAN 0790069415982
€ 66,00 excl. BTW

D-Link DMC-G01LC/E netwerk media converter 1000 Mbit/s Grijs

D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line.

SFP Optical Transceivers for Maximum Flexibility
The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.

10/100/1000 Copper Speeds
The copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps.

Plug & Play
The DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto MDI/MDI-X
Ja

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SFP
Aansluiting voor netstroomadapter
Ja

Prestatie

Mean time between failures (MTBF)
506711 uur

Design

Intern*
Nee
LED-indicatoren
Ja
Kleur van het product
Grijs
Veiligheid
LVD, UL/cUL
Certificering
CE, FCC, VCCI, BSMI

Energie

Ingangsspanning
230 - 240 V
Spanning
5 V
Output current
1 A

Gewicht en omvang

Breedte
70 mm
Diepte
95 mm
Hoogte
25 mm

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Verpakking

Breedte verpakking
101 mm
Diepte verpakking
134 mm
Hoogte verpakking
95 mm
Gewicht verpakking
358 g

Logistieke gegevens

(Binnenste) verzendverpakking lengte
50,4 cm
(Binnenste) verzendverpakking breedte
29,4 cm
(Binnenste) verzendverpakking hoogte
23,6 cm
Nettogewicht transportverpakking
7,16 kg
Producten per (binnenste) verzendverpakking
20 stuk(s)
Pallet brutogewicht (lucht)
341,1 kg
Aantal dozen per pallet (lucht)
40 stuk(s)
Aantal per pallet (lucht)
800 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
131 cm
Pallet brutogewicht (zee)
534,6 kg
Aantal dozen per pallet (zee)
64 stuk(s)
Producten per pallet (zee)
1280 stuk(s)
Pallethoogte (zee)
2,02 m
(Binnenste) verzendverpakking gewicht
8,04 kg
Code geharmoniseerd systeem (HS)
85176990
