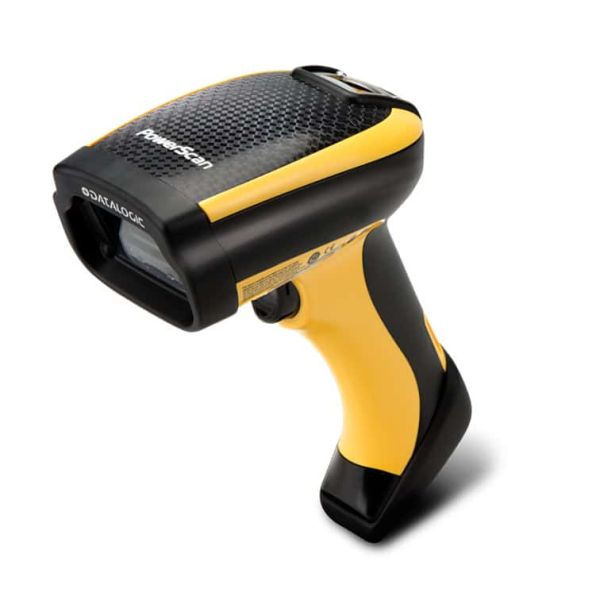

Datalogic PowerScan PM9100 Draagbare streepjescodelezer 1D LED Zwart, Geel
Datalogic PowerScan PM9100, Draagbare streepjescodelezer, 1D, LED, Codabar, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1..., -45 - 45°, -75 - 75°
Ruim op voorraad
Fabrikant
Datalogic
MPN
PM9100-433RBK10
EAN
5706998792501
€ 679,00
excl. BTW
€ 679,00
excl. BTW
excl. BTW
Datalogic PowerScan PM9100 Draagbare streepjescodelezer 1D LED Zwart, Geel
The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Scannen
Soort*
Draagbare streepjescodelezer
Soort scanner*
1D
Type beeldsensor*
LED
Ondersteunde streepjescodes (1D)*
Codabar, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C.
2D ( matrix en gestapeld ) barcodes ondersteund*
Niet ondersteund
Tilt lees-hoek
-45 - 45°
Pitch lees-hoek
-75 - 75°
Yaw lees-hoek
-70 - 70°
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad en draadloos
Standaard interfaces*
USB
Aansluitbereik
50 m
Frequentie
433 MHz
Prestatie
Internationale veiligheidscode (IP)
IP65
Veiligheidsfunties
Schokbestendig
LED-indicatoren
Ja
Kleur van het product*
Zwart, Geel
Energie
Type stroombron*
Batterij/Accu
Batterijtechnologie
Lithium-Ion (Li-Ion)
Energie
Capaciteit van de accu/batterij
2150 mAh
Aantal lezingen per inzet
50000
Levensduur batterij
4 uur
Ingangsspanning
10 - 30 V
Stroomverbruik
500 mA
Gewicht en omvang
Breedte
212 mm
Diepte
110 mm
Hoogte
74 mm
Gewicht*
405 g
Verpakking
Meegeleverde kabels
USB
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Technische details
Duurzaamheidscertificaten
RoHS
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84716070
