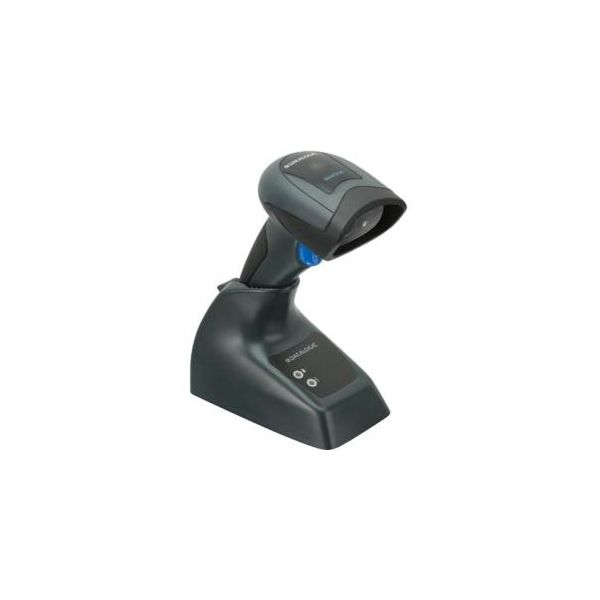

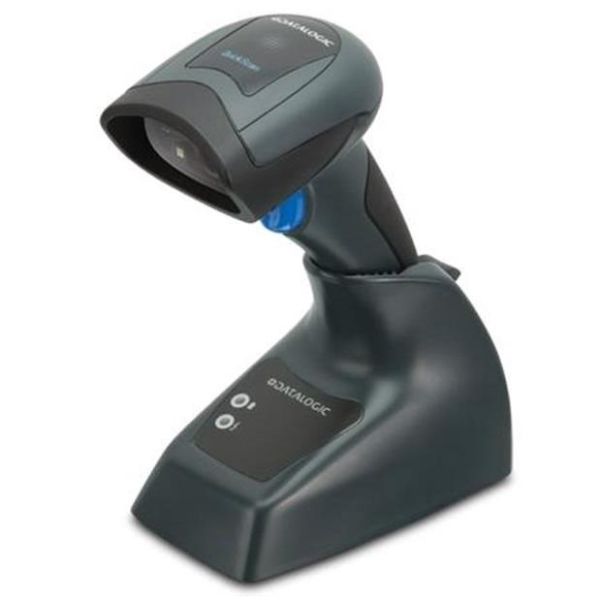

Datalogic QuickScan Mobile QM2131 Draagbare streepjescodelezer 1D Zwart

Datalogic QuickScan Mobile QM2131, Draagbare streepjescodelezer, 1D, 400 lezingen/s, 650 nm, -45 - 45°, -65 - 65°

Ruim op voorraad

Fabrikant Datalogic
MPN QM2131-BK-433
EAN 5712505603505
€ 140,00 excl. BTW

Datalogic QuickScan Mobile QM2131 Draagbare streepjescodelezer 1D Zwart

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QM2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Datalogic's STAR 2.0 Cordless System for narrow band 433 Mhz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.

Features
- Extra-wide scan angle and extra-long scan line
- Sharp and highly visible scan line
- Enhanced depth of field for general purpose scanning applications
- Datalogic's STAR2.0 Cordless System™ with up to 25.0 m / 82.0 ft range
- Secure radio communications, interference-free with low sensitivity to obstacles
- Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
- New battery package allows simultaneous change of charging contacts during battery replacement
- Alternative battery recharging through USB /microUSB cable
- Datalogic's patented 'Green Spot' technology for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Soort scanner*
1D
Lees-snelheid (max)
400 lezingen/s
Golflengte
650 nm
Tilt lees-hoek
-45 - 45°
Pitch lees-hoek
-65 - 65°
Yaw lees-hoek
-70 - 70°

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Frequentie
433 MHz

Prestatie

Internationale veiligheidscode (IP)
IP42
Waarschuwingssignaal
Ja
Kleur van het product*
Zwart

Energie

Type stroombron*
Batterij/Accu
Batterijtechnologie
Lithium-Ion (Li-Ion)

Energie

Capaciteit van de accu/batterij
1400 mAh
Ingangsspanning
4.75 - 14 V

Gewicht en omvang

Breedte
91 mm
Diepte
41 mm
Hoogte
163 mm
Gewicht*
190 g
Gewicht basisstation
215 g

Verpakking

Meegeleverde kabels
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
