DeLOCK 62996 interfacekaart/-adapter Intern

DeLOCK 62996, PCIe, PCIe 1.0, Sunix 2212, 128 B, 4, 5, 6, 7, 8, 1, 1.5, 2

Ruim op voorraad

Fabrikant Delock
MPN 62996
EAN 4043619629961
€ 51,00 excl. BTW

DeLOCK 62996 interfacekaart/-adapter Intern

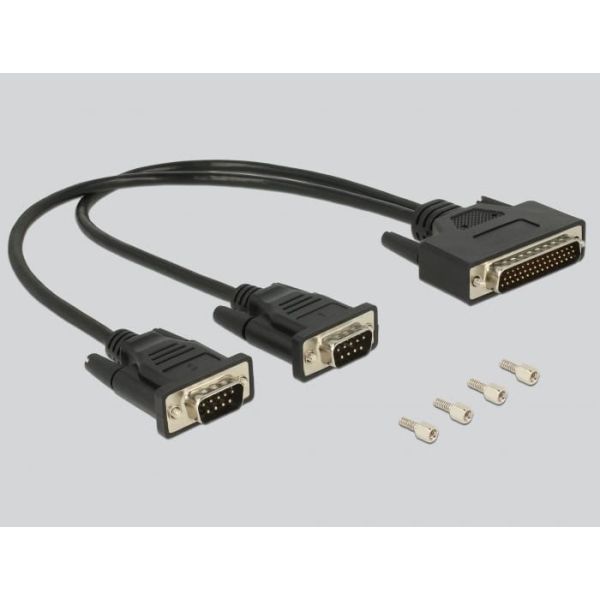

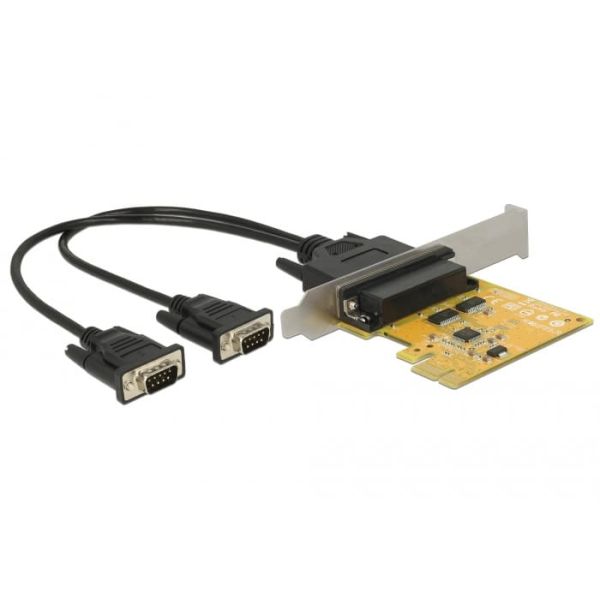

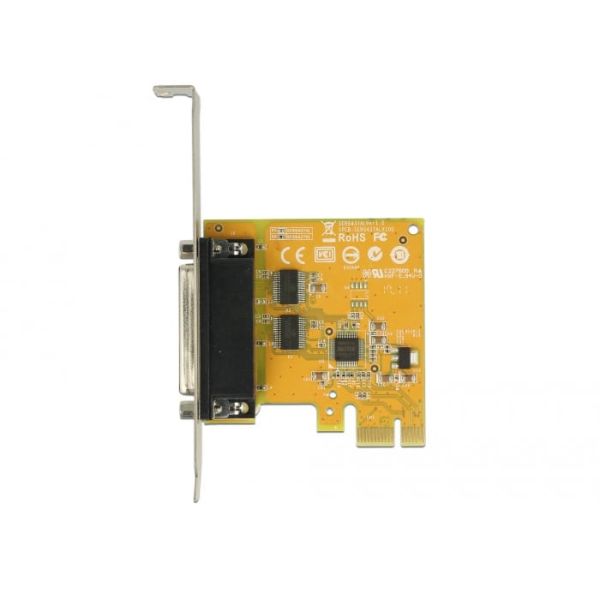

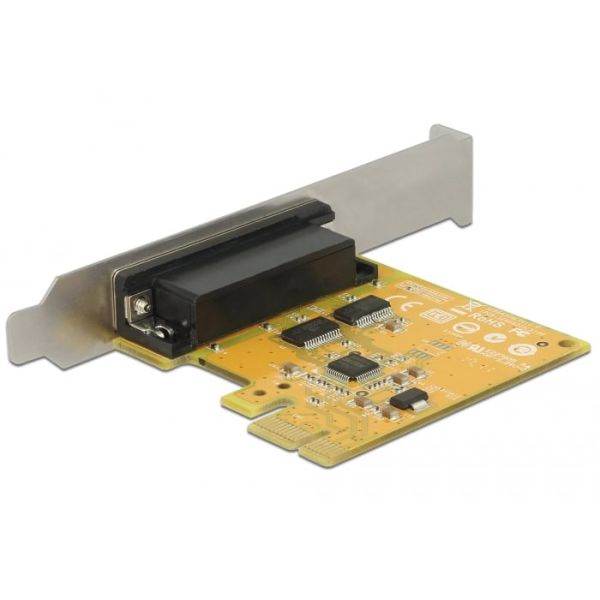

This PCI Express card by Delock expands the PC by two external serial RS-232 High-Speed ports. Different devices such as gateways, plotters, printers, line extender, dongles or embedded modules, field programmable gate arrays (FPGA), controllers etc. can be connected to this card. Included are thumbscrews for the individual serial ports, so either serial devices with screws or with nuts can be connected to the ports. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Uitbreidingskaartstandaard
PCIe 1.0

Design

Intern*
Ja

Kenmerken

Chipset
Sunix 2212
FIFO (First In, First Out)
128 B
Data bits
4, 5, 6, 7, 8
Stop bits
1, 1.5, 2
Datastroombeheer
Ja
Plug and play
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
88 mm
Diepte
65 mm
Hoogte
12 mm

Verpakking

Montagebeugels meegeleverd
Ja
Inclusief schroeven
Ja
Meegeleverde drivers
Ja
Gebruikershandleiding
Ja
Type verpakking
Doos

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
