DeLOCK 89911 kabel-connector DC Zwart, Nikkel

DeLOCK 89911, DC, Zwart, Nikkel, Kunststof, Nikkel/Goud, 2,5 mm, 5,5 mm

Ruim op voorraad

Fabrikant Delock
MPN 89911
EAN 4043619899111
€ 3,00 excl. BTW

DeLOCK 89911 kabel-connector DC Zwart, Nikkel

Description

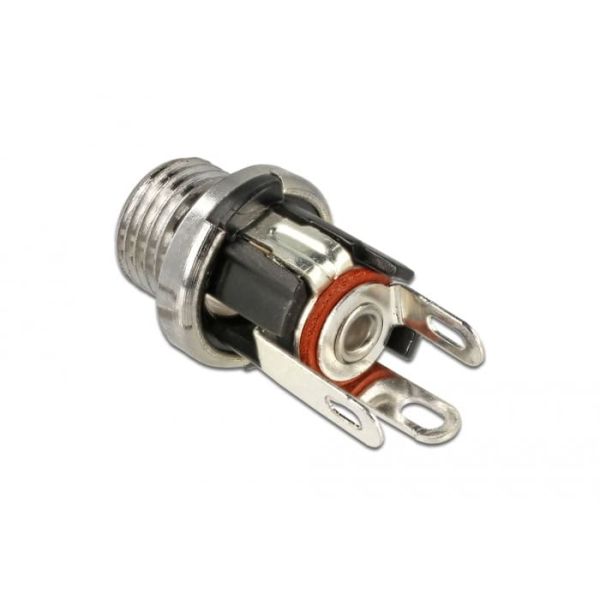

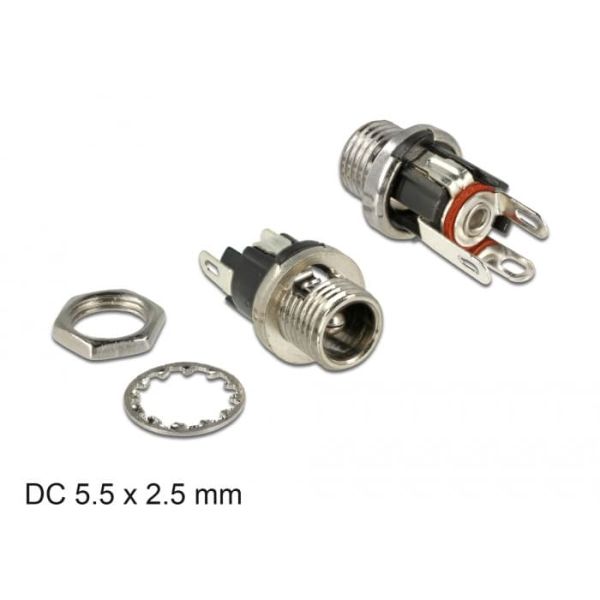

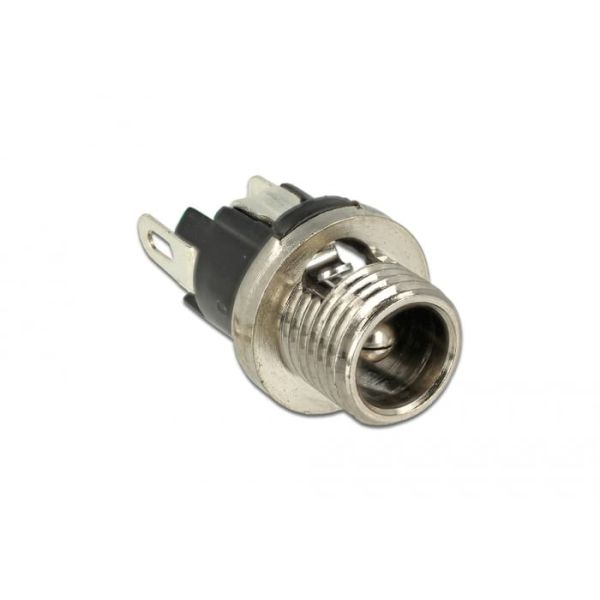

This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
  • Specification
  • Connectors:
  • 1 x DC 5.5 x 2.5 x 9.5 mm female >
  • 3 x solder connection
  • Plastic shell: PA66
  • Pin: copper nickel plated
  • Thread type: 5/16" x 32W
  • Mounting depth: ca. 15.5 mm
  • Mounting hole diameter: ca. 11.0 mm
  • Visible height when installed: ca. 5.7 mm
  • Specification of power connector
  • Dimensions:
  • inside: ø ca. 2.5 mm
  • outside: ø ca. 5.5 mm
  • Package content
  • DC female bulkhead

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Aansluiting(en)*
DC
Kleur van het product*
Zwart, Nikkel
Materiaal
Kunststof
Contact geleider materiaal
Nikkel/Goud

Gewicht en omvang

Binnen afmeting (diameter)
2,5 mm

Gewicht en omvang

Outer diameter
5,5 mm

Inhoud van de verpakking

Aantal per verpakking*
1 stuk(s)

Verpakking

Type verpakking
Polybag
