Digitus DA-8100 Draagbare streepjescodelezer 1D Lineair Zwart
Digitus DA-8100, Draagbare streepjescodelezer, 1D, Lineair, Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128..., -45 - 45°, 30 cm
Ruim op voorraad
Fabrikant
Digitus
MPN
DA-81001
EAN
4016032473633
€ 28,00
excl. BTW
€ 28,00
excl. BTW
excl. BTW
Digitus DA-8100 Draagbare streepjescodelezer 1D Lineair Zwart
High-resolution hand scanner for reliable use in retail and logistics
- Precise scanning of 1D barcodes (barcodes)
- High resolution: Scans high-resolution barcodes
- 200 scans per minute, bidirectional for reliable detection
- Suitable for barcodes of up to 90 characters
- Dust-protected and water-resistant (IP54)
- Ideal for retail, logistics, and commerce of all kinds
- Plug and Play – no additional driver necessary
- Silicon cover absorbs impacts and protects against damage
- Auditory and visual scan confirmation
The DIGITUS® 1D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per minute, this bidirectional scanner delivers ideal results. The manual scanner is suitable for high-resolution barcodes with up to 90 characters. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.
- Precise scanning of 1D barcodes (barcodes)
- High resolution: Scans high-resolution barcodes
- 200 scans per minute, bidirectional for reliable detection
- Suitable for barcodes of up to 90 characters
- Dust-protected and water-resistant (IP54)
- Ideal for retail, logistics, and commerce of all kinds
- Plug and Play – no additional driver necessary
- Silicon cover absorbs impacts and protects against damage
- Auditory and visual scan confirmation
The DIGITUS® 1D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per minute, this bidirectional scanner delivers ideal results. The manual scanner is suitable for high-resolution barcodes with up to 90 characters. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.
- 1D Scan
- Power consumption: 3.3 -5 V DC, 100 mA (1 µA while idle)
- Power supply: USB
- Scan type: bidirectional
- Sensor: Linear
- CPU: ARM 32-Bit Cortex
- Interface: USB
- Light source: 650 nm visual laser diode
- Trigger: Pushbutton
- Number of scans: 200 per second
- Error rate in bits: 1/5 million, 1/20 million
- Resolution: ≥3.3mil
- Scan width: 30 cm
- Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
- Scan angle: Angle of rotation ±30°, angle of inclination ± 45°, angle of declination ± 60°
- Decoding types: EAN-8, EAN-13, EAN-128, Code 39, Code 93, UPC, GS1 Databar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss extended, Industrial 25, Code 128, Codabar, Big Code
- Button cycle: 500,000 times
- Laser cycle: 10,000 times
- Compatible with Windows/Android/iOS/Mac/Linux systems
- Material: ABS + PC
- Protection type: IP54
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C

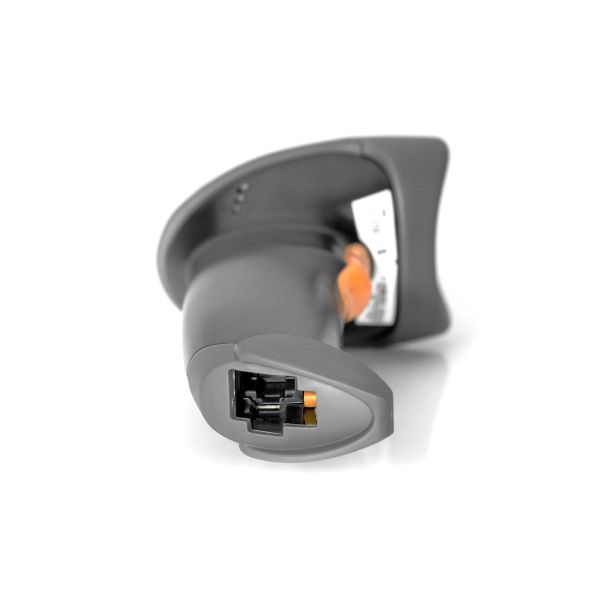

- Cable: 2 m (USB - RJ45)
- Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
- Weight: 110 g
- Color: Black/gray
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Scannen
Soort*
Draagbare streepjescodelezer
Soort scanner*
1D
Type beeldsensor*
Lineair
Ondersteunde streepjescodes (1D)*
Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, U.P.C.
2D ( matrix en gestapeld ) barcodes ondersteund*
Niet ondersteund
Tilt lees-hoek
-45 - 45°
Maximale scan breedte
30 cm
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Standaard interfaces*
RJ-45, USB
Snoerlengte
2 m
Prestatie
Materiaal behuizing
Acrylonitrielbutadieenstyreen (ABS), Polycarbonaat (PC)
Internationale veiligheidscode (IP)
IP54
Kleur van het product*
Zwart
Land van herkomst
China
Energie
Type stroombron*
USB
Energie
Ingangsspanning
5 V
Stroomverbruik
100 mA
Gewicht en omvang
Breedte
63 mm
Diepte
87 mm
Hoogte
165 mm
Gewicht*
110 g
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84716070
Overige specificaties
Lichtbron
650 nm
Compatibele besturingssystemen
Mac/Linux
Ondersteunt Windows
Ja
Ondersteunde mobiele besturingssystemen
Android, iOS
