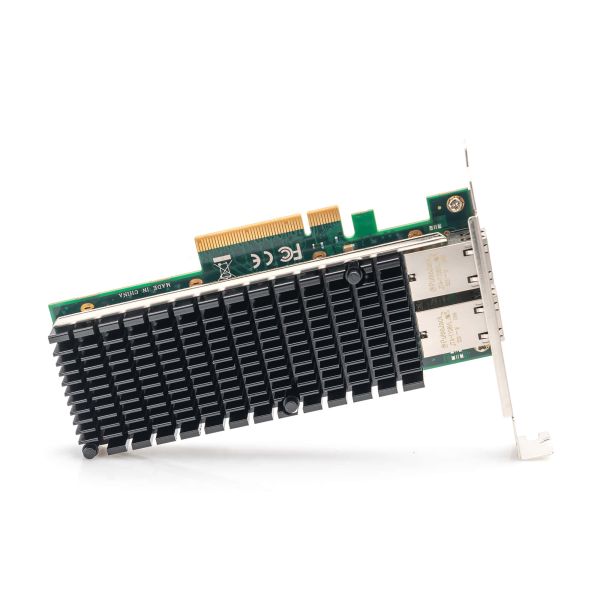

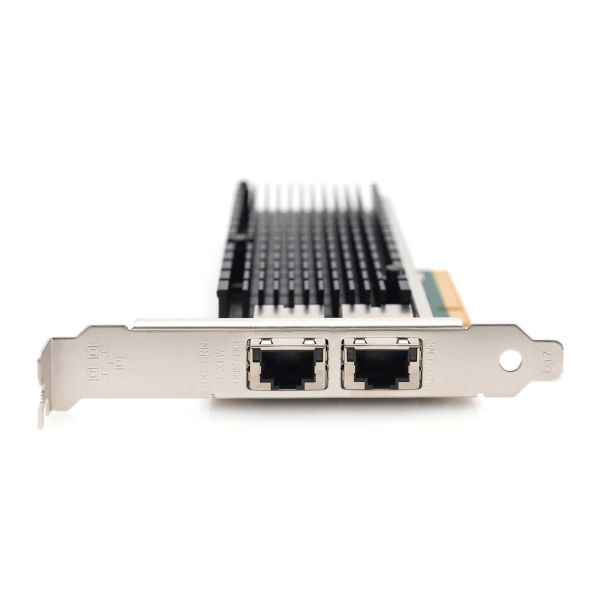

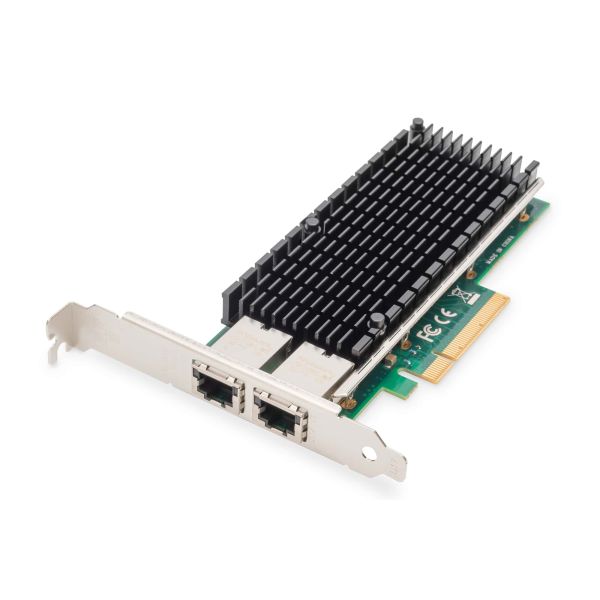

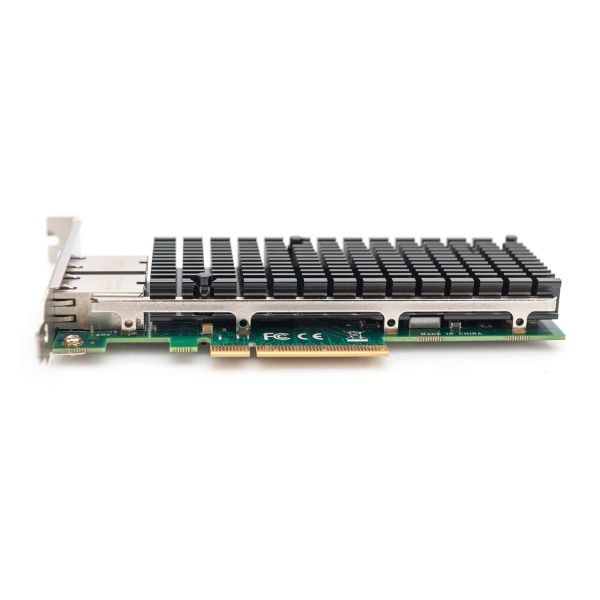

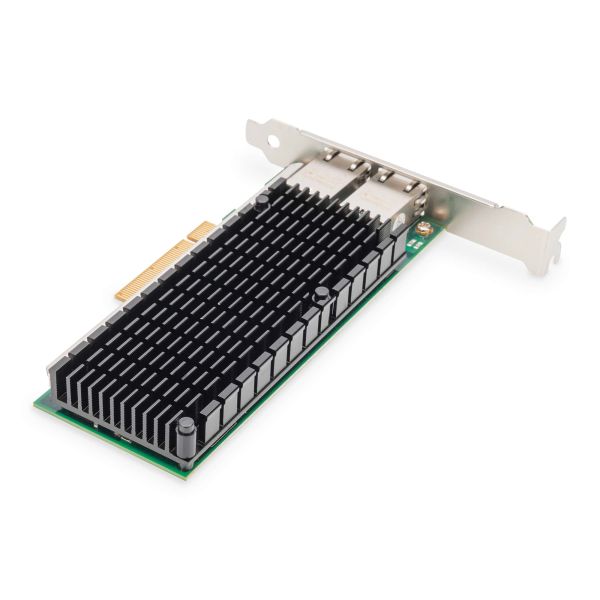

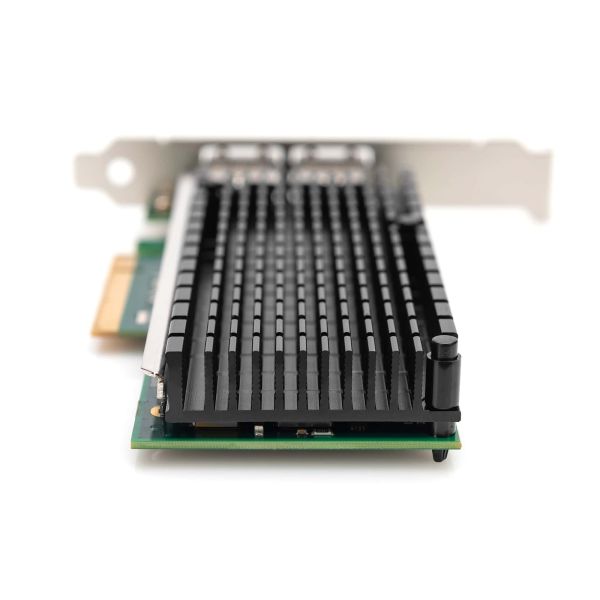

Digitus DN-10163 netwerkkaart Intern Ethernet 10000 Mbit/s

Digitus DN-10163, Intern, Bedraad, PCI Express, Ethernet, 10000 Mbit/s, Groen, Zilver

Nog 17 beschikbaar

Fabrikant Digitus
MPN DN-10163
EAN 4016032484950
€ 160,00 excl. BTW

Digitus DN-10163 netwerkkaart Intern Ethernet 10000 Mbit/s

10Gbps Dual Port Ethernet Server adapter, incl. low Profile brackets

- Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
- Standard CAT-6a cabling with RJ45 connectors
- Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
- Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
- Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
- Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
- Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS

DN-10163 is PCI-e 10Gbps Dual RJ45 Port Ethernet Network Card , based on INTEL X540 Chipset, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms.
10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning.
  • Standard CAT-6a cabling with RJ45 connectors
  • Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
  • Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
  • Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
  • Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
  • Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
  • Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS
  • Features Link Aggregation Control Protocol (LACP)
  • Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)
  • Dual Port 10GbE adapters
  • PCI Express v2.1,5.0 GT/s, x8 lanes
  • PXE, iSCSI, FCoE boot
  • Compatibility with Existing 1000BASE-T Networks Simplifies the Transition to 10GbE
  • Controller: Intel X540 BT2
  • "Network Standard Physical Layer Interfaces: Cat-6A 10G up to 100m, Cat-6 10G up to 55m
  • Jumbo Frame Support: Up to 9.5 KB
  • Network Virtualization: VMDq, PCI-SIG SR-IOV, Intel VT-c
  • IEEE 802.3an/ab and 10G Ethernet Specification Compliance

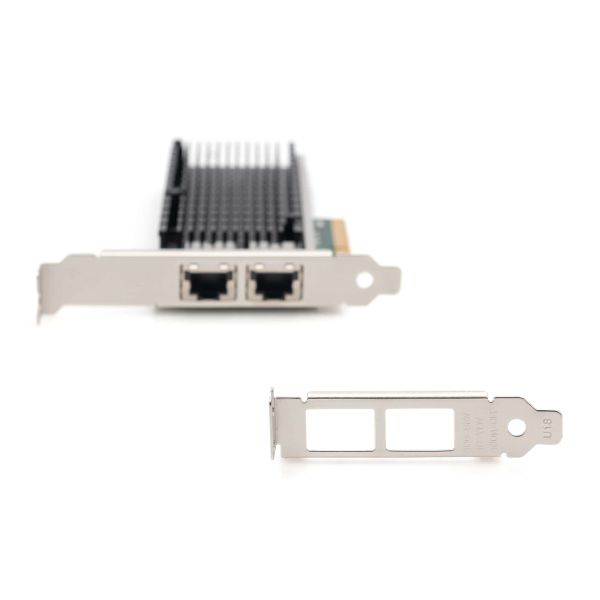

  • Low Profile and Full-Height bracket
  • System Requirements: FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10 / 11
  • System Requirements: One available PCI Express x1 slot

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
2
PCI versie
2.1
PCI Card form factor
Full-height (low-profile)

Netwerk

Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p
Ethernet LAN
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9,5
Datalink-protocollen
TCP/IP, UDP/IP, IPSec, iSCS
LAN controller
Intel® X540-BT2

Design

Component voor*
Server
Kleur van het product
Groen, Zilver
Intern*
Ja
LED-indicatoren
Ja
Land van herkomst
China

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 8, Windows 8.1

Minimale systeemeisen

Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2008, Windows Server 2012, Windows Server 2016

Gewicht en omvang

Breedte
155 mm
Diepte
20 mm
Hoogte
120 mm
Gewicht
170 g

Verpakking

Breedte verpakking
218 mm
Diepte verpakking
30 mm
Hoogte verpakking
155 mm
Gewicht verpakking
280 g

Inhoud van de verpakking

Montagebeugels meegeleverd
Ja
Ondersteunings-cd
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
84718000

Overige specificaties

Verpakkingsvolume
1013,7 cm³
