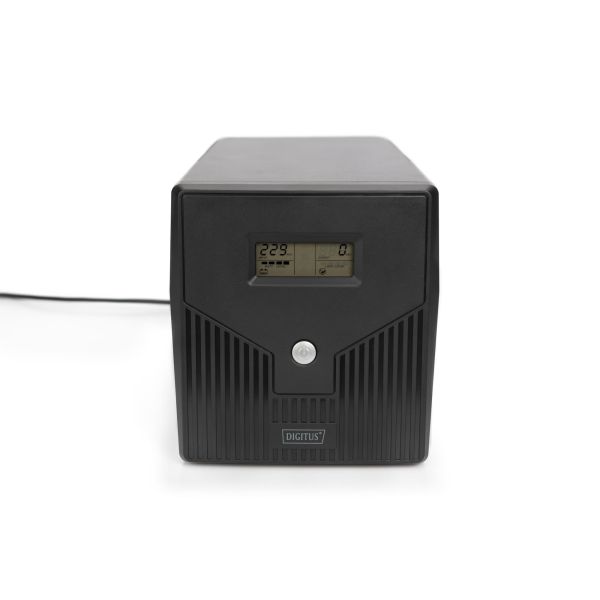

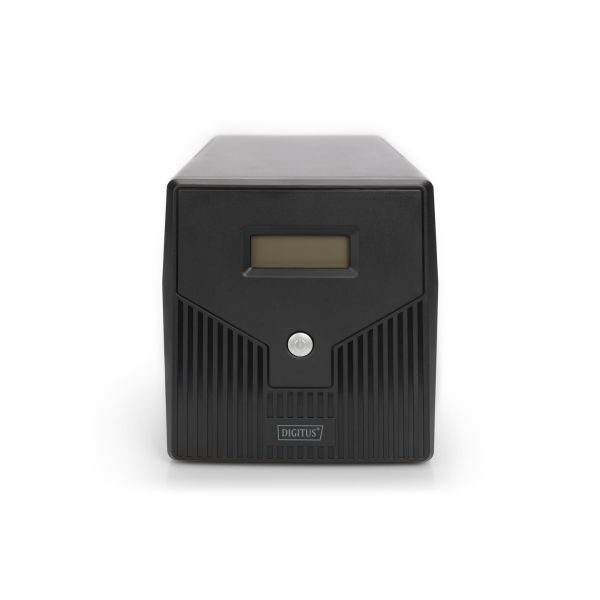

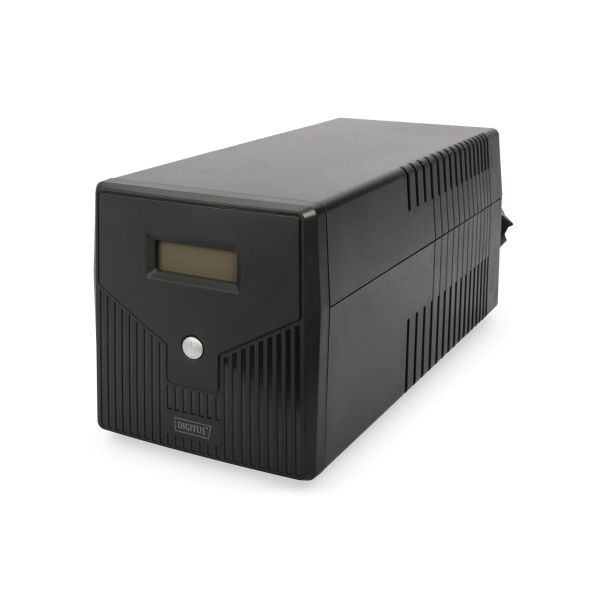

Digitus DN-170074 UPS Line-interactive 0,6 kVA 600 W 4 AC-uitgang(en)

Digitus DN-170074, Line-interactive, 0,6 kVA, 600 W, Pseudo sine, 162 V, 290 V

Ruim op voorraad

Fabrikant Digitus
MPN DN-170074
EAN 4016032441366
€ 274,00 excl. BTW

Digitus DN-170074 UPS Line-interactive 0,6 kVA 600 W 4 AC-uitgang(en)

High performance protection for your business and office computer systems against data loss and damage

- Boost and buck AVR for voltage stabilization
- Fast bridging times in case of power blackout
- Compact enclosure for space saving installation in your IT infrastructure
- Quick charging time
- Produce a low noise level under 40 dB

The DIGITUS® Line-Interactive UPS come with a compact size and an excellent microprocessor control, which guarantees high reliability. With an user friendly operation they provide high performance protection for your business and office computer systems against data loss and damage. Features like overload-, discharge and overcharge protection, cold start functions and energy saving features, as well as an acoustic alarm system are just a few advantages of the DIGITUS® Line-Interactive UPS units.
  • Excellent micro process management guarantees a high reliability in case of electricity failure
  • Auto restart while AC is recovering
  • Cold start function

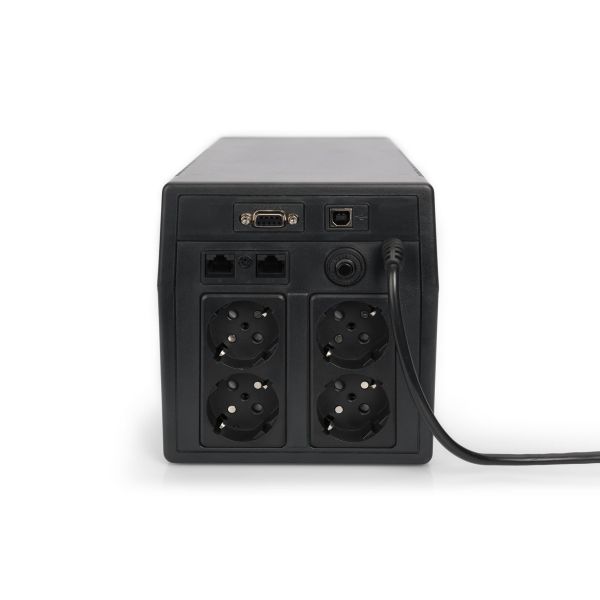

  • Connection Type: 4x safety outlets, 2x RJ45, 1x RS232, 1x USB 2.0 type B
  • Input voltage: 230 VAC
  • Voltage range: 162-290 VAC
  • Frequency range: 50 Hz (auto sensing)
  • Output voltage: 230 VAC ± 10%
  • AC voltage regulation (battery mode): 10%
  • Capacity: 1000 VA/600 W
  • Frequency range (battery mode): 50 Hz ± 1%
  • Typical transfer time: 2-6 ms
  • Waveform (battery mode): Simulated sine wave
  • Battery: 12V/7Ah x 2
  • Typical recharge time: 6-8 hours to recover 90% of capacity
  • Alarm sounds: Battery mode (sounding every 10 sec.), low battery (sounding every second), overload (sounding every 0.5 seconds), fault (continously sounding)
  • Humidity: 0-95% RH @ 0 °C to +40 °C (non condensing)
  • Noise level: Less than 40 dB
  • Boost and buck AVR for voltage stabilization
  • LCD display
  • With overload-, discharge-, and overcharge protection
  • Dimensions (H x W x D): 162 x 150 x 338 mm
  • Weight: 7.8 kg

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Line-interactive
Output power capacity*
0,6 kVA
Uitgangsvermogen*
600 W
Golfvorm*
Pseudo sine
Ingang operation voltage (min)*
162 V
Ingang operation voltage (max)*
290 V
Frequentie*
50 Hz
Output frequentie
50 Hz
Uitgangsspanningsregeling
10 procent
Automatic Voltage Regulation (AVR)
Ja
Overdrachtstijd (Lijnmodus naar batterijmodus)
2 ms
Aantal input fases
1
Aantal output fases
1
Power factor
0,6
Geluidsniveau
40 dB
Spanningsbeveiliging
Ja
Golf protectie functies
Digital Subscriber Line (DSL), Modem, Netwerk
Stroomspanning bescherming
Batterij-ontlading, Overbelasting, Overbelasting
Geluidsalarm(en)
Ja
Hoorbare alarmstanden
Alarm bij werking op batterij, Storing, Alarm bij laag batterijniveau, Alarm bij overbelasting
Auto-herstart
Ja
Land van herkomst
China

Poorten & interfaces

Stekker
Type F
Aantal AC uitgangen
4 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
USB-poorttype
USB Type-B
Seriële interface
Ja
Soort serieële aansluiting
RS-232
Seriële poort(en)
1
RS-232 port
1
Aantal Ethernet LAN (RJ-45)-poorten
2

Accu/Batterij

Batterij capaciteit
7 Ah
Accu/Batterij voltage
12 V
Ondersteund aantal accu's/batterijen
2
Oplaadduur batterij
6 uur
Koude start
Ja

Design

Vormfactor*
Tower
Kleur van het product*
Zwart
Type beeldscherm
LCD
LED-indicatoren
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
150 mm
Diepte
338 mm
Hoogte
162 mm
Gewicht
7,8 kg
Breedte verpakking
235 mm
Diepte verpakking
405 mm
Hoogte verpakking
192 mm
Gewicht verpakking
8,1 kg

Verpakking

Verpakkingsvolume
18273,6 cm³

Logistieke gegevens

Code UK-handelstarief
85044085
Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Output-aansluitingen
4 x CEE 7/7
Netspanning, in bedrijf
230 V
Nominale input voltage
230 V
