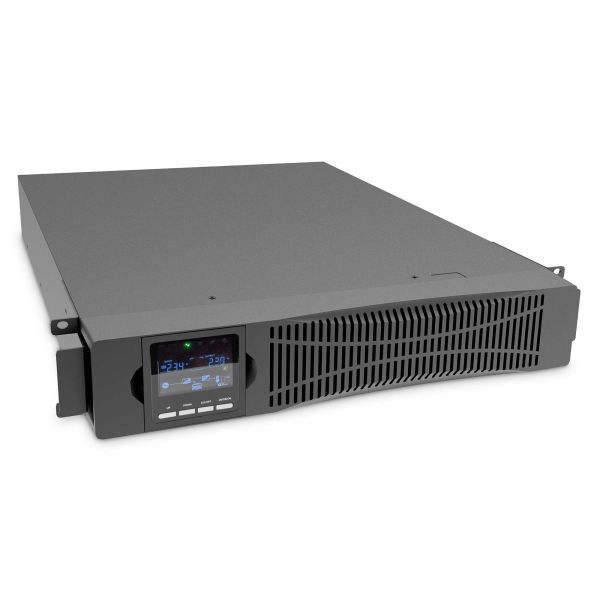

Digitus DN-170095 UPS Dubbele conversie (online) 1,5 kVA 2000 W 8 AC-uitgang(en)

Digitus DN-170095, Dubbele conversie (online), 1,5 kVA, 2000 W, 208 V, 240 V, 10 A

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Digitus
MPN DN-170095
EAN 4016032474661
€ 1.107,00 excl. BTW

Digitus DN-170095 UPS Dubbele conversie (online) 1,5 kVA 2000 W 8 AC-uitgang(en)

The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.

- High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
- High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

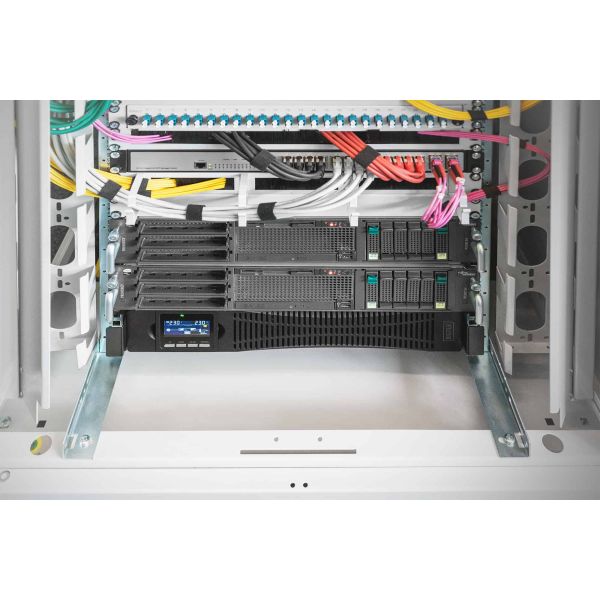

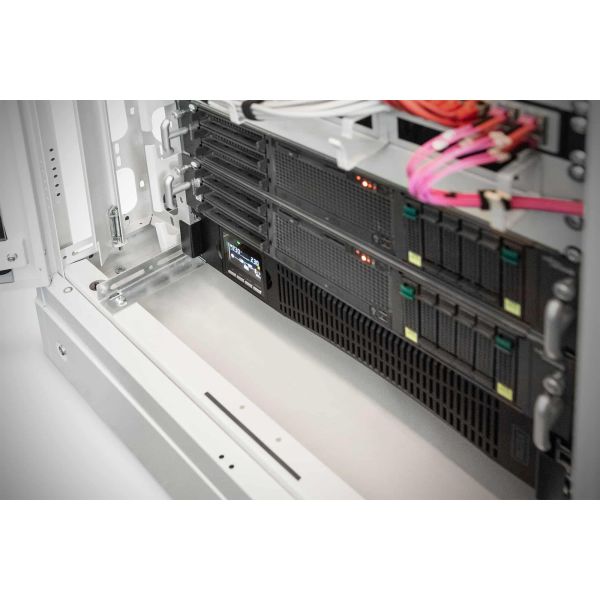

- Compact rack/tower design optimizes rack space and allows for flexible installation.
- Minimized equipment downtime with hot-swappable, user-replaceable battery modules that can be replaced on the fly.

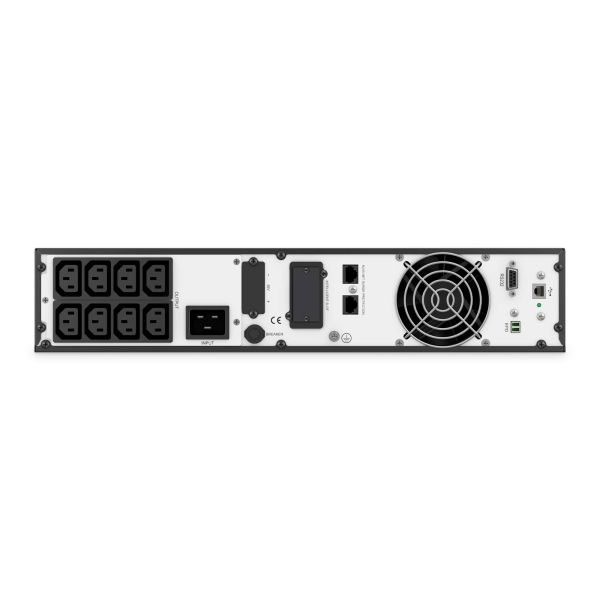

- High number of outlets (8 x C13) for optimal power distribution to loads.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system.
- Automatic battery self-test and fan speed control increase component life.
- Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
  • Online double conversion system (VFI-SS-111)
  • Input: socket IEC60320 C20, 208/220/230/240 Vac
  • Output: 8 x IEC60320 C13, max. 10A per socket
  • System power rating: 2000 VA / 2000 W, power factor 1.0
  • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
  • Replaceable internal battery pack during operation.
  • Battery: valve-regulated, non-spillable lead-acid battery.
  • Battery capacity: 4 x 12V x 9.0 Ah
  • Charge: 4 hours to 90% capacity after fully discharged
  • Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
  • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
  • Emergency power-off (EPO) contact for UPS shutdown in case of emergency
  • Maximum operating temperature: 0 - 40 °C
  • Storage temperature: -25 - 55 °C
  • Relative humidity: 20 - 90% non-condensing
  • Operating altitude: < 1500 m
  • Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
  • Product weight: 19,5 kg
  • Shipping dimensions WxDxH (mm): 560 x 590 x 200
  • Shipping weight: 23,7 kg
  • Safety standards: IEC/EN62040-1,IEC/EN60950-1
  • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
  • Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
1,5 kVA
Uitgangsvermogen*
2000 W
Ingang operation voltage (min)*
208 V
Ingang operation voltage (max)*
240 V
Stroom (max.)
10 A
Efficientie
93 procent
Efficiëntie (ECO-modus)
98 procent
Power factor
1
Type stroombron
AC
Afneembaar netsnoer
Ja
Land van herkomst
China

Poorten & interfaces

Stopcontacttypes
C13 stekker
Stekker
C20 stekker
Aantal AC uitgangen
8 AC-uitgang(en)
USB-poort
Ja
USB-poorttype
USB Type-B
Soort serieële aansluiting
RS-232
Seriële poort(en)
1
Aantal Ethernet LAN (RJ-45)-poorten
2
Noodstop-aansluiting (EPO)
Ja

Accu/Batterij

Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V
Ondersteund aantal accu's/batterijen
4
Oplaadduur batterij
4 uur

Design

Vormfactor*
Rackmontage

Design

Type koeling
Actief
Ingebouwde ventilator
Ja
Kleur van het product*
Zwart
Type beeldscherm
LCD

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-25 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 90 procent
Luchtvochtigheid bij opslag
20 - 90 procent
Hoogte, in bedrijf
0 - 1500 m

Gewicht en omvang

Breedte
440 mm
Diepte
460 mm
Hoogte
86,5 mm
Gewicht
19,5 kg
Breedte verpakking
555 mm
Diepte verpakking
595 mm
Hoogte verpakking
200 mm
Gewicht verpakking
22,9 kg

Verpakking

Rekbevestigingspakket
Ja
Meegeleverde kabels
RS-232, USB-kabel
Gebruikershandleiding
Ja
Verpakkingsvolume
66705,5 cm³

Logistieke gegevens

Code UK-handelstarief
85044085

Overige specificaties

Maat
48,3 cm (19")
