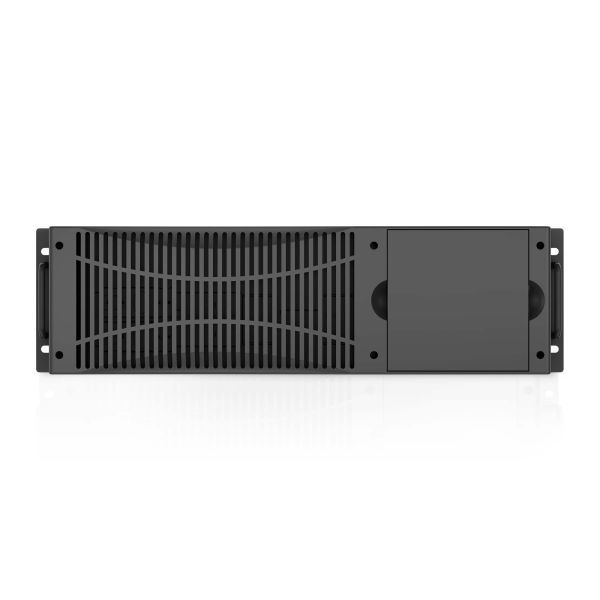

Digitus DN-170108 UPS-batterij kabinet Rackmontage/toren

Digitus DN-170108, Rackmontage/toren, Dubbele conversie (online), 2U, Zwart, Metaal, 120 V

Ruim op voorraad

Fabrikant Digitus
MPN DN-170108
EAN 4016032473596
€ 860,00 excl. BTW

Digitus DN-170108 UPS-batterij kabinet Rackmontage/toren

A solution that increases the operating capacity of intelligent USV systems to protect IT devices with medium to high loads

- Rack / tower with convertible design
- Hot swappable – Batteries can be exchanged during operation
- Supports rapid extension of backup time in case of increased need for capacity
- Easy installation – Batteries can be exchanged by the user
- Supports cold start function

The DIGITUS® USV Battery Modules ensure that USV systems used in highly demanding environments can continue to reliably supply connected devices with power in case of interruptions to the power supply. A maximum of 4 battery modules can be connected in order to increase the operating time of the connected IT devices. The systems are protected by ensuring uninterrupted power supply while changing the batteries. The external battery backs can ensure a rapid increase for the bridging period in case of increasing need.

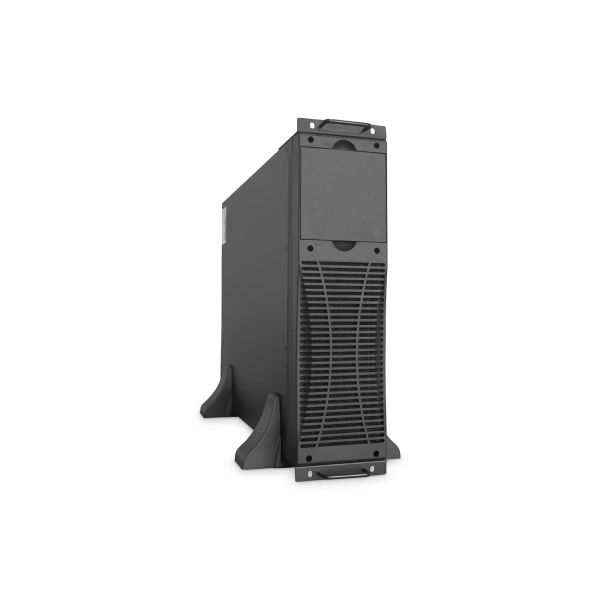

  • The battery module can be installed in a 19” rack or as a separate tower with stand
  • Hot swappable – Batteries can be exchanged during operation
  • Compatible with OnLine USVs: DN-170106 & DN-170107
  • Battery voltage: ±120 VDC
  • Capacity (standard unit): 12 V / 9 Ah
  • Number of installed rechargeable batteries: 20 units
  • Batteries in a row: 10 (per battery module)
  • Battery type: Lead battery
  • Typical charging time: 6 - 8 hours to recover 90% of full capacity
  • Operating temperature: 20 °C to +25 °C
  • Humidity during operation: 0 - 90%

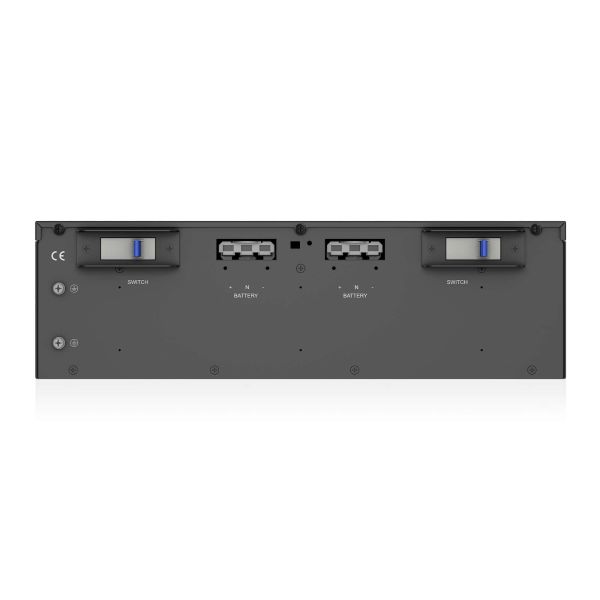

  • Terminal connections on the back
  • Dimensions (L×W×D): 131 x 443 mm x 680 mm
  • Net weight: 65 kg
  • Gross weight: 66 kg

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Vormfactor*
Rackmontage/toren
UPS-topologie
Dubbele conversie (online)
Rack-montage
Ja
Rackcapaciteit
2U
Kleur van het product
Zwart
Materiaal behuizing
Metaal

Accu/Batterij

Ondersteund aantal accu's/batterijen
20
Accu/Batterij voltage
120 V
Hot-swap batterij
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
20 - 25 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
443 mm

Gewicht en omvang

Diepte
680 mm
Hoogte
131 mm
Gewicht
65 kg
Breedte verpakking
585 mm
Diepte verpakking
730 mm
Gewicht verpakking
68,2 kg

Inhoud van de verpakking

Aantal
1

Technische details

Verpakkingsvolume
119574 cm³

Logistieke gegevens

Code UK-handelstarief
85044085
Land van herkomst
China
