Digitus DN-170111 UPS Line-interactive 0,6 kVA 480 W 7 AC-uitgang(en)

Digitus DN-170111, Line-interactive, 0,6 kVA, 480 W, Sinus, 162 V, 290 V

Ruim op voorraad

Fabrikant Digitus
MPN DN-170111
EAN 4016032456582
€ 226,00 excl. BTW

Digitus DN-170111 UPS Line-interactive 0,6 kVA 480 W 7 AC-uitgang(en)

All-in-one: Reliable protection from data loss and power failure, surge damages to your connected devices

- Microprocessor control unit guarantees high reliability
- Line interactive with AVR boost and buck automatic voltage regulation
- Saves space: Also suitable for wall mounting
- Integrated charger for mobile devices (USB)
- Auto restart: Automatically switches off when the battery has discharged, automatically switches on when the network connection is supplied with power again
- Auto charging: Automatic charging function when turned off

The line interactive UPS models offer protection against power failure, surge damages, data loss and much more. The line interactive series stands out for its user-friendly operation, advanced performance level and security through an integrated microprocessor control unit. Protect yourself against data loss and damage to your home and office devices. Preserve your devices with the AVR function that always automatically provides the right voltage and prevents overvoltage and undervoltage. This UPS series is toped off with extra security features, overload protection, discharge protection and overcharge protection as well as a cold start function and energy saving function. With the USV system, data loss and damages are a thing of the past.

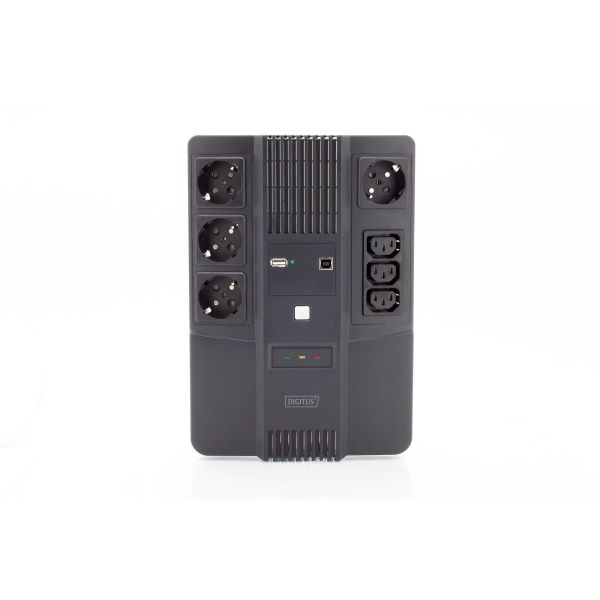

  • 4x shockproof sockets to connect your devices
  • 3x IEC C13 sockets to connect monitors, for example
  • 1x USB Type-A socket to charge mobile devices with 5V/2A max.
  • 1x USB Type-B socket for software communication

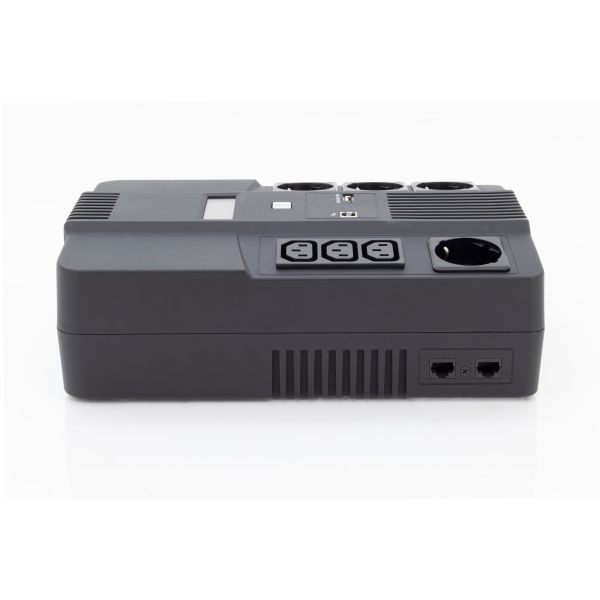

  • 1x RJ45 input / output for surge protection for your Internet access + software communication
  • LED indicator for the following functions: Supply via mains voltage / supply via battery voltage / error message
  • Acoustic error message for the following events: Power failure (10 sec.) / Weak battery (1 sec.) / Overload (0.5 sec.) / Error (continuous tone)
  • Protection functions: Discharge / overcharge / overload
  • Changeover time if power fails: 2 – 6 ms
  • Automatic restart while voltage is restored
  • Software for controlling and monitoring connected devices / UPS functions
  • Capacity: 800 VA / 480 W
  • Input voltage: 220 – 240 V/AC
  • Input voltage tolerance: 162 – 290 V/AC
  • Output voltage regulation: +/- 10%
  • Frequency range: 50 to 60 Hz (+/- 10%)
  • Waveform: Simulated sine wave
  • Battery type: 12 V / 9 Ah 1x
  • Charging Time: 6 – 8 hours (0 – 90% charge)
  • Noise level: <40 dB
  • USB charging socket type A: 5V/2A max.
  • Operation temperature: 0 ~ 40°C
  • Operating humidity: 0 – 90 % (non-condensing)
  • Dimensions (L x W x H): 9 x 20,2 x 28,5cm
  • Weight: 5.2 kg

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Line-interactive
Output power capacity*
0,6 kVA
Uitgangsvermogen*
480 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
162 V
Ingang operation voltage (max)*
290 V
Frequentie*
50/60 Hz
Uitgangsspanningsregeling
10 procent
Automatic Voltage Regulation (AVR)
Ja
Geluidsniveau
40 dB
Spanningsbeveiliging
Ja
Golf protectie functies
Netwerk
Stroomspanning bescherming
Overbelasting, Overontlading, Overbelasting
Geluidsalarm(en)
Ja
Hoorbare alarmstanden
Alarm bij werking op batterij, Storing, Alarm bij laag batterijniveau, Alarm bij overbelasting
Auto-herstart
Ja
Automatisch uitschakelen
Ja
Land van herkomst
China

Poorten & interfaces

Stopcontacttypes
C13 stekker
Stekker
C14 stekker
Aantal AC uitgangen
7 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
2
Aantal Ethernet LAN (RJ-45)-poorten
2

Accu/Batterij

Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V

Accu/Batterij

Ondersteund aantal accu's/batterijen
1
Accu/Batterij oplaadtijd
8 uur
Laadstroom
2 A

Design

Vormfactor*
Compact
Kleur van het product*
Zwart
LED-indicatoren
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
202 mm
Diepte
285 mm
Hoogte
90 mm
Gewicht
5,2 kg
Breedte verpakking
238 mm
Diepte verpakking
352 mm
Gewicht verpakking
3,05 kg

Verpakking

Gebruikershandleiding
Ja
Verpakkingsvolume
10555,8 cm³

Logistieke gegevens

Code UK-handelstarief
85044085
Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Input-connectietype
4 x CEE 7/7, 3 x IEC C13
