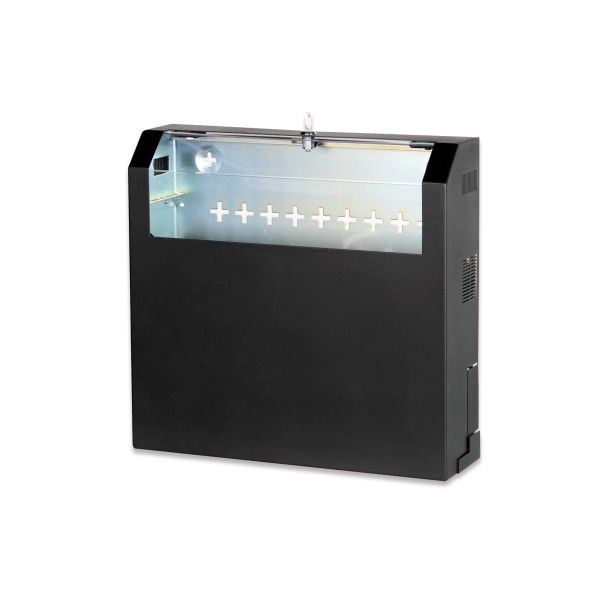

Digitus DN-19 04U-PB-B rack 3U Wandrek Zwart

Digitus DN-19 04U-PB-B, Wandrek, 3U, 30 kg, 8,5 kg, Zwart

Nog 12 beschikbaar

Fabrikant Digitus
MPN DN-19 04U-PB-B
EAN 4016032345282
€ 137,00 excl. BTW

Digitus DN-19 04U-PB-B rack 3U Wandrek Zwart

The DIGITUS® Professional Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Very slim and elegant design
- Easy and time saving installation
- Optimized air ventilation and exhaustion

The Wall Mounting Cabinets SoHo, Slim are perfect for the placing of active and passive components. They are characterized by an easy and time saving installation. The modern design suits to every office or home environment. There are two separate installation possibilities: The front side is equipped with a rotatable vertical 3U rail. Alternatively, it can be positioned horizontally or even angled. On the rear side there is a 2U rail (fixed), which can be used for passive network components for example. Due to punched out mounting holes in the lower housing area also non rack mountable equipment can be installed (e.g. DSL router, etc.). Alternatively you can install a device mounting plate which is available seperately.
  • Safety class rating IP20
  • Lockable housing with transparent polycarbonat window

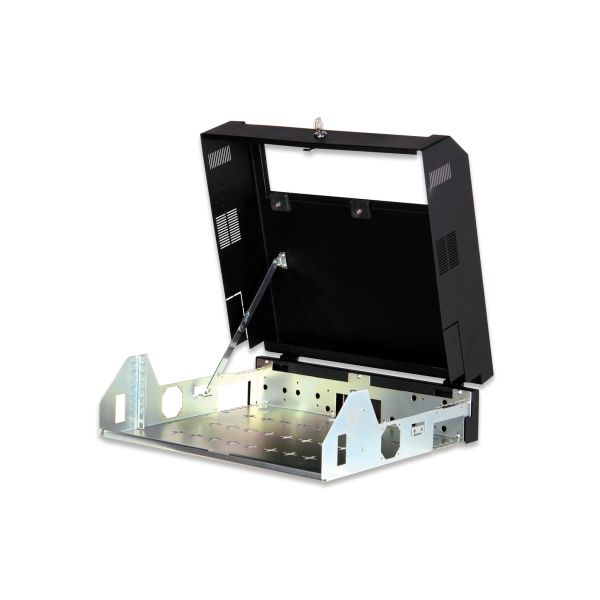

  • Upper part of housing can opened up to 80°
  • Door stop mechanism of steel which keeps the door open
  • 1-point-locking-mechanism
  • 2 separate 483 mm (19“) mounting options: 3U vertical (rotatable), 2U horizontal (fix)
  • max. installation depth (from front vertical rail to rear horizontal rail): ca. 265 mm
  • 2.0 mm strong sheet steel with a high loading capacity, powder coated
  • Pre-punched knock-outs for cable management
  • Ventilation slots for active and passive ventilation and exhausting
  • Cable tire-up divisions
  • Lower housing area with punched out mounting holes for the installation of equipment which is not suitable for 483 mm (19”) mounting
  • Mounting plate is optional available
  • Dimensions ventilator mount: 57.5 x 57.5 mm
  • Hole distances ventilator installation: 50 x 50 mm (3.5 mm diameter)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
3U
Soort*
Wandrek
Maximale gewichtscapaciteit*
30 kg
Kleur van het product
Zwart
Materiaal
Metaal
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Maat
48,3 cm (19")
Breedte
525 mm
Diepte
475 mm

Gewicht en omvang

Hoogte
145 mm
Gewicht
8,5 kg

Verpakking

Breedte verpakking
530 mm
Diepte verpakking
500 mm
Verpakkingsvolume
42400 cm³
Gewicht verpakking
9,5 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
Turkije
Code geharmoniseerd systeem (HS)
85381000
