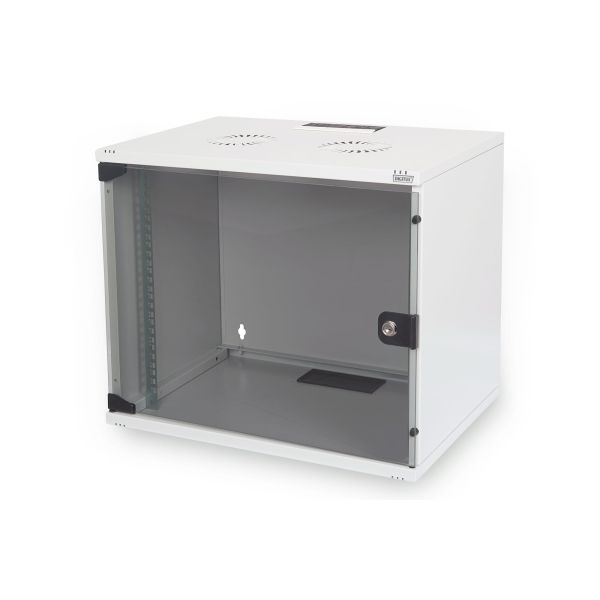

Digitus DN-19 07U-S-1 rack 7U Wandrek Grijs

Digitus DN-19 07U-S-1, Wandrek, 7U, 60 kg, Grijs

Ruim op voorraad

Fabrikant Digitus
MPN DN-19 07-U-S-1
EAN 4016032331698
€ 283,00 excl. BTW

Digitus DN-19 07U-S-1 rack 7U Wandrek Grijs

The DIGITUS® Professional Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Unmounted flat package delivery for cost- and space effciency
- Optimized air ventilation and exhaustion
- Lockable glass door ensures safety

The unmounted SOHO Wall Mounting Cabinets are made of a robust sheet steel construction with a minimum of seams. The enclosures are special designed to save a lot of space and costs while delivery due to the flat packaging. It is fast and easy to mount the cabinet. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.
  • Safety class rating IP20
  • Lockable safety-glass door
  • 200° door opening angle
  • 1-point-locking-mechanism on the front door
  • 483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
  • 483 mm (19”) profile rails are adjustable in depth
  • 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
  • Cable entry with brush strip on the top and with plastic cover on the base
  • Roof is prepared for fan units (punched out entries)
  • Ventilation slots for active and passive ventilation and exhausting
  • Equipment mounting depth min.-max.: 170-270 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
7U
Soort*
Wandrek
Maximale gewichtscapaciteit*
60 kg
Kleur van het product
Grijs
Materiaal
Staal
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Internationale veiligheidscode (IP)
IP20
Certificering
IP40

Gewicht en omvang

Maat
48,3 cm (19")
Breedte
540 mm

Gewicht en omvang

Diepte
400 mm
Hoogte
370 mm

Verpakking

Breedte verpakking
630 mm
Diepte verpakking
425 mm
Verpakkingsvolume
18742,5 cm³
Gewicht verpakking
11,6 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
China
Code geharmoniseerd systeem (HS)
85381000
