Digitus DN-3026 interfacekaart/-adapter

Digitus DN-3026, Zwart, China, RTL8153, 0 - 70 °C, 45 mm, 71 mm

Ruim op voorraad

Fabrikant Digitus
MPN DN-3026
EAN 4016032457138
€ 66,00 excl. BTW

Digitus DN-3026 interfacekaart/-adapter

Extend your laptop with USB 3.0 port to a complete Gigabit SFP network connection.

- Up to 1000 Mbps data transfer rate
- Easy to install thanks to plug and play - driver on virtual CD drive in the adapter is included
- No power supply required - power is supplied via the USB 3.0 interface
- Ideal also for mobile and stationary use
- Supports Layer 2 features like VLAN and IEEE802 priority encoding
- Compatible with Windows, macOS, Google Chrome and all other USB 3.0 compatible systems.
- Compact dimensions, elegant design

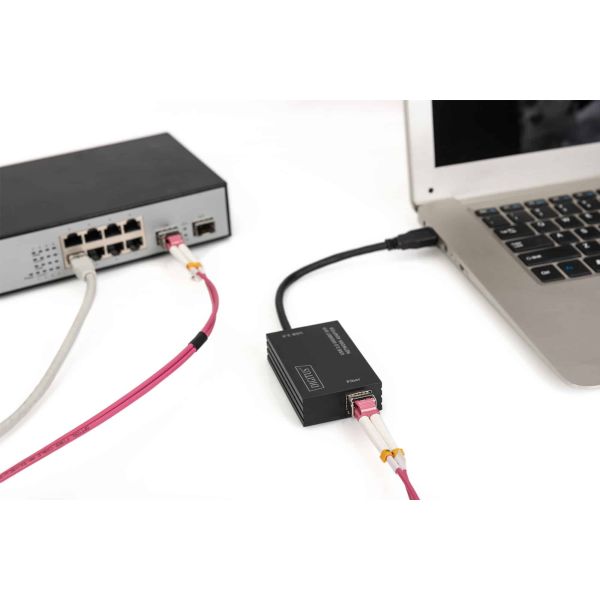

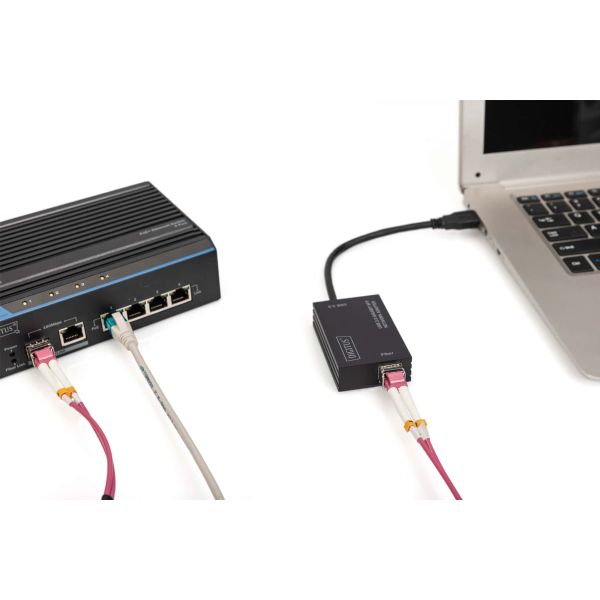

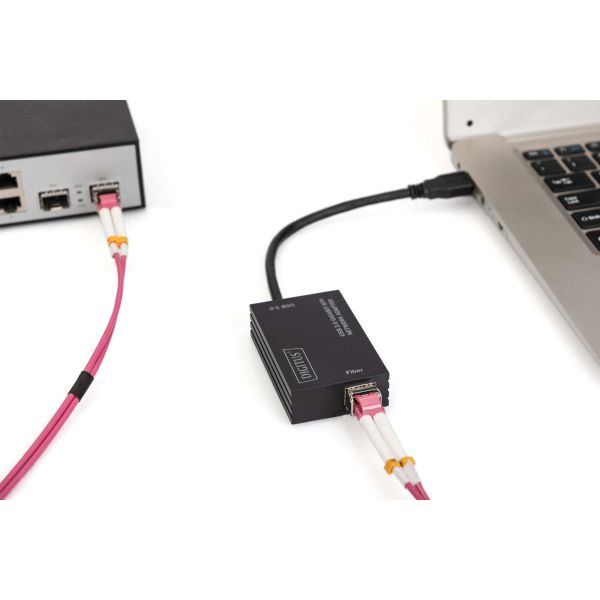

The USB 3.0 Gigabit SFP adapter allows you to extend your laptop to an SFP connection and to connect directly to a fiber optic network via a suitable fiber optic transceiver. This fiber optic interface is the right choice both for mobile use in connection with laptops and for stationary use in desktop systems. In addition, this SFP adapter in data and server centers serves its purpose in monitoring and troubleshooting applications, allowing you to intervene into the fiber optic infrastructure directly and with full bandwidth. It is easy to use, offers a wealth of options and is the perfect complement for most computers that do not have an SFP connection as a standard feature. Thanks to the virtual drive, no driver installation from CD is necessary - plug in and get started. The power supply is also ensured via the USB 3.0 interface. If Wi-Fi connections pose a security risk and copper connections are too slow, fiber optic connectivity provides the right solution for your network. The adapter is compatible with Windows, macOS, Google Chrome and all other systems that are compatible with USB 3.0.
  • Supports USB 3.0 ports
  • Fast Gigabit data transfer
  • Chipset: RTL8153/Realtek
  • Advanced energy-saving options via USB 3.0
  • Supports IEEE802.3az-2010 (EEE)
  • Network standards: IEEE 802.1p,IEEE 802.1Q,IEEE 802.2,IEEE 802.3ac IEEE 802.3az,IEEE 802.3x, IEEE 802.3z,IEEE 802.3ad
  • Additional Features: IPMI pass-through via SMBus or NC-SI, WoL, PXE remote boot, ISCSI boot, VLAN filtering
  • Compatible with Microsoft NDIS5, NDIS6(IPv4, IPv6, TCP, UDP) checksum features
  • Supports IEEE802 IP Layer 2 priority encoding and IEEE802.1Q VLAN (Virtual bridged Local Area network)
  • Supports 1000Mbps-SX/LX transreceiver
  • Supports USB 3.0, USB 2.0 and USB 1.1
  • Supports CDC-EMC (Device Class & Ethernet Control Model)
  • Supports LPM (Link Power Management)
  • Supports Pair swap / polarity / skew correction
  • Crossover Detection & Auto-Correction
  • Integrated transmit/receive buffer support
  • Supports hardware CRC (Cyclic Redundancy Check) function
  • Supports power down / link down, power saving
  • Upstream port: USB 3.0 AF
  • Downstream port: SFP Port
  • Operation temperature: 0 – 70°C
  • Operating humidity: 10 – 90% (non-condensing)
  • Power Consumption: 2.5 W
  • Power consumption on standby: 0.7 W
  • Cable length: 17 cm
  • Measurements: L 7.1 x B 4.5 x T 1.8 cm
  • Weight: 50 g

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Kleur van het product
Zwart
Land van herkomst
China

Kenmerken

Chipset
RTL8153
Plug and play
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C

Gewicht en omvang

Breedte
45 mm
Diepte
71 mm
Hoogte
18 mm
Gewicht
60 g

Verpakking

Aantal per verpakking
1 stuk(s)
Gebruikershandleiding
Ja
Breedte verpakking
175 mm

Verpakking

Diepte verpakking
126 mm
Hoogte verpakking
32 mm
Gewicht verpakking
120 g
Verpakkingsvolume
705,6 cm³

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
Hoeveelheid per (buitenste) hoofdverpakking
90 stuk(s)
(Buitenste) hoofdverpakking breedte
410 mm
(Buitenste) hoofdverpakking lengte
410 mm
(Buitenste) hoofdverpakking hoogte
390 mm
(Buitenste) hoofdverpakking brutogewicht
11 kg

Overige specificaties

Snoerlengte
0,17 m
Relatieve luchtvochtigheid
10 - 90 procent
