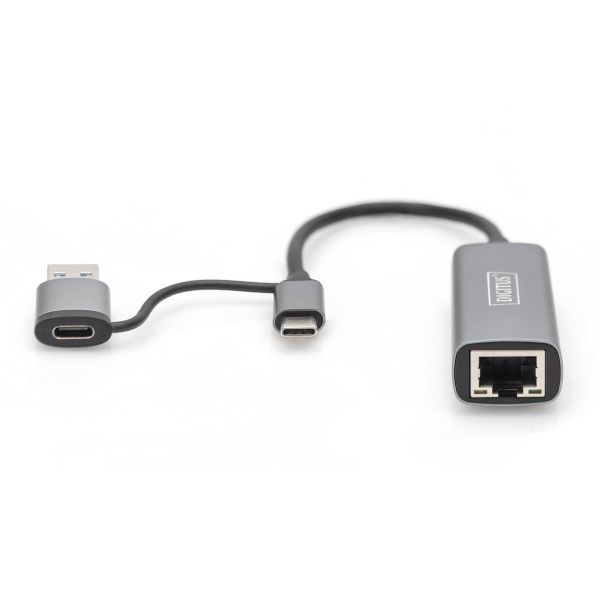

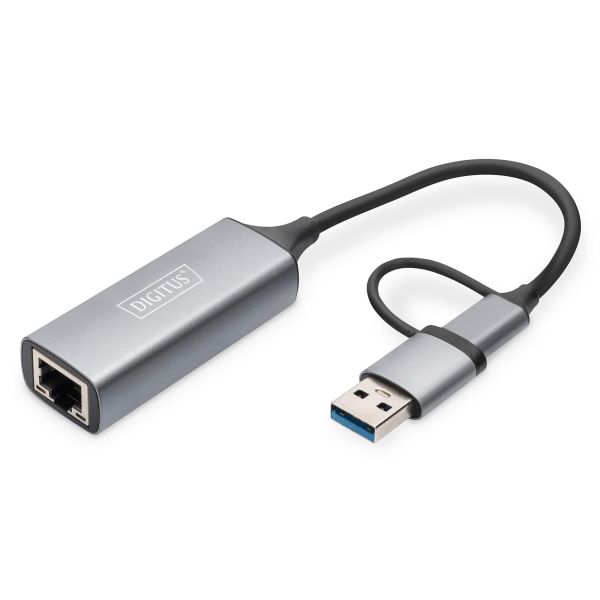

Digitus DN-3028 tussenstuk voor kabels USB-C USB 3.1 RJ-45 Grijs

Digitus DN-3028, USB-C USB 3.1, RJ-45, Grijs

Ruim op voorraad

Fabrikant Digitus
MPN DN-3028
EAN 4016032473572
€ 44,00 excl. BTW

Digitus DN-3028 tussenstuk voor kabels USB-C USB 3.1 RJ-45 Grijs

Extend your notebook with USB-C™ / USB A connection to include a Multi-Gigabit network connection (RJ45) with up to 2.5 Gbps

- Up to 2.5 Gbps data transfer rate for ultra-fast internet access on Gigabit networks
- Improved chipset for enhanced power and performance
- USB-C™ compatible with USB 3.1/3.0 standard and suitable for older USB connections thanks to USB plug-on adapter for USB-C™ plug
- LED display of currently used network bandwidth – 100/1000/2500 Mbps
- High data rate, ideal for streamers, online gamers or generally high data traffic
- No power adapter needed – Power supply is provided via the USB-C™ interface
- Compatible with macOS, Linux, Android and iOS systems
- Compact dimensions and elegant design – ideal for travel, business trips or on vacation
- Aluminum housing with passive heat dissipation thanks to lateral ventilation slits
- Use your computer without a network connection or with a defective network port for network applications

With the USB Type-C™ Gigabit Ethernet adapter, you can add a network connection to your notebook or desktop PC and achieve speeds of up to 2.5 Gbps. Plug and Play – Just plug in and get started. Power supply is provided conveniently via the USB-C™ interface. In addition, the USB A included in delivery allows for use with older USB jacks, downward compatible with USB 3.0 and below. The adapter is compatible with Windows, macOS, Linux, Android and iOS. Suitable for online gamers, live streamers, 4K video applications and everyone who needs high network data rates with optimal performance. Thanks to its compact dimensions, the adapter also makes an ideal travel companion. The finishing touch is its elegant and resistant aluminum housing with lateral openings for improved heat dissipation and performance.
  • Supports USB-C™ connections with USB 3.1
  • Supports USB A connections with USB 3.0
  • Gigabit data transmission with up to 2.5 Gbps
  • RJ45 Ethernet jack with LED feature display
  • Supported data transfer rates: 10/100/1000/2500 Mbps
  • Chipset: RTL8156B (improved power, data flow and performance)
  • Supports: Wake-On-LAN, IPv4/IPv6 protocols, IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3bz(Energy Efficient Ethernet)
  • Full duplex / Half-duplex data flow control – auto-negotiation
  • Auto MDI-X: Supports patch and crossover cable, automatic detection and switching
  • Compatible with Windows, macOS, Linux, Android and iOS
  • Operating temperature: 0 °C to +40 °C
  • Operating humidity: 20% to 80% (non-condensing)
  • Power supply via USB-C™ (4.75 – 5.25 V)
  • Stand-by power consumption: <60 mA
  • Power consumption during operation: <80 mA @ 10Mbps, <130 mA @ 100Mbps, <300mA @ 1000Mbps, <460 mA @ 2.5 Gbps
  • Cable length: 15 cm
  • Material: Stable and resistant aluminum housing (anodized)
  • Dimensions: L 110 x W 39.8 x D 16.6 mm
  • Weight: 55 g
  • Color: Gray

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aansluiting 1*
USB-C USB 3.1
Aansluiting 2*
RJ-45
Aansluiting 1 type
Mannelijk
Aansluiting 2 type
Vrouwelijk
Connector 1 vormfactor
Recht
Connector 2 vormfactor
Recht
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s

Prestatie

Kleur van het product*
Grijs
Full duplex
Ja
Wake-on-LAN
Ja
Chipset
RTL8156B
Land van herkomst
China

Energie

Ingangsspanning
4.75 - 5.25 V
Stroomvoorziening via USB
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
20 - 80 °C

Gewicht en omvang

Breedte
39,8 mm
Diepte
16,6 mm
Hoogte
110 mm
Gewicht
55 g
