Digitus DN-652101 netwerk media converter 1000 Mbit/s 850 nm Multimode Zwart

Digitus DN-652101, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-SX, Gigabit Ethernet, 10,100,1000 Mbit/s, 100BASE-TX, 1000BASE-TX

Nog slechts 6 beschikbaar

Fabrikant Digitus
MPN DN-652101
EAN 4016032445715
€ 104,00 excl. BTW

Digitus DN-652101 netwerk media converter 1000 Mbit/s 850 nm Multimode Zwart

The perfect converter solution for optical data transmission

- Converts wire-based network signals into fiber optic signals
- High quality and the highest reliability

The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.
  • Converts wire-based network signals into fiber optic signals
  • High quality and the highest reliability
  • 10/100/1000Base-TX to 1000Base-SX
  • Ports: 1x RJ45, 1x SC duplex
  • Range of up to 0.5km
  • Wavelength: 850nm
  • Multimode dual fiber
  • Automatic cable detection - Auto MDI / MDI-X function
  • Diagnostic LEDs for status and activity monitoring
  • Suitable for 50/125μm, 62.5/125μm, and 100/140μm fiber optic cables (multimode)
  • Compact, robust metal housing
  • Excellent short circuit protection
  • Lightning and overvoltage protection
  • DIN rail (top hat rail) and wall mounting possible

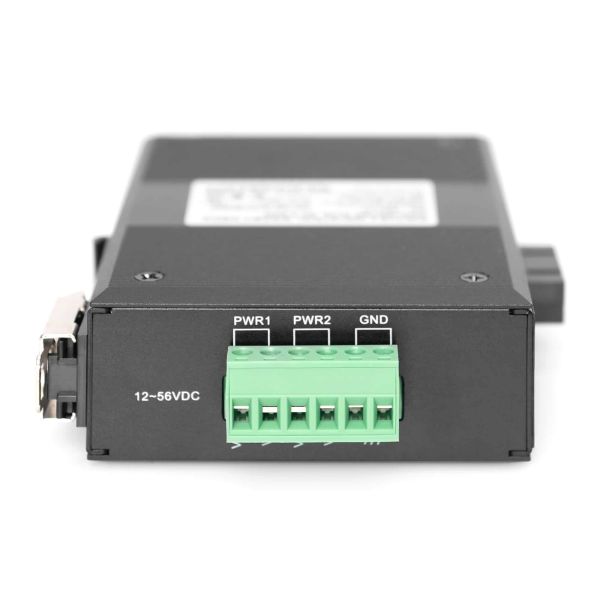

  • Redundant power supply: 12~56 V DC, redundant power supply with reverse polarity protection function
  • Extended operating temperature range, -40 °C ~ +85 °C
  • Removable terminal connection
  • Protection class IP40

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Converter input interface
10Base-T, 100Base-TX, 1000Base-TX
Converter output interface
1000Base-SX
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Koperen ethernetbekabelingstechnologie
100BASE-TX, 1000BASE-TX
Fiber ethernet cabling technologie
1000BASE‑SX
Overdrachtssnelheid
1000 Mbit/s
Auto MDI/MDI-X
Ja

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SC
Aansluiting voor netstroomadapter
Ja

Prestatie

Maximaal bereik*
500 m
Golflengte*
850 nm
Draad modus structuur
Multimode
Vezelkabel diameters ondersteund
50/125,62.5/125,100/140 µm

Design

Intern*
Nee
LED-indicatoren
Ja
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP40
DIN rail bevestiging
Ja
Land van herkomst
China

Energie

Spanning
12 - 56 V
Power over Ethernet (PoE)
Nee

Beheerfuncties

Digital Diagnostics Monitoring (DDM)
Nee

Gewicht en omvang

Breedte
80 mm
Diepte
40 mm
Hoogte
120 mm
Gewicht
300 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 85 °C

Verpakking

Breedte verpakking
180 mm
Diepte verpakking
70 mm
Hoogte verpakking
220 mm
Verpakkingsvolume
2772 cm³
Gewicht verpakking
500 g

Inhoud van de verpakking

Snelle installatiehandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990
(Buitenste) hoofdverpakking breedte
360 mm
(Buitenste) hoofdverpakking lengte
450 mm
(Buitenste) hoofdverpakking hoogte
370 mm
(Buitenste) hoofdverpakking brutogewicht
10 kg
(Buitenste) hoofdverpakking inhoud
59940 cm³
Hoeveelheid per (buitenste) hoofdverpakking
20 stuk(s)
