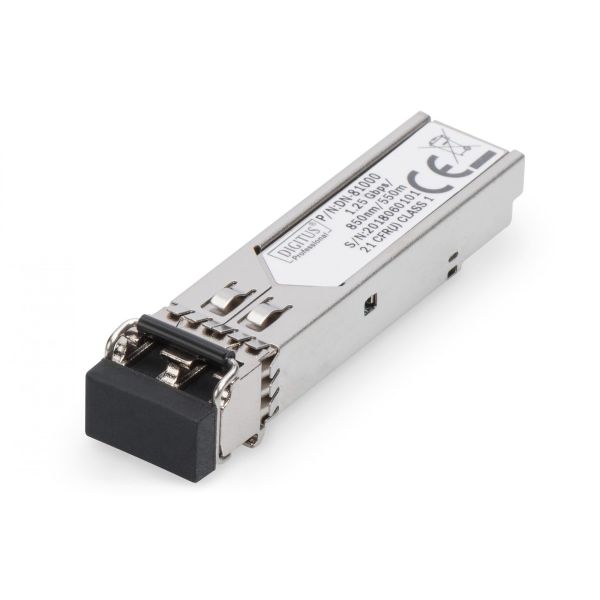

Digitus DN-81000-04 netwerk transceiver module Vezel-optiek 1250 Mbit/s SFP 850 nm

Digitus DN-81000-04, Vezel-optiek, 1250 Mbit/s, SFP, LC, 50/125,62.5/125 µm, 500 m

Ruim op voorraad

Fabrikant Digitus
MPN DN-81000-04
EAN 4016032451808
€ 16,00 excl. BTW

Digitus DN-81000-04 netwerk transceiver module Vezel-optiek 1250 Mbit/s SFP 850 nm

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 0,55km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
  • HP-HPE compatible
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • High quality and excellent reliability
  • 1.25 Gbps Maximum Data Rate
  • Compliant to IEEE 802.3z Gigabit Standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • Connector: 1x LC Duplex
  • 1000Base-SX - For Short Haul
  • Wavelength: 850nm
  • Transmission power: minimum -8 dBm, maximum -3 dBm
  • Sensitivity Receiving Power: Minimum -20 dBm
  • For a Distance of up to 0.55km
  • Suitable for 50/125µm and 62.5/125µm multimode fiber cables
  • Safe fast-locking mechanism
  • Operating temperature: 0 °C ~ 70 °C
  • Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
1250 Mbit/s
Soort aansluiting*
SFP
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
Vezelkabel diameters ondersteund
50/125,62.5/125 µm
Maximaal bereik
500 m
Golflengte
850 nm
Tx vermogen (min)
-8 dBmW
Tx vermogen (max)
-3 dBmW
Rx vermogen (min)
-20 dBmW
Ethernet interface type
Gigabit Ethernet
Netwerkstandaard
IEEE 802.3z
Digital Diagnostics Monitoring (DDM)
Nee

Kenmerken

Plug and play
Ja

Kenmerken

Hot-plug ondersteuning
Ja
Land van herkomst
China
Merkcompatibiliteit
MSA Compliant

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C

Verpakking

Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
118 mm
Diepte verpakking
31 mm
Verpakkingsvolume
329,22 cm³
Gewicht verpakking
35,417 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
