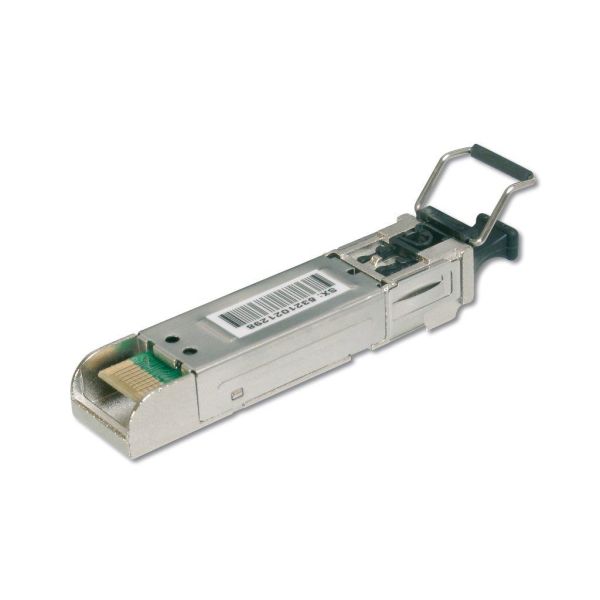

Digitus DN-81001-01 netwerk transceiver module Vezel-optiek 1250 Mbit/s mini-GBIC/SFP 1310 nm

Digitus DN-81001-01, Vezel-optiek, 1250 Mbit/s, mini-GBIC/SFP, LC, 9/125 µm, 20000 m

Ruim op voorraad

Fabrikant Digitus
MPN DN-81001-01
EAN 4016032369967
€ 16,00 excl. BTW

Digitus DN-81001-01 netwerk transceiver module Vezel-optiek 1250 Mbit/s mini-GBIC/SFP 1310 nm

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
  • HP compatible
  • HP-Aruba compatible
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • High quality and excellent reliability
  • 1.25 Gbps Maximum Data Rate
  • Compliant to IEEE 802.3z Gigabit Standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • Connector: 1x LC Duplex
  • 1000Base-LX - For Long Haul
  • Wavelength: 1310nm
  • Transmission power: minimum -8 dBm, maximum -3 dBm
  • Sensitivity receiving power: minimum -24 dBm
  • For a Distance of up to 20km
  • Suitable for 09/125µm Singlemode Fiber Cables
  • Safe fast-locking mechanism
  • 3.3V power supply
  • Operating temperature: 0 °C ~ 70 °C
  • Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
1250 Mbit/s
Soort aansluiting*
mini-GBIC/SFP
Single-mode glasvezelkabel (SMF) ondersteund
Ja
Vezel-optische connector
LC
Vezelkabel diameters ondersteund
9/125 µm
Maximaal bereik
20000 m
Golflengte
1310 nm
Tx vermogen (min)
-8 dBmW
Tx vermogen (max)
-3 dBmW
Rx vermogen (min)
-24 dBmW
Ethernet interface type
Gigabit Ethernet
Netwerkstandaard
IEEE 802.3z
Bekabelingstechnologie
1000Base-LX
Duplex systeem
Volledig
Digital Diagnostics Monitoring (DDM)
Nee
Fibre channel-poorten
1

Kenmerken

Kleur van het product
Metallic
Plug and play
Ja
Hot-plug ondersteuning
Ja
Gemakkelijk te installeren
Ja
Land van herkomst
China
Merkcompatibiliteit
MSA Compliant

Verpakking

Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
95 mm
Diepte verpakking
115 mm
Verpakkingsvolume
327,75 cm³
Gewicht verpakking
58 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
