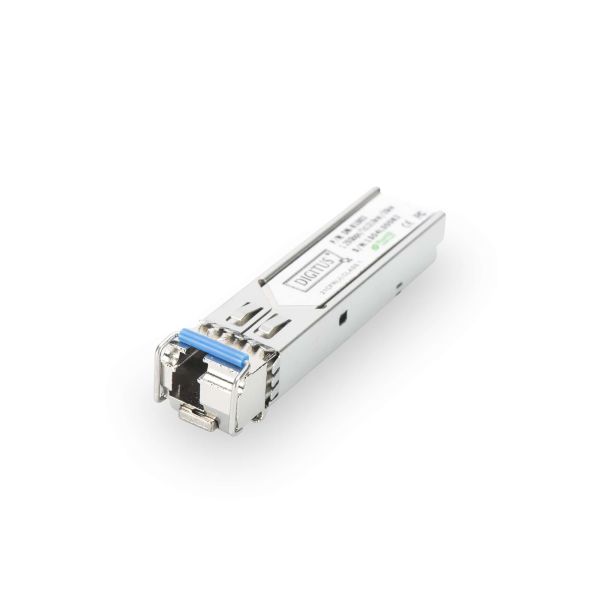

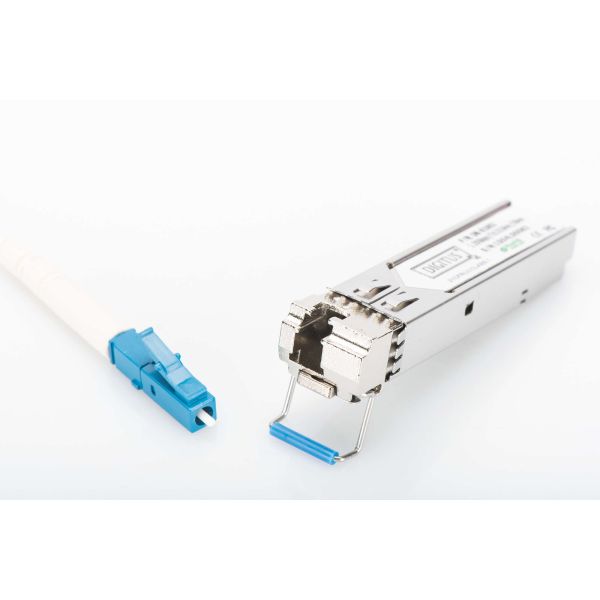

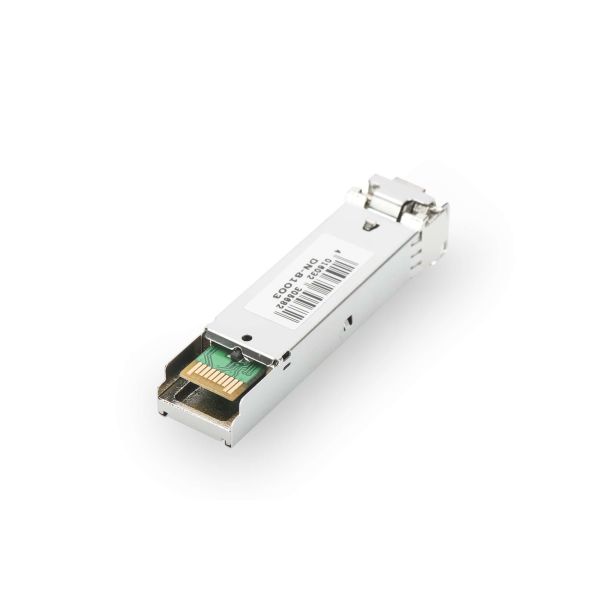

Digitus DN-81003 netwerk transceiver module 1250 Mbit/s mini-GBIC 1310 nm

Digitus DN-81003, 1250 Mbit/s, mini-GBIC, LC, LX, TX, 20000 m, 1310 nm

Nog slechts 7 beschikbaar

Fabrikant Digitus
MPN DN-81003
EAN 4016032305682
€ 17,00 excl. BTW

Digitus DN-81003 netwerk transceiver module 1250 Mbit/s mini-GBIC 1310 nm

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
  • Bidirectional WDM Module - Only one fiber is needed
  • High quality and excellent reliability
  • 1.25 Gbps Maximum Data Rate
  • Compliant to IEEE 802.3z Gigabit Standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • Connector: 1x LC Simplex
  • Wavelength: Tx 1310nm / Rx 1550nm
  • Transmission Power: Minimum -5 dBm, Maximum 0 dBm
  • Sensitivity receiving power: minimum -24 dBm
  • For a Distance of up to 20km
  • Suitable for 09/125µm Singlemode Fiber Cables
  • Safe fast-locking mechanism
  • 3.3V power supply
  • Suitable Module for Opposite Side: DN-81004
  • Operating temperature: 0 °C ~ 70 °C

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Maximale overdrachtssnelheid van gegevens*
1250 Mbit/s
Soort aansluiting*
mini-GBIC
Single-mode glasvezelkabel (SMF) ondersteund
Ja
Vezel-optische connector
LC
SFP-zendernorm
LX, TX
Maximaal bereik
20000 m
Golflengte
1310 nm
Tx-golflengte (max)
1310 nm
Rx-golflengte (max)
1550 nm
Ethernet interface type
Gigabit Ethernet
Netwerkstandaard
IEEE 802.3z
Digital Diagnostics Monitoring (DDM)
Nee

Kenmerken

Land van herkomst
China

Kenmerken

Merkcompatibiliteit
MSA Compliant
Certificering
EN 60825-1

Energie

Ingangsspanning
3.3 V

Verpakking

Breedte verpakking
115 mm
Diepte verpakking
30 mm
Verpakkingsvolume
310,5 cm³
Gewicht verpakking
35,417 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
