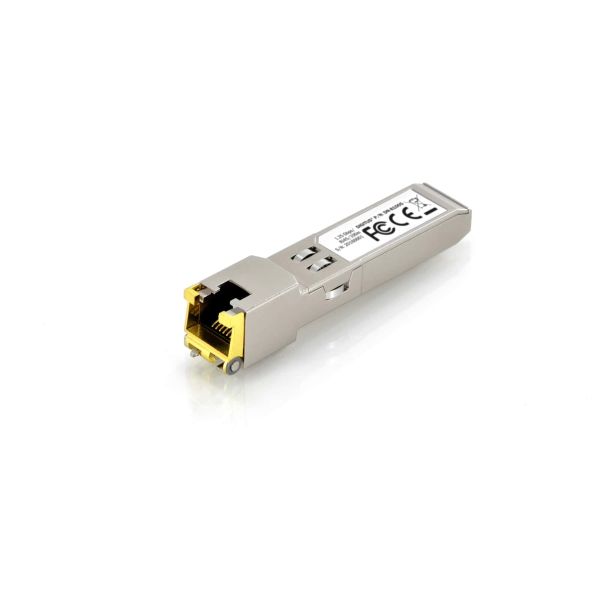

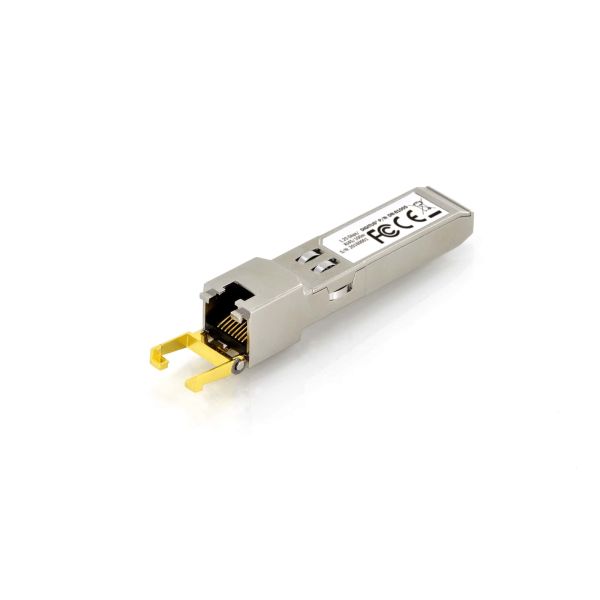

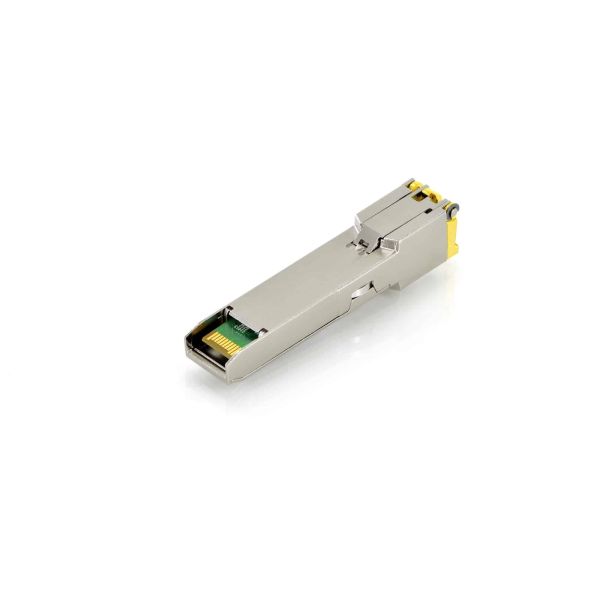

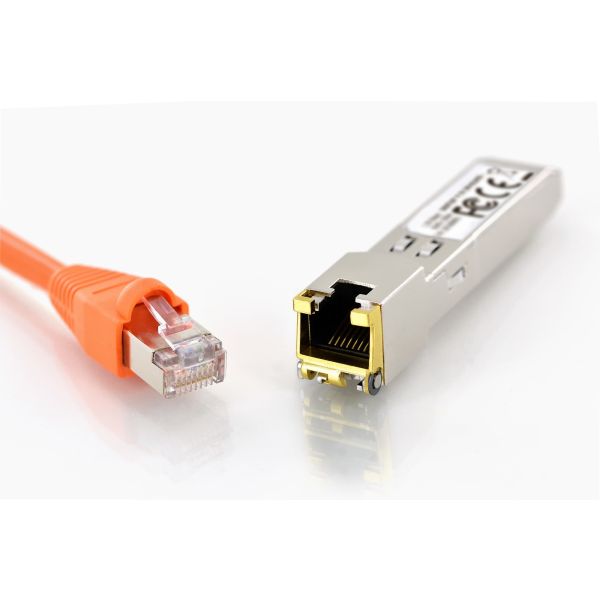

Digitus DN-81005 netwerk transceiver module Koper 1250 Mbit/s SFP

Digitus DN-81005, Koper, 1250 Mbit/s, SFP, 100 m, Gigabit Ethernet, IEEE 802.3z

Ruim op voorraad

Fabrikant Digitus
MPN DN-81005
EAN 4016032389484
€ 33,00 excl. BTW

Digitus DN-81005 netwerk transceiver module Koper 1250 Mbit/s SFP

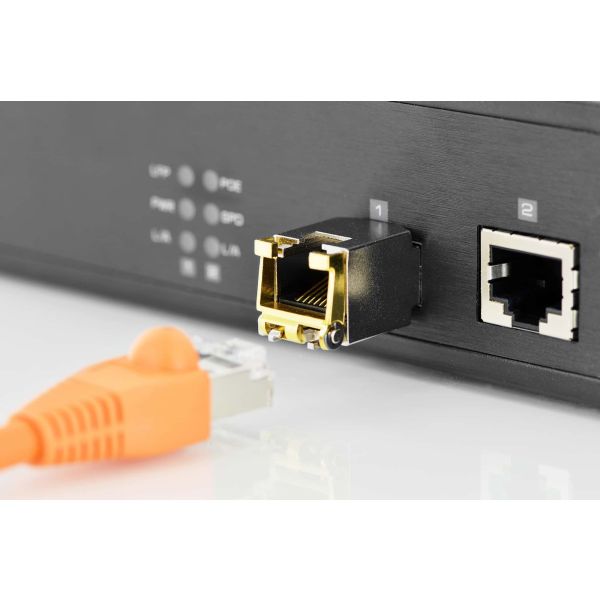

The plug and play extension for your network switch

- Extend your network switch with free SFP ports around additional RJ-45 connections
- Compatible with the popular network switch manufacturers
- Hot pluggable - installation possible while in operation
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. The module offers a perfect opportunity for you to extend your Gigabit network switch with a free SFP Uplink Port around an additional RJ45 connection. Thanks to the hot-plug capability, you can install the module without any interruption to the network traffic or restart of the device. In addition, conformity with the MSA (Multi Source Agreement) standard provides compatibility with the current network switch manufacturers.
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
  • Up to 1.25 Gbps bidirectional maximum data rate
  • Compliant to IEEE 802.3z Gigabit Standard
  • High quality and excellent reliability
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable - installation possible while in operation
  • Auto MDI/MDI-X
  • Connection: 1x RJ45, CAT 5
  • Distance: up to 100 m
  • Operating temperature: 0 °C ~ 70 °C

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Koper
Maximale overdrachtssnelheid van gegevens*
1250 Mbit/s
Soort aansluiting*
SFP
Maximaal bereik
100 m
Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Netwerkstandaard
IEEE 802.3z
Bekabelingstechnologie
1000BASE-T
Auto MDI/MDI-X
Ja
Digital Diagnostics Monitoring (DDM)
Nee
Aantal Ethernet LAN (RJ-45)-poorten
1

Kenmerken

Kleur van het product
Metallic
Plug and play
Ja
Hot-plug ondersteuning
Ja
Gemakkelijk te installeren
Ja
Land van herkomst
China

Kenmerken

Merkcompatibiliteit
MSA Compliant

Gewicht en omvang

Breedte
15 mm
Diepte
15 mm
Hoogte
70 mm
Gewicht
200 g

Verpakking

Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
93 mm
Diepte verpakking
32 mm
Hoogte verpakking
120 mm
Verpakkingsvolume
357,12 cm³
Gewicht verpakking
58,333 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
