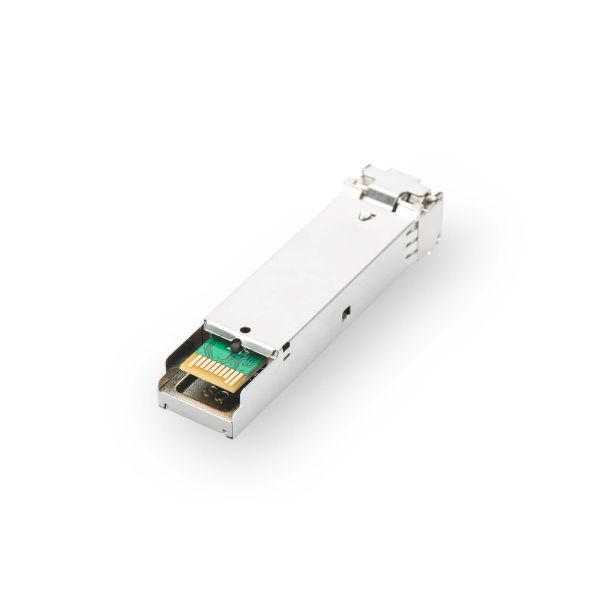

Digitus DN-81205 netwerk transceiver module Vezel-optiek 10000 Mbit/s SFP+

Digitus DN-81205, Vezel-optiek, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m

Nog slechts 6 beschikbaar

Fabrikant Digitus
MPN DN-81205
EAN 4016032424314
€ 54,00 excl. BTW

Digitus DN-81205 netwerk transceiver module Vezel-optiek 10000 Mbit/s SFP+

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 10km at a maximum data rate of 10Gbps
- Bidirectional WDM Module - Only one fiber is needed
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
  • SFP+ (Small Form Factor Pluggable) module
  • Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
  • Connector: 1x LC Simplex
  • Bidirectional WDM Module - Only one fiber is needed
  • Wavelength: TX 1330 /RX 1270, Singlemode
  • 10Gbps Maximum Data Rate
  • Transmission power: minimum -5 dBm, maximum 0.5 dBm
  • Sensitivity Receiving Power: Minimum -13 dBm
  • For a Distance of up to 10km
  • Safe fast-locking mechanism
  • Supports DDM (Digital Diagnostic Monitoring)
  • High quality and excellent reliability
  • Compliant to IEEE 802.3ae 10 Gigabit Standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • 3.3V power supply
  • Suitable for 09/125µm Singlemode Fiber Cables
  • Operating temperature: 0 °C ~ 70 °C

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Soort aansluiting*
SFP+
Single-mode glasvezelkabel (SMF) ondersteund
Ja
Vezel-optische connector
LC
Vezelkabel diameters ondersteund
9/125 µm
Maximaal bereik
10000 m
Tx-golflengte (max)
1270 nm
Rx-golflengte (max)
1330 nm
Ethernet interface type
10 Gigabit Ethernet
Netwerkstandaard
IEEE 802.3ae
Digital Diagnostics Monitoring (DDM)
Ja
Fibre channel-poorten
1

Kenmerken

Kleur van het product
Metallic
Plug and play
Ja

Kenmerken

Hot-plug ondersteuning
Ja
Gemakkelijk te installeren
Ja
Land van herkomst
China
Merkcompatibiliteit
Cisco

Verpakking

Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
93 mm
Diepte verpakking
117 mm
Verpakkingsvolume
348,192 cm³
Gewicht verpakking
58,333 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010

Overige specificaties

Snoerlengte
10000 m
