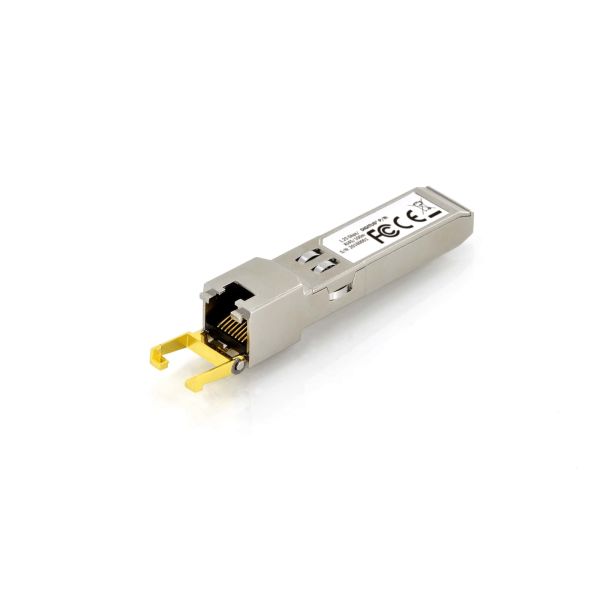

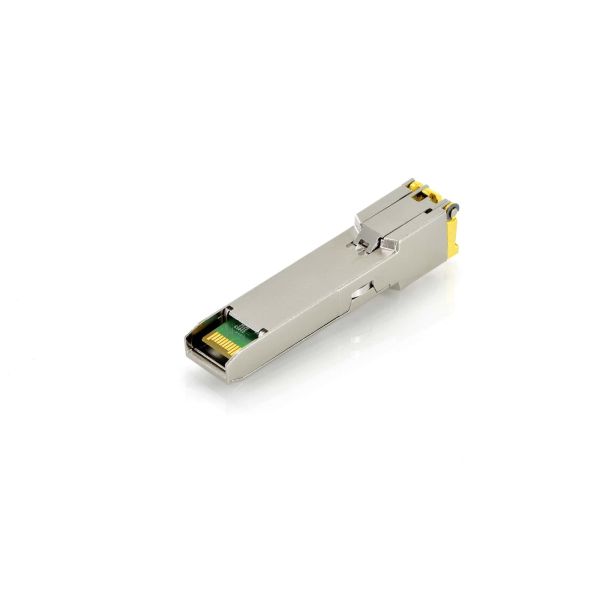

Digitus DN-81210 netwerk transceiver module Koper 10000 Mbit/s SFP

Digitus DN-81210, Koper, 10000 Mbit/s, SFP, 100 m, 10 Gigabit Ethernet, China

Ruim op voorraad

Fabrikant Digitus
MPN DN-81210
EAN 4016032459620
€ 99,00 excl. BTW

Digitus DN-81210 netwerk transceiver module Koper 10000 Mbit/s SFP

10 Gigabit Ethernet over CAT 6A cable

- Compatible with IEEE 802.3 standard and most common switch vendors
- Hot-pluggable SFP footprint
- Distance: Up to 100 m (1 Gbit)
- High operating temperature: 0°C to 65°C
- Easy plug-and-play installation

The DIGITUS® 10G Mini GBIC SFP transceiver modules offer the highest quality and reliability. The modules offer a perfect opportunity for you to extend your Gigabit network switch with an additional RJ45 connection. Thanks to the hot-plug capability, you can install the module without any interruption of the network traffic or restart of the device. In addition, conformity with the MSA (Multi Source Agreement) standard provides compatibility with the current network switch manufacturers. It is compatible with the 10GBase-T / 5GBase-T /2.5GBase-T / 1000Base-T standards as specified in IEEE 802.3.
  • Data transfer rate: 10 Gigabit max. (IEEE802.3 compatible)
  • Compatible standards: 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T
  • Cable length: 1000Base-T: 100 m, 5 / 2.5GBase-T: 50 m, 10GBase-T: 30 m
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable - installation possible while in operation
  • Auto MDI/MDI-X
  • Operating temperature: 0°C to 65°C
  • Storage temperature: -40°C to 85°C
  • Serial communication protocol: I²C clock rate: 200 Hz
  • Compatibel with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Koper
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Soort aansluiting*
SFP
Maximaal bereik
100 m
Ethernet interface type
10 Gigabit Ethernet
Auto MDI/MDI-X
Ja
Digital Diagnostics Monitoring (DDM)
Nee

Kenmerken

Plug and play
Ja
Hot-plug ondersteuning
Ja
Land van herkomst
China
Merkcompatibiliteit
MSA Compliant

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 65 °C
Temperatuur bij opslag
-40 - 85 °C

Verpakking

Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
115 mm
Diepte verpakking
30 mm
Verpakkingsvolume
310,5 cm³
Gewicht verpakking
40 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
