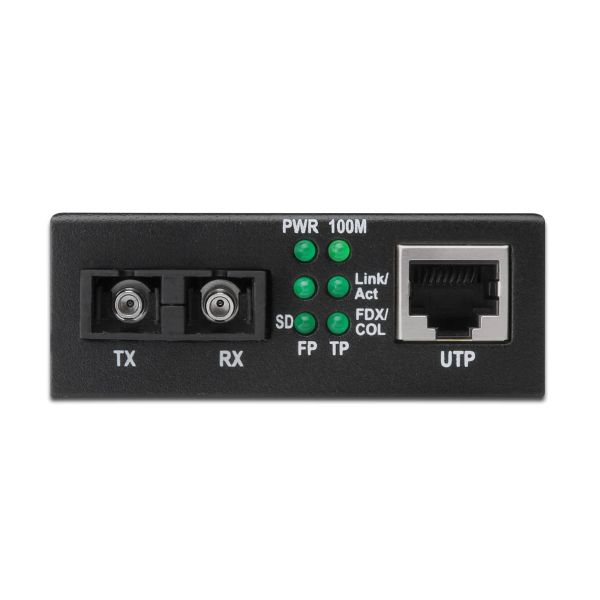

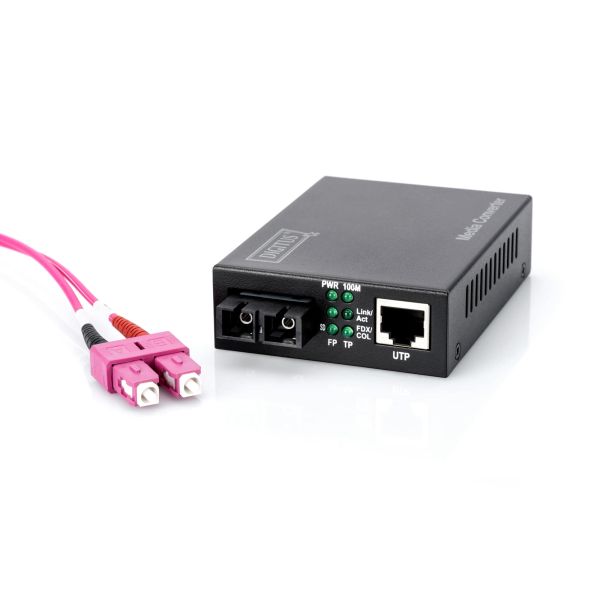

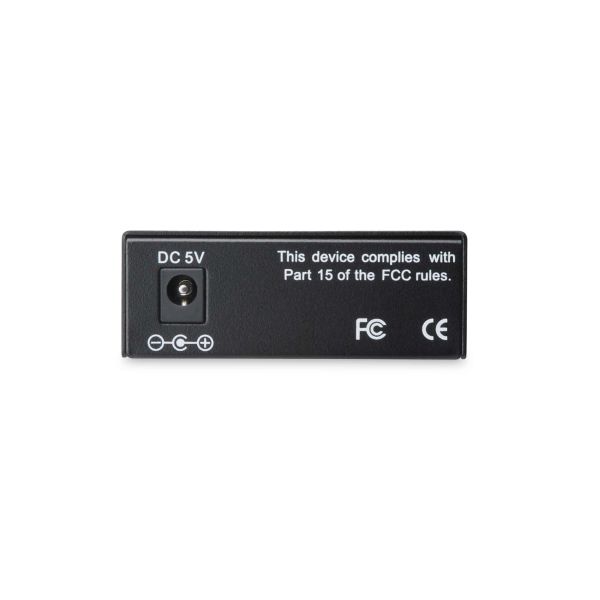

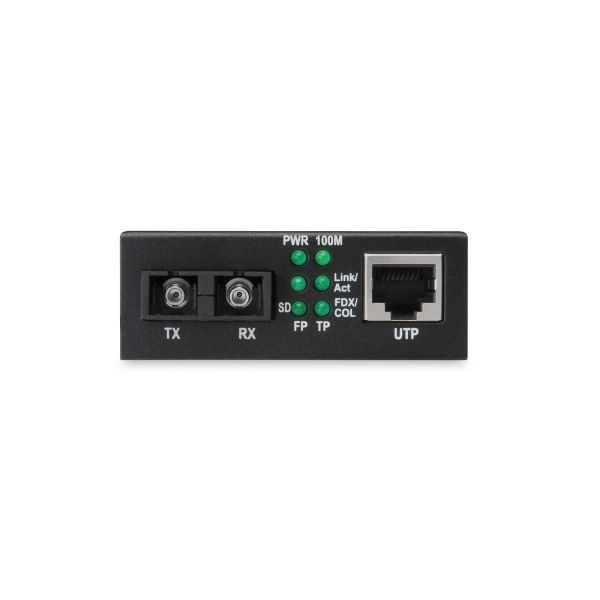

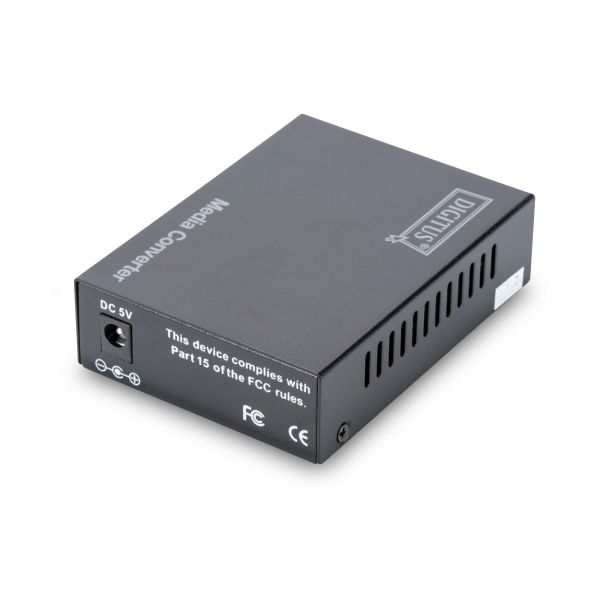

Digitus Fast Ethernet, RJ-45/SC netwerk media converter 100 Mbit/s 1310 nm Multimode Zwart

Digitus Fast Ethernet, RJ-45/SC, 100 Mbit/s, 100Base-TX, 100Base-FX, IEEE 802.3, IEEE 802.3u, Fast Ethernet, 10,100 Mbit/s

Ruim op voorraad

Fabrikant Digitus
MPN DN-82020-1
EAN 4016032293095
€ 58,00 excl. BTW

Digitus Fast Ethernet, RJ-45/SC netwerk media converter 100 Mbit/s 1310 nm Multimode Zwart

The perfect converter solution for various fiber media

- Distance up to 2km
- Sends data in high quality and additionally provides excellent reliability
- Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standards

The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.
  • Transforms wire based network media to fiber optic
  • High quality and excellent reliability
  • 10/100Base-TX to 100Base-FX
  • Connectors: 1x RJ45, 1x SC duplex
  • Distance: up to 2km
  • Wavelength: 1310nm
  • Multimode dual fiber
  • Automatic cable detection - auto MDI / MDI-X function
  • Auto-negotiation of full- and half-duplex
  • Diagnostic and monitoring LEDs for the status of power, link and act of the ports
  • Link Fault Pass Through (LFP) function for easier network maintenance
  • Suitable for 50/125µm and 62.5/125µm Fiber Cables
  • Transmission power: minimum -22 dBm, maximum -12 dBm
  • Sensitivity receiving power: minimum -30 dBm
  • Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
  • 128kB data buffer
  • Operating temperature: 0 to 55°C
  • Dimensions (L x W x H): 95mm x 70mm x 26mm
  • Weight: 200g
  • Standalone Converter with external power supply
  • Input Supply Voltage: 5V DC
  • Max. Current: 800mA
  • Power Consumption: 2.5W

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Netwerkstandaard
IEEE 802.3, IEEE 802.3u
Ethernet interface type
Fast Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Auto MDI/MDI-X
Ja
Duplex systeem
Volledig, Half

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SC
Aansluiting voor netstroomadapter
Ja

Prestatie

Maximaal bereik*
2000 m
Golflengte*
1310 nm
Draad modus structuur
Multimode
Vezelkabel diameters ondersteund
50/125,62.5/125 µm
Tx vermogen (min)
-22 dBmW
Tx vermogen (max)
-12 dBmW
Rx vermogen (min)
-30 dBmW
Buffergrootte
128 KB

Design

Intern*
Nee
LED-indicatoren
Activiteit, Link, Status
Kleur van het product
Zwart

Design

Land van herkomst
China
Certificering
FCC, CE.

Energie

Ingangsspanning
5 V
Stroom
0.8 A
Stroomverbruik (typisch)
2,5 W
Power over Ethernet (PoE)
Nee
Externe adapter
Ja

Gewicht en omvang

Breedte
95 mm
Diepte
70 mm
Hoogte
26 mm
Gewicht
200 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C

Verpakking

Breedte verpakking
216 mm
Diepte verpakking
60 mm
Verpakkingsvolume
2086,56 cm³
Gewicht verpakking
485 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Transmissie afstand (max)
2 km
