Digitus DN-82121-1 netwerk media converter 1000 Mbit/s 1310 nm Single-mode Zwart

Digitus DN-82121-1, 1000 Mbit/s, 1000Base-TX, 100Base-TX, 1000Base-LX, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s

Ruim op voorraad

Fabrikant Digitus
MPN DN-82121-1
EAN 4016032293132
€ 67,00 excl. BTW

Digitus DN-82121-1 netwerk media converter 1000 Mbit/s 1310 nm Single-mode Zwart

The perfect converter solution for various fiber media

- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range

The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation.
  • Transforms wire based network media to fiber optic
  • High quality and excellent reliability
  • 10/100/1000Base-TX to 1000Base-LX

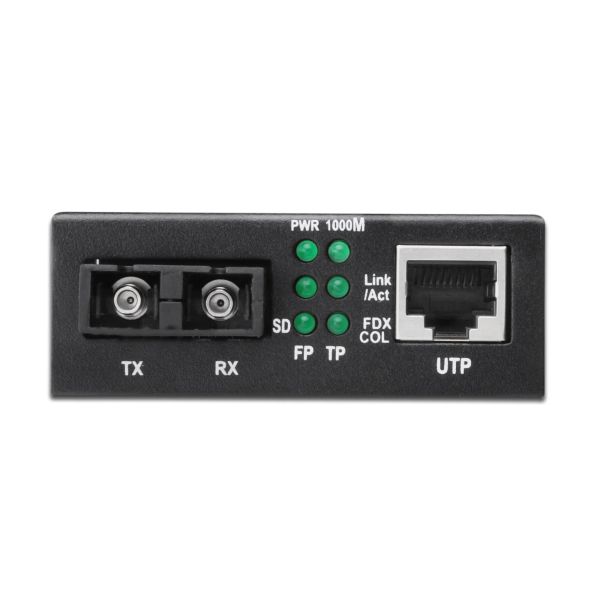

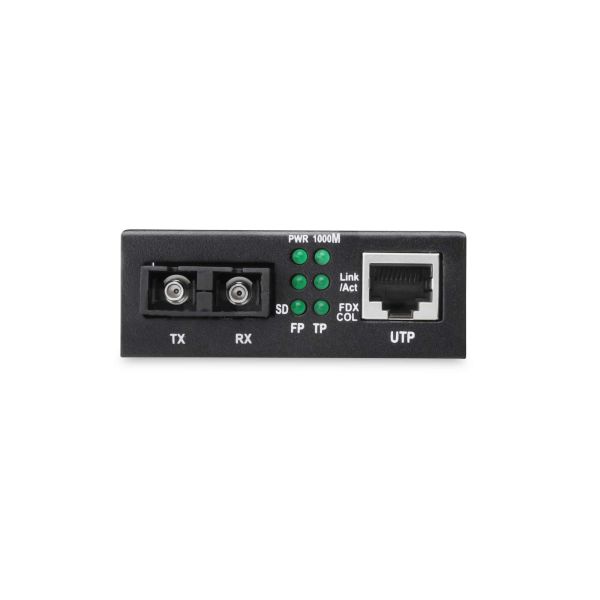

  • Connectors: 1x RJ45, 1x SC duplex
  • Distance up to 20km
  • Wavelength: 1310nm
  • Singlemode Dual Fiber
  • Automatic cable detection - auto MDI / MDI-X function
  • Auto-negotiation of full- and half-duplex
  • Diagnostic and monitoring LEDs for the status of power, link and act of the ports
  • Suitable for 9/125µm Fiber Cables
  • Transmission Power: Minimum -12 dBm, Maximum -6 dBm
  • Sensitivity Receiving Power: Minimum -21 dBm
  • Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
  • 2MB Data Buffer
  • Operating Temperature: 0 to 60°C
  • Dimensions (L x W x H): 95mm x 70mm x 26mm
  • Weight: 200g

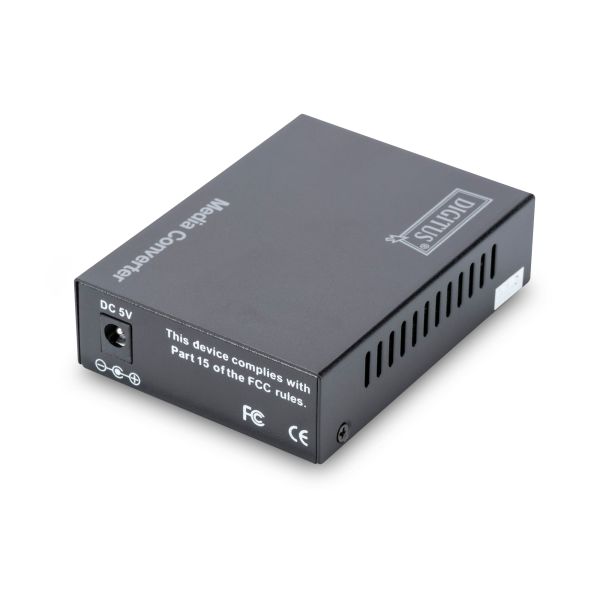

  • Standalone Converter with external power supply

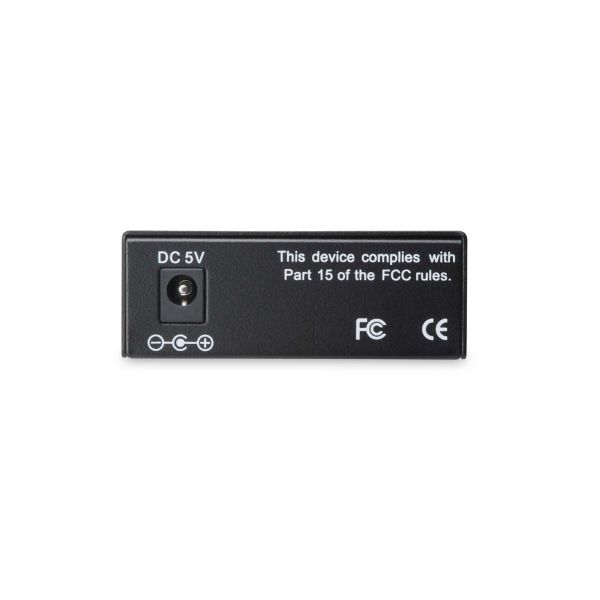

  • Input Supply Voltage: 5V DC

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Converter input interface
1000Base-TX, 100Base-TX
Converter output interface
1000Base-LX
Netwerkstandaard
IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto MDI/MDI-X
Ja
Duplex systeem
Volledig, Half

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SC
Aansluiting voor netstroomadapter
Ja

Prestatie

Maximaal bereik*
20000 m
Golflengte*
1310 nm
Draad modus structuur
Single-mode
Vezelkabel diameters ondersteund
9/125 µm
Tx vermogen (min)
-12 dBmW
Tx vermogen (max)
-6 dBmW
Rx vermogen (min)
-21 dBmW
Buffergrootte
2048 KB

Design

Intern*
Nee
LED-indicatoren
Activiteit, Link, Status

Design

Kleur van het product
Zwart
Land van herkomst
China
Certificering
FCC, CE.

Energie

Ingangsspanning
5 V
Power over Ethernet (PoE)
Nee
Externe adapter
Ja

Gewicht en omvang

Breedte
70 mm
Diepte
95 mm
Hoogte
26 mm
Gewicht
200 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 60 °C

Verpakking

Breedte verpakking
216 mm
Diepte verpakking
60 mm
Verpakkingsvolume
2086,56 cm³
Gewicht verpakking
450 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Transmissie afstand (max)
10 km
