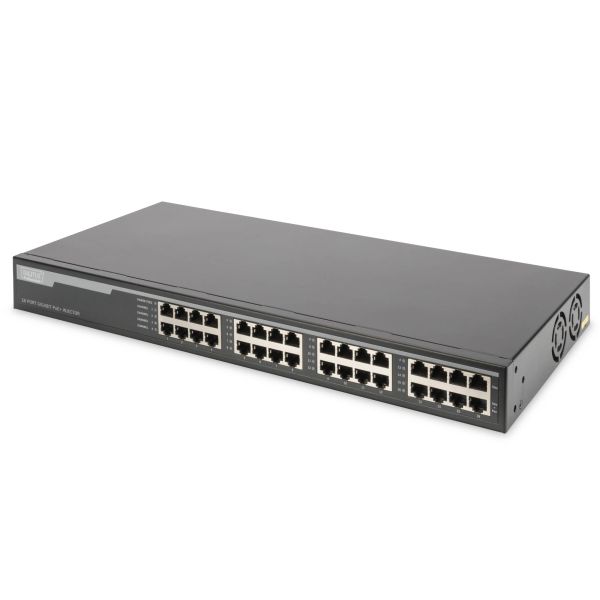

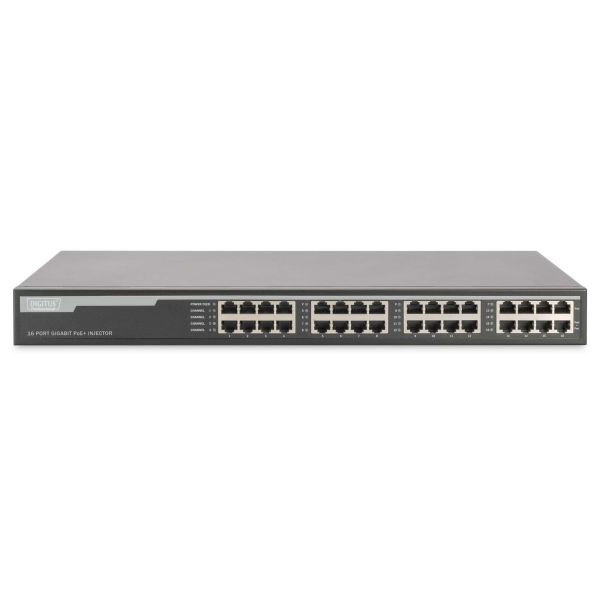

Digitus DN-95116 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs

Digitus DN-95116, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

Fabrikant Digitus
MPN DN-95116
EAN 4016032430377
€ 211,00 excl. BTW

Digitus DN-95116 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs

Minimization of the cabling costs for PoE-capable devices

- 16 gigabit ports with PoE+ support
- 250 watt performance with up to 30 watts per port
- Compatible with the IEEE802.3af and IEEE802.3at standards
- Automatic surge protection
- Supports bandwidth up to 10Gbps

The DIGITUS® DN-95116 is an 16 port gigabit PoE+ mid-span hub (PoE injector). It offers 16 input ports for data and 16 output ports which make data and PoE available. Each PoE-port supports connected devices in accordance with the IEEE802.3af and IEEE802.3at PoE standard with 15.4 watts and/or 30 watts, such as PoE access points, PoE IP-telephones or PoE IP cameras, for example. The switch makes available a maximum budget of 250 watts for all ports and maximum budget of 30 watts per port.
  • 32 x 10/100/1000Mbps/2.5G/10G (16 x input data, 16 x output data+PoE)
  • Compatible with the IEEE802.3af and IEEE802.3at standards
  • PoE power supply via PIN 1.2(V-) and PIN 3.6(V+)
  • Maximum total output of 250 watts
  • Compatible with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
  • Automatic cable recognition - Auto-MDI-/ MDI-X function
  • Auto recognition of full and half duplex
  • Power supply: 100V AC ~ 240V AC
  • Operating temperature range: -10 °C to +45 °C
  • Storage temperature: -20°C - 70°C
  • Dimensions (mm): 440(L) x 200(W) x 45(H)
  • MTBF: 100,000 hours

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.3af
10G support*
Nee
Full duplex
Ja
Auto MDI/MDI-X
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Grijs
LED-indicatoren
Stroom
Aan/uitschakelaar
Ja
Land van herkomst
China

Prestatie

Plug and play
Ja
Mean time between failures (MTBF)
100000 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
3 A
Vermogensverbruik (max)
250 W
Spanningsbeveiliging
Ja
Stroomspanning bescherming
Overbelasting, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16

Power over Ethernet (PoE)

Voltagebereik Power over Ethernet (PoE)
1,2 - 3,6 V
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
250 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 45 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent

Gewicht en omvang

Breedte
200 mm
Diepte
440 mm
Hoogte
45 mm
Gewicht
2,8 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Breedte verpakking
280 mm
Diepte verpakking
500 mm
Hoogte verpakking
100 mm
Verpakkingsvolume
14000 cm³
Gewicht verpakking
4,17 kg

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
